Robinsons Regent - Page 21

TOUGHENED GLASS ONLY 4mm Glazing Plans
REGAL
Shape J
Ref. D890
Shape K
Ref. D891

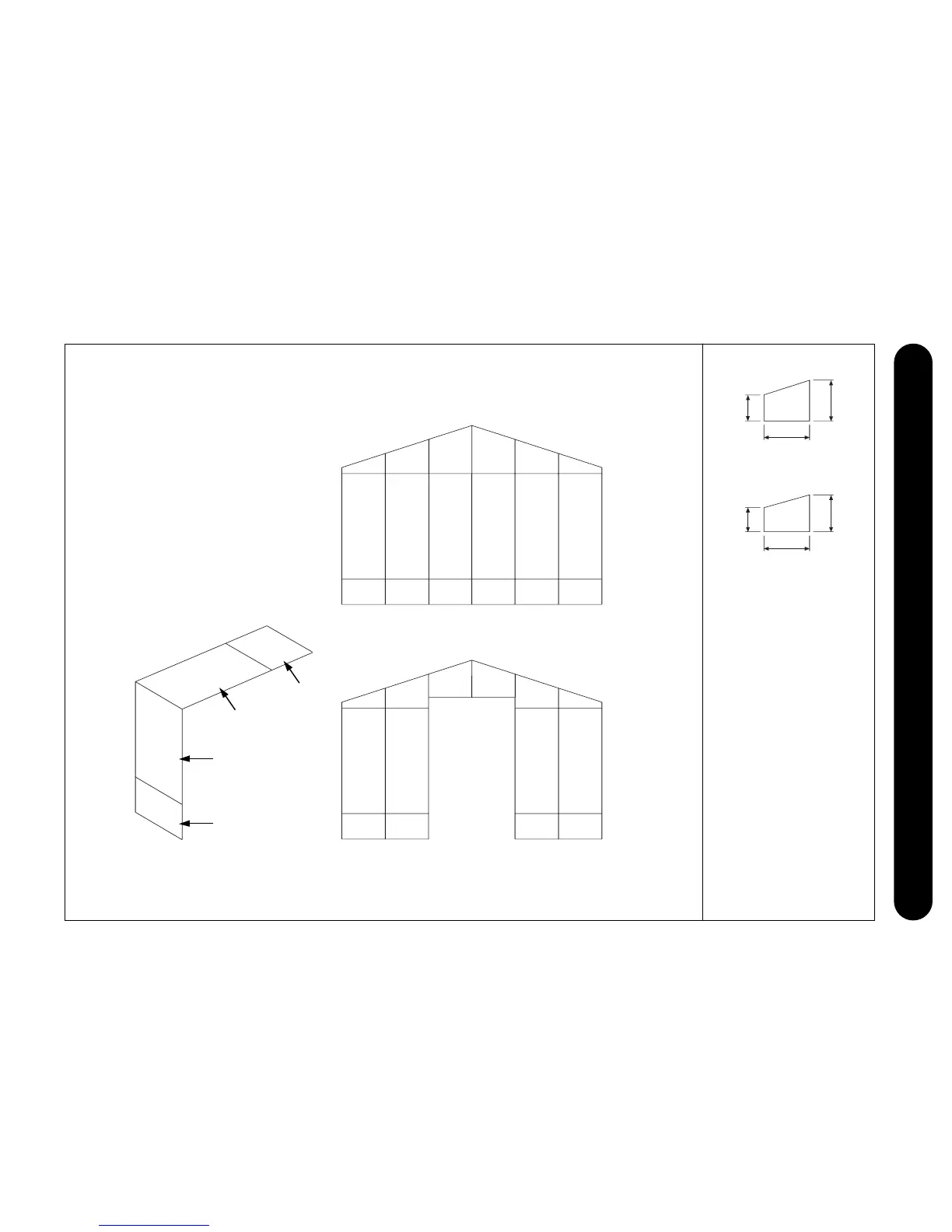

12ft Glazing plan
Plain End
Door EndSide/Roof
896
655
610
610
364
605
Measurements in mm.
Shape AShape A
610
X
1374
Shape
I
Shape
I
Shape
J
Shape
J
610 X 305
610
X
1374
610 X 305
610
X
1374
610 X 305
610
X
1374
610 X 305
610
X
1374
610 X 305
610
X
1374
610 X 305
Shape AShape A
610
X
1374
Shape
I
Shape
I
Shape
K
Shape
K
610 X 305
610
X
1374
610 X 305
610
X
1374
610 X 305
610
X
1374
610 X 305
21
TOUGHENED GLASS ONLY 4mm
610
X
1374
610 X 305
610 X 1500
610 X 610
Ref. D892
Ref. D1208
Ref. D1206
Ref. D1254
