9
Fitting the Door Frame

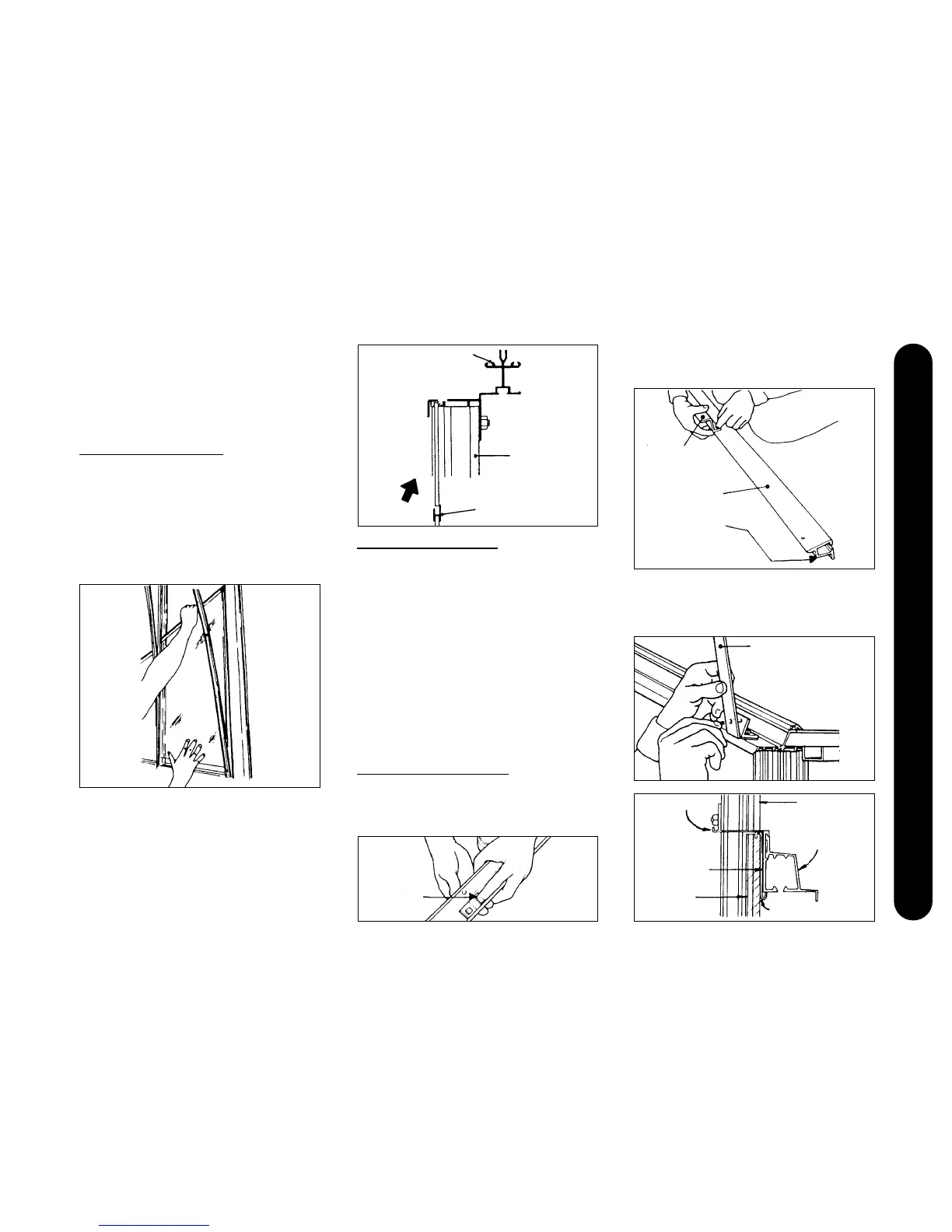

50.Secure both panes in position one side only by
screwing all self tapping screws into the bar capping.
51.Repeat instructions 48 to 50 until side glazing is
complete, finishing the side with a further corner bar
capping. Then fit the bar cap covers, repeat the whole
procedure for the other side.
GLAZING THE PLAIN END
52.Locate and roughly lay out corner bar capping and
standard capping for greenhouse ends.
NOTE: Gable end corner bar caps are
longer than the side bar caps.
53.Following established procedure, fit all 610 x 305
panels and all glass panes up to (but not including) the
top angled sheets and secure as work proceeds. (See
illustration, next column)
54.With reference to the glazing plan, identify the top
angled pane and fit by pushing up into the roof end
bar recess, and align bottom edge with separator strip
allowing glass to drop in. Secure all bar capping, which
on ends will tuck up under roof end bars.
GLAZING THE DOOR END
55. The Royale and Rosette models are both supplied with
double doors. The Regent differs having a single door,
the fitting procedures are similar, the main difference
being a strike plate for the single door (No. 70, ID Chart).
Fit the strike plate temporarily at this stage half way up
the glazing bar that the door will slide and lock onto.
56.With reference to the glazing plan for your model,
follow the established procedure to glaze the door end,
using the doorbar caps and covers (1883mm) either
side of the door aperture. Fix onto the top of these the
small ‘S’ shaped clips (No. 26, ID Chart) as shown.
NOTE: No glass can be fitted above the
door opening until the door frame has
been fitted.
FITTING THE DOOR FRAME
57.Identify the inner door track (No. 31, ID Chart) and
centre door stop (Royale and Rosette models only)
and, using short bolts, secure the stop to the track
using the holes provided.
58.On the ground, assemble the outer door track (No.
33, ID Chart) and the doorway header (No.34, ID Chart)
with inner track using long bolts.
59.Identify the track support cleat (No. 35, ID Chart) and
the track support (supplied but NOT required on
Rosette and Regal) (No. 36, ID Chart) and attach to
roof end glazing bars using long bolts as shown.
Door post
bar cap
Doorway header
Door track ‘S’ clip
Inner track
Outer track
Door post
glazing bar
Doorway
header
Track support to be
flush with outside
face of roof end
glazing bar
Inner door track
clipped onto
outer door track
End glazing bar
Separator strip
Top
PUSH UP
Roof end bar
