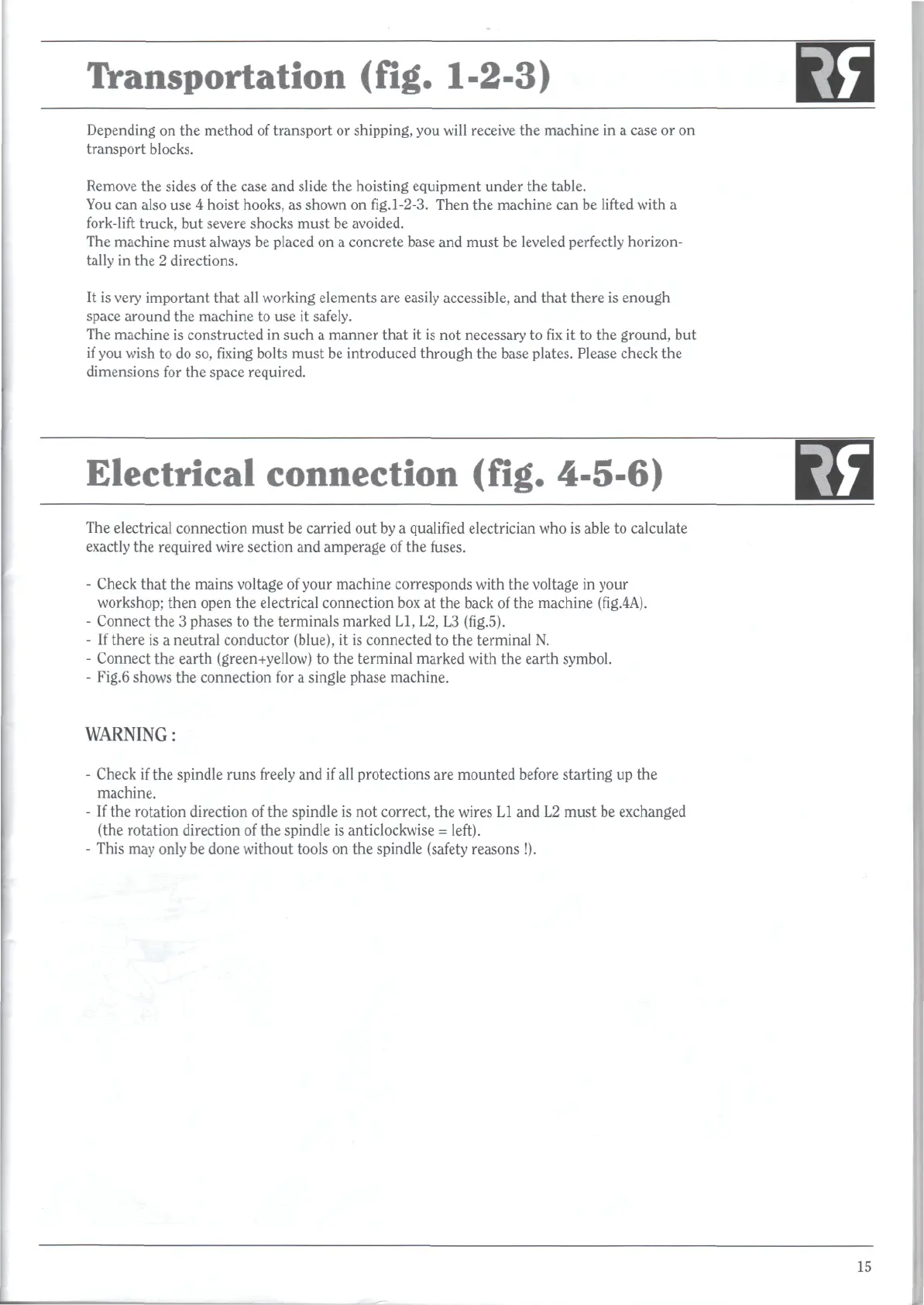

Transportation (fig. 1-2-3)
Depending on the method of transport or shipping, you will receive the machine in a case or on
transport blocks.
Remove the sides of the case and slide the hoisting equipment under the table.
You can also use 4 hoist hooks, as shown on fig.1-2-3. Then the machine can be lifted with a
fork-lift truck, but severe shocks must be avoided.
The machine must always be placed on a concrete base and must be leveled perfectly horizon-
tally in the 2 directions.
It is very important that all working elements are easily accessible, and that there is enough
space around the machine to use it safely.
The machine is constructed in such a manner that it is not necessary to fix it to the ground, but
if you wish to do so, fixing bolts must be introduced through the base plates. Please check the
dimensions for the space required.
Electrical connection (fig. 4-5-6)
The electrical connection must be carried out by a qualified electrician who is able to calculate
exactly the required wire section and amperage of the fuses.
- Check that the mains voltage of your machine corresponds with the voltage in your
workshop; then open the electrical connection box at the back of the machine (fig.4A).
- Connect the 3 phases to the terminals marked LI, L2, L3 (fig.5).
- If there is a neutral conductor (blue), it is connected to the terminal N.
- Connect the earth (green+yellow) to the terminal marked with the earth symbol.
- Fig.6 shows the connection for a single phase machine.
WARNING:
- Check if the spindle runs freely and if all protections are mounted before starting up the
machine.
- If the rotation direction of the spindle is not correct, the wires LI and L2 must be exchanged
(the rotation direction of the spindle is anticlockwise = left).
- This may only be done without tools on the spindle (safety reasons !).
