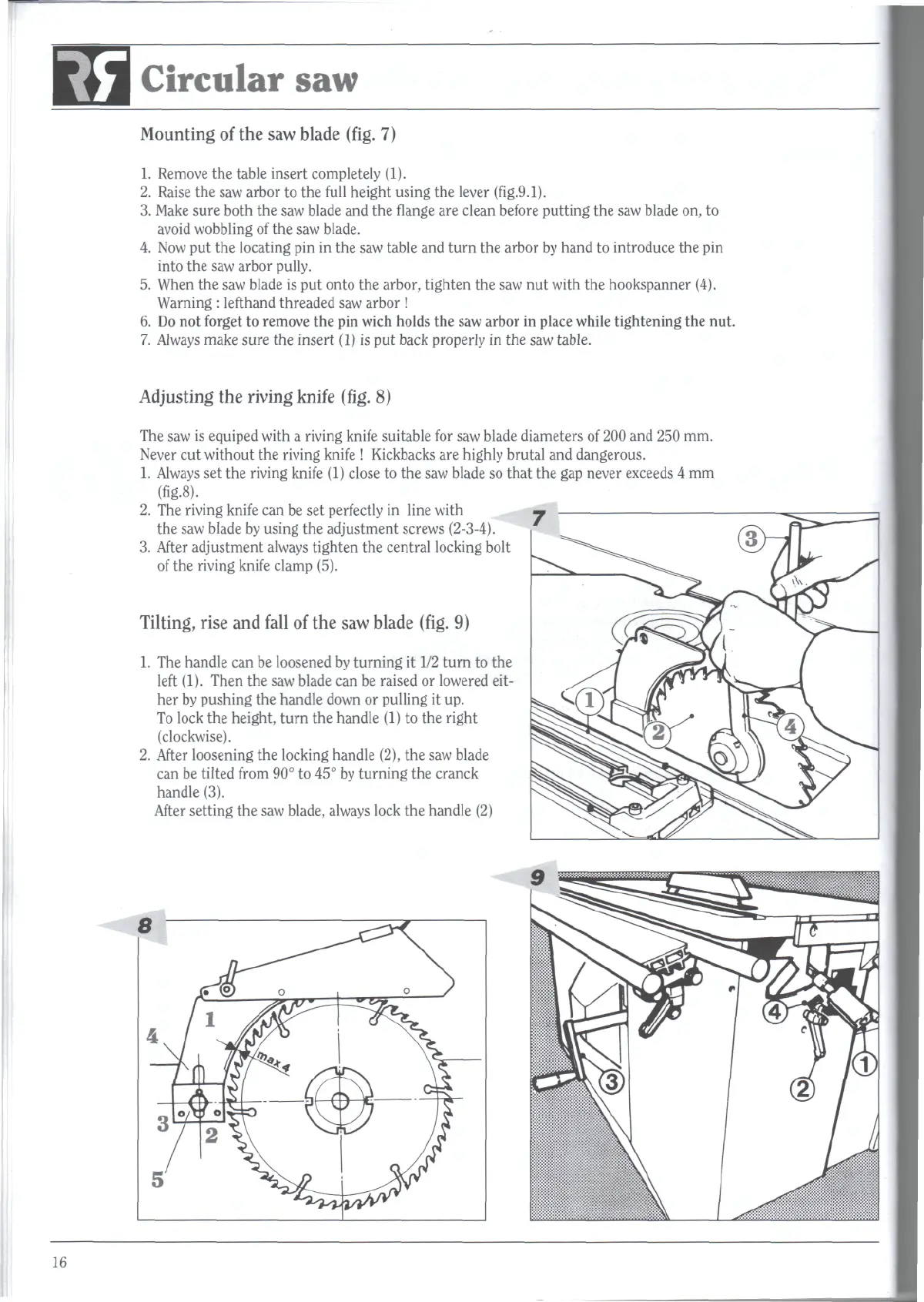

Circular saw
Mounting of the saw blade (fig. 7)
1. Remove the table insert completely (1).
2. Raise the saw arbor to the full height using the lever (fig.9.1).
3. Make sure both the saw blade and the flange are clean before putting the saw blade on, to
avoid wobbling of the saw blade.
4. Now put the locating pin in the saw table and turn the arbor by hand to introduce the pin
into the saw arbor pully.
5. When the saw blade is put onto the arbor, tighten the saw nut with the hookspanner (4).
Warning : lefthand threaded saw arbor !
6. Do not forget to remove the pin wich holds the saw arbor in place while tightening the nut.
7. Always make sure the insert (1) is put back properly in the saw table.
Adjusting the riving knife (fig. 8)
The saw is equiped with a riving knife suitable for saw blade diameters of 200 and 250 mm.
Never cut without the riving knife ! Kickbacks are highly brutal and dangerous.
1. Always set the riving knife (1) close to the saw blade so that the gap never exceeds 4 mm
(fig.8).
2. The riving knife can be set perfectly in line with -~
the saw blade by using the adjustment screws (2-3-4).
3. After adjustment always tighten the central locking bolt
of the riving knife clamp (5).
Tilting, rise and fall of the saw blade (fig. 9)
1. The handle can be loosened by turning it 1/2 turn to the
left (1). Then the saw blade can be raised or lowered eit-
her by pushing the handle down or pulling it up.
To lock the height, turn the handle (1) to the right
(clockwise).
2. After loosening the locking handle (2), the saw blade
can be tilted from 90° to 45° by turning the cranck
handle (3).
After setting the saw blade, always lock the handle (2)
16
