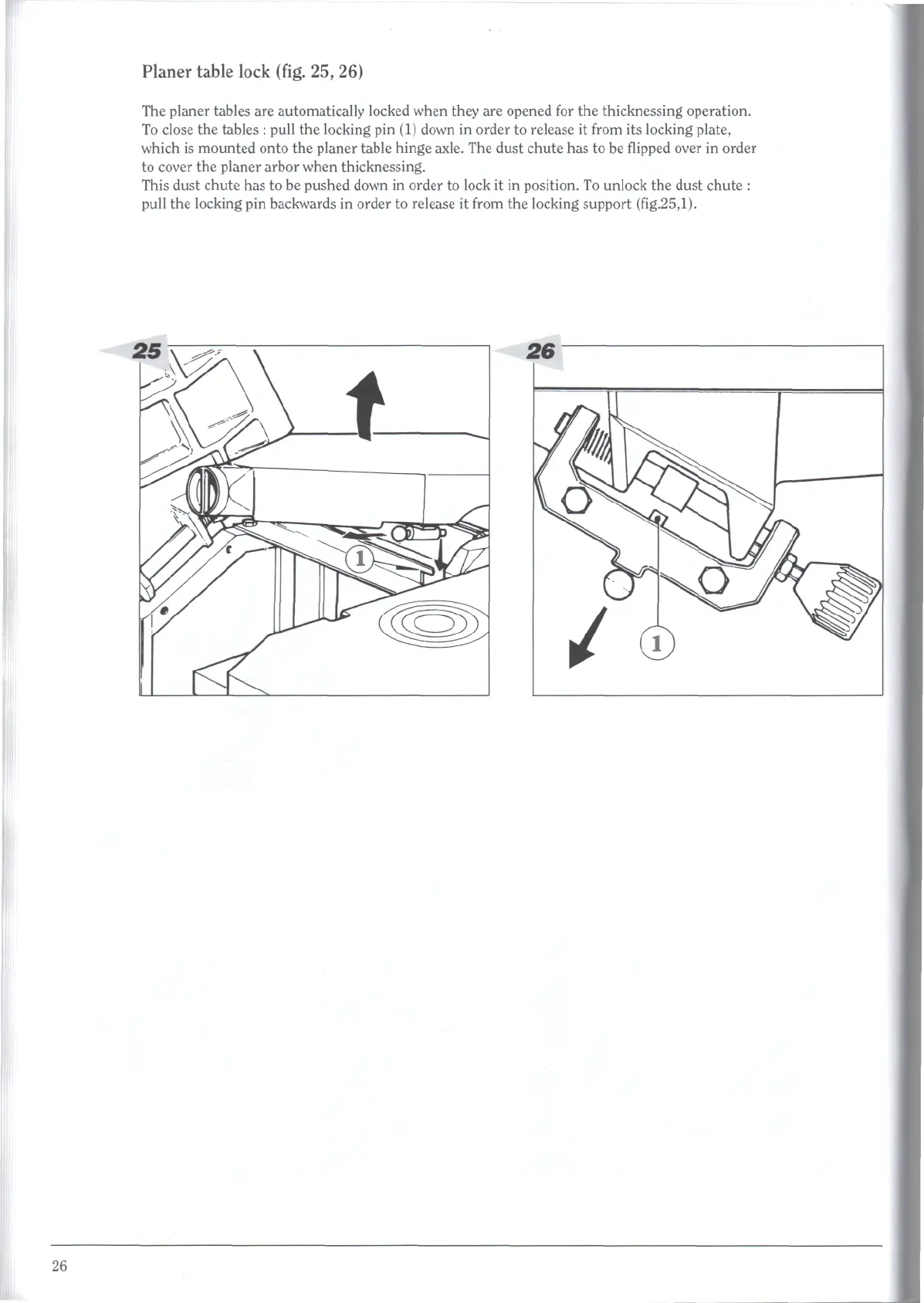

Planer table lock (fig. 25, 26)
The planer tables are automatically locked when they are opened for the thicknessing operation.
To close the tables : pull the locking pin (1) down in order to release it from its locking plate,
which is mounted onto the planer table hinge axle. The dust chute has to be flipped over in order
to cover the planer arbor when thicknessing.
This dust chute has to be pushed down in order to lock it in position. To unlock the dust chute :
pull the locking pin backwards in order to release it from the locking support (fig.25,1).
