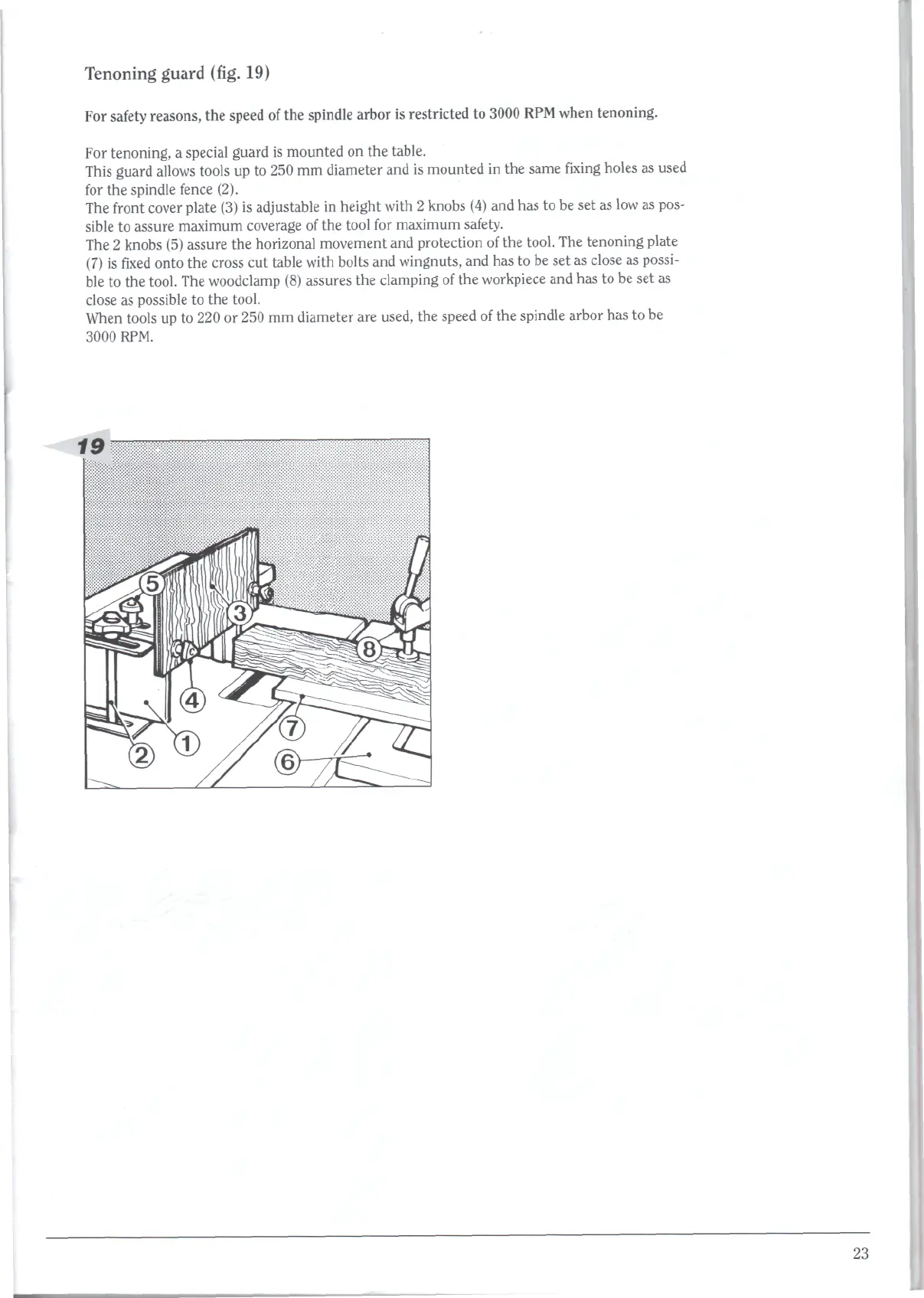

Tenoning guard (fig.
19)
For
safety
reasons,
the
speed
of the
spindle arbor
is
restricted
to
3000
RPM
when tenoning.
For
tenoning,
a
special guard
is
mounted
on the
table.
This guard allows tools
up to 250 mm
diameter
and is
mounted
in the
same
fixing
holes
as
used
for
the
spindle
fence
(2).
The
front cover plate
(3) is
adjustable
in
height
with
2
knobs
(4) and has to be set as low as
pos-
sible
to
assure maximum coverage
of the
tool
for
maximum
safety.
The
2
knobs
(5)
assure
the
horizonal movement
and
protection
of the
tool.
The
tenoning
plate
(7)
is
fixed
onto
the
cross
cut
table with bolts
and
wingnuts,
and has to be set as
close
as
possi-
ble
to the
tool.
The
woodclamp
(8)
assures
the
clamping
of the
workpiece
and has to be set as
close
as
possible
to the
tool.
When
tools
up to 220 or 250 mm
diameter
are
used,
the
speed
of the
spindle arbor
has to be
3000
RPM.
23
