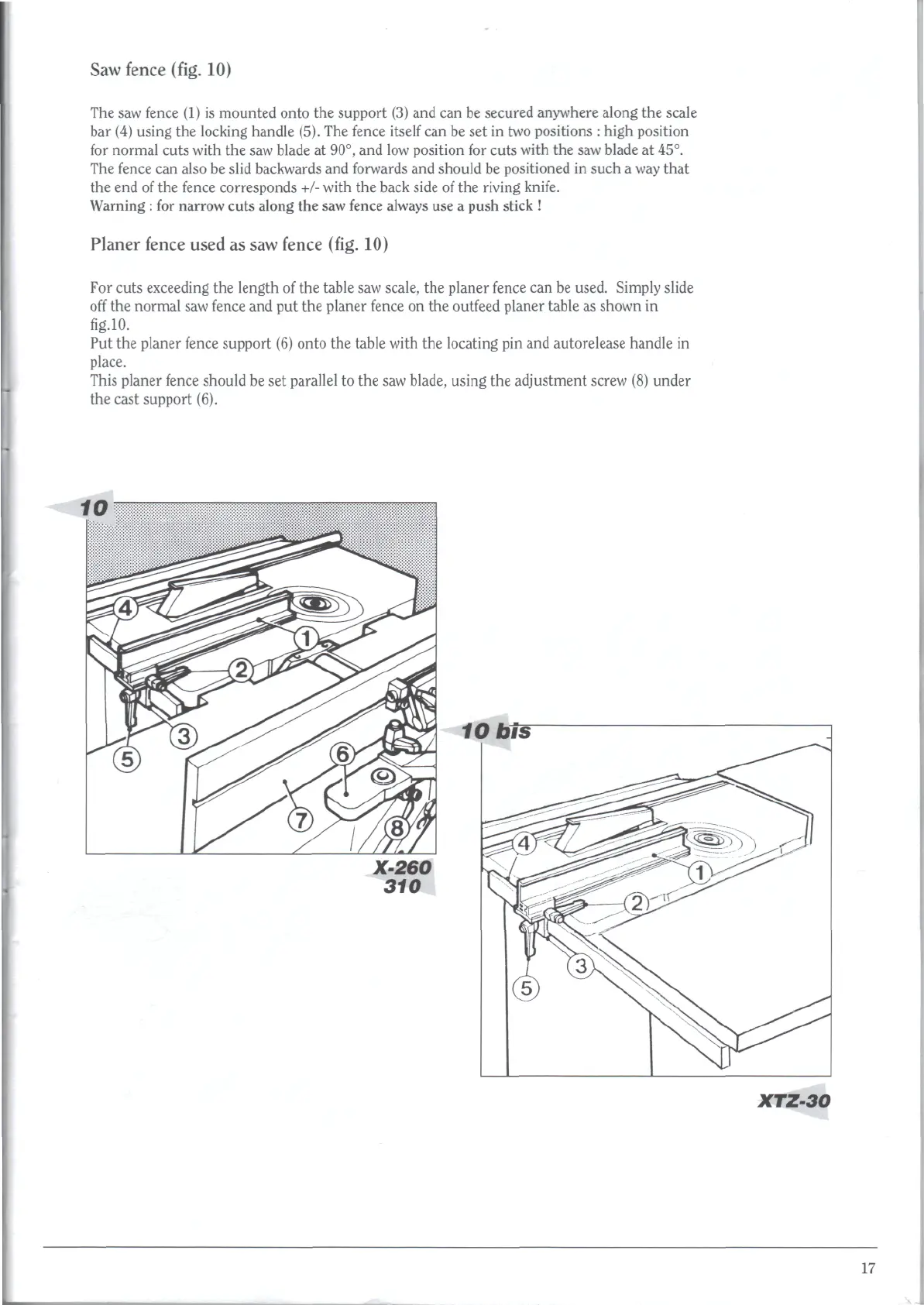

Saw fence (fig. 10)
The saw fence (1) is mounted onto the support (3) and can be secured anywhere along the scale
bar (4) using the locking handle (5). The fence itself can be set in two positions : high position
for normal cuts with the saw blade at 90°, and low position for cuts with the saw blade at 45°.
The fence can also be slid backwards and forwards and should be positioned in such a way that
the end of the fence corresponds +/- with the back side of the riving knife.
Warning : for narrow cuts along the saw fence always use a push stick !
Planer fence used as saw fence (fig. 10)
For cuts exceeding the length of the table saw scale, the planer fence can be used. Simply slide
off the normal saw fence and put the planer fence on the outfeed planer table as shown in
fig.10.
Put the planer fence support (6) onto the table with the locating pin and autorelease handle in
place.
This planer fence should be set parallel to the saw blade, using the adjustment screw (8) under
the cast support (6).
