21

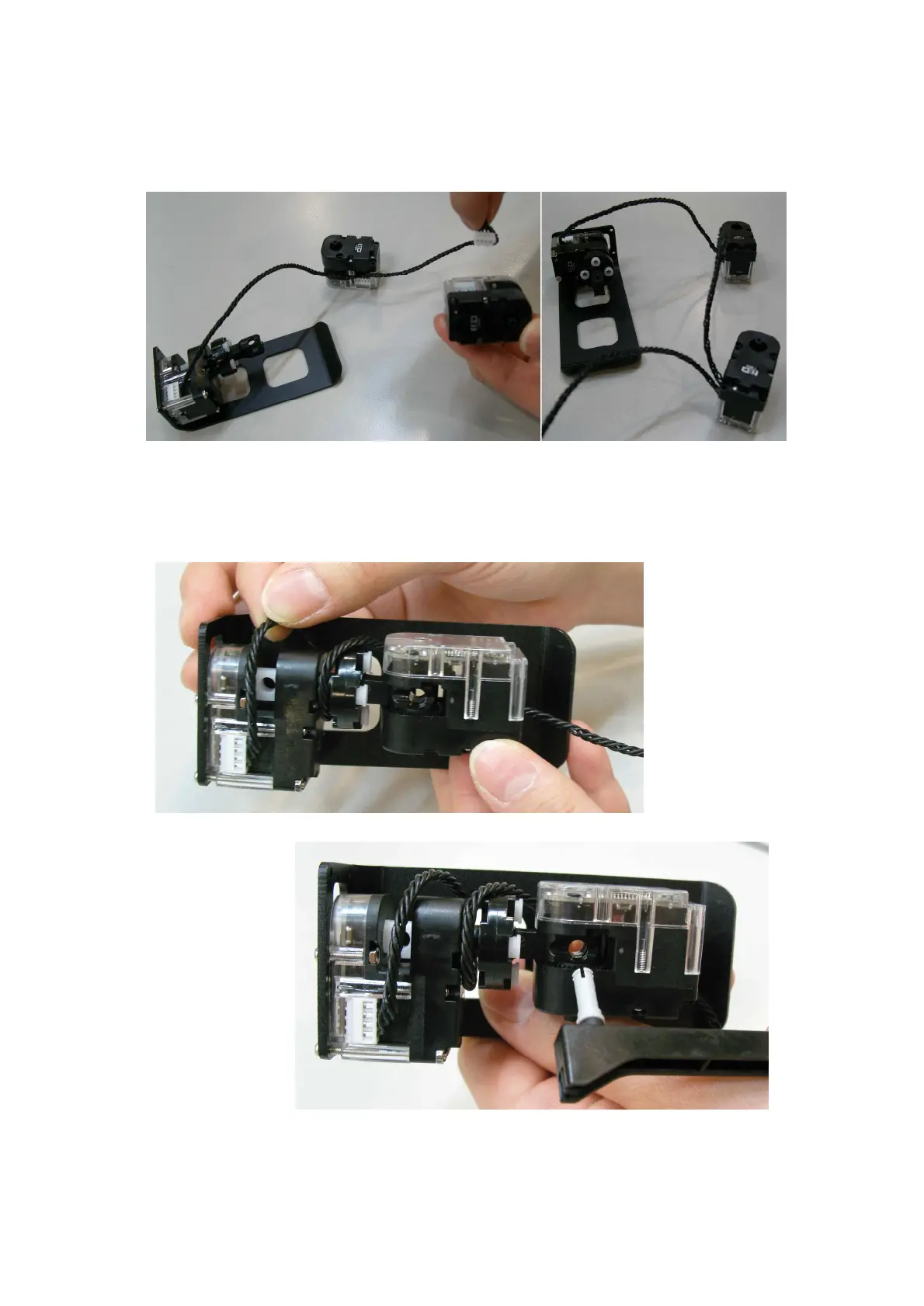

STEP4. Connect W Cable (that is already connected with ID09) with smart servo ID08 and ID07.
STEP5. Connect ID09 and ID08 by using “3s rivet”. Rotate W Cable one time and fix it.
