22

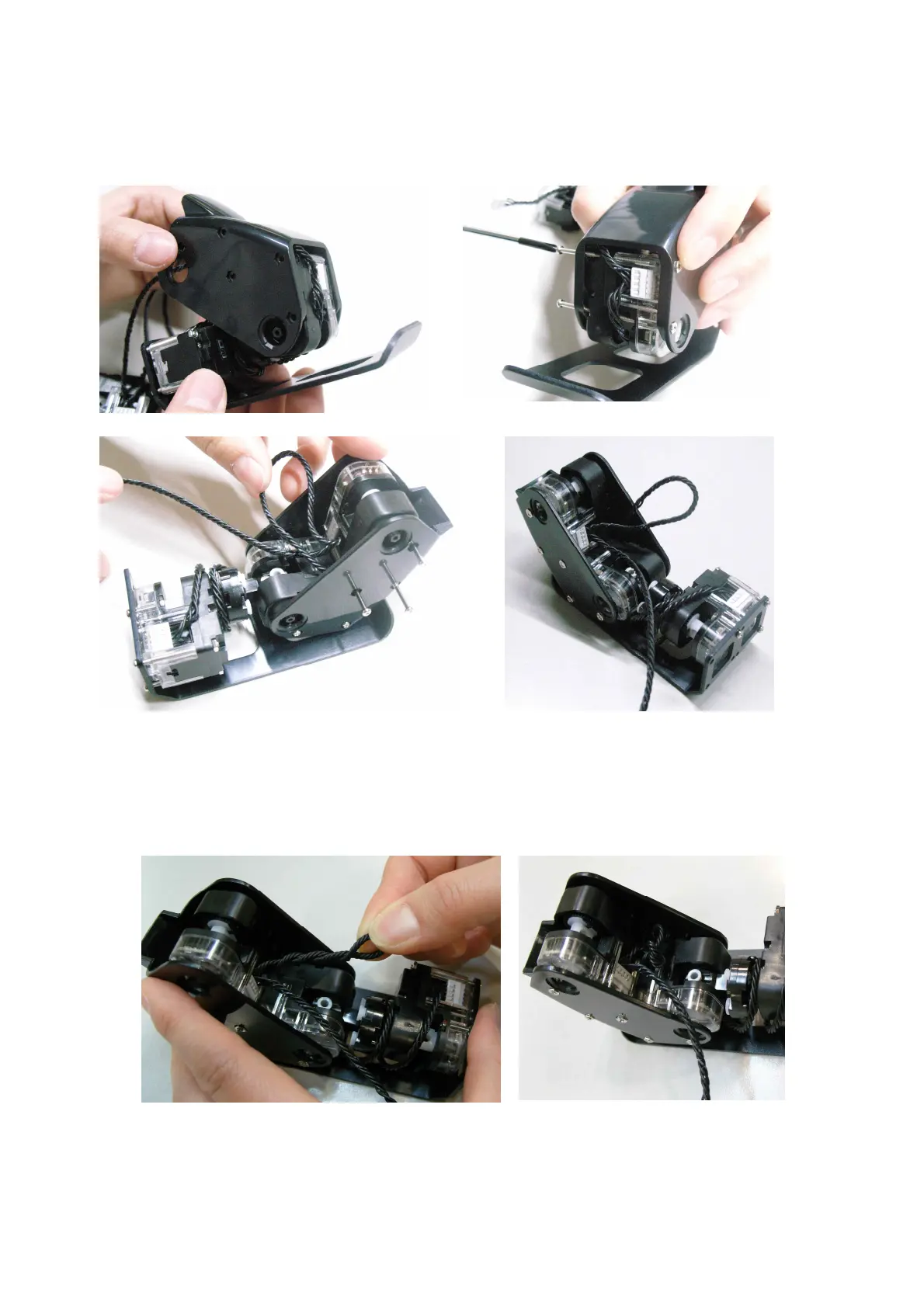

STEP6. Use the Bolt (B35) and Nut to connect “ID08” and “ID07” with “Knee Frame”.
STEP7. Twist cable 3~4 times between “ID08” and “ID07” and put into empty space.
