37

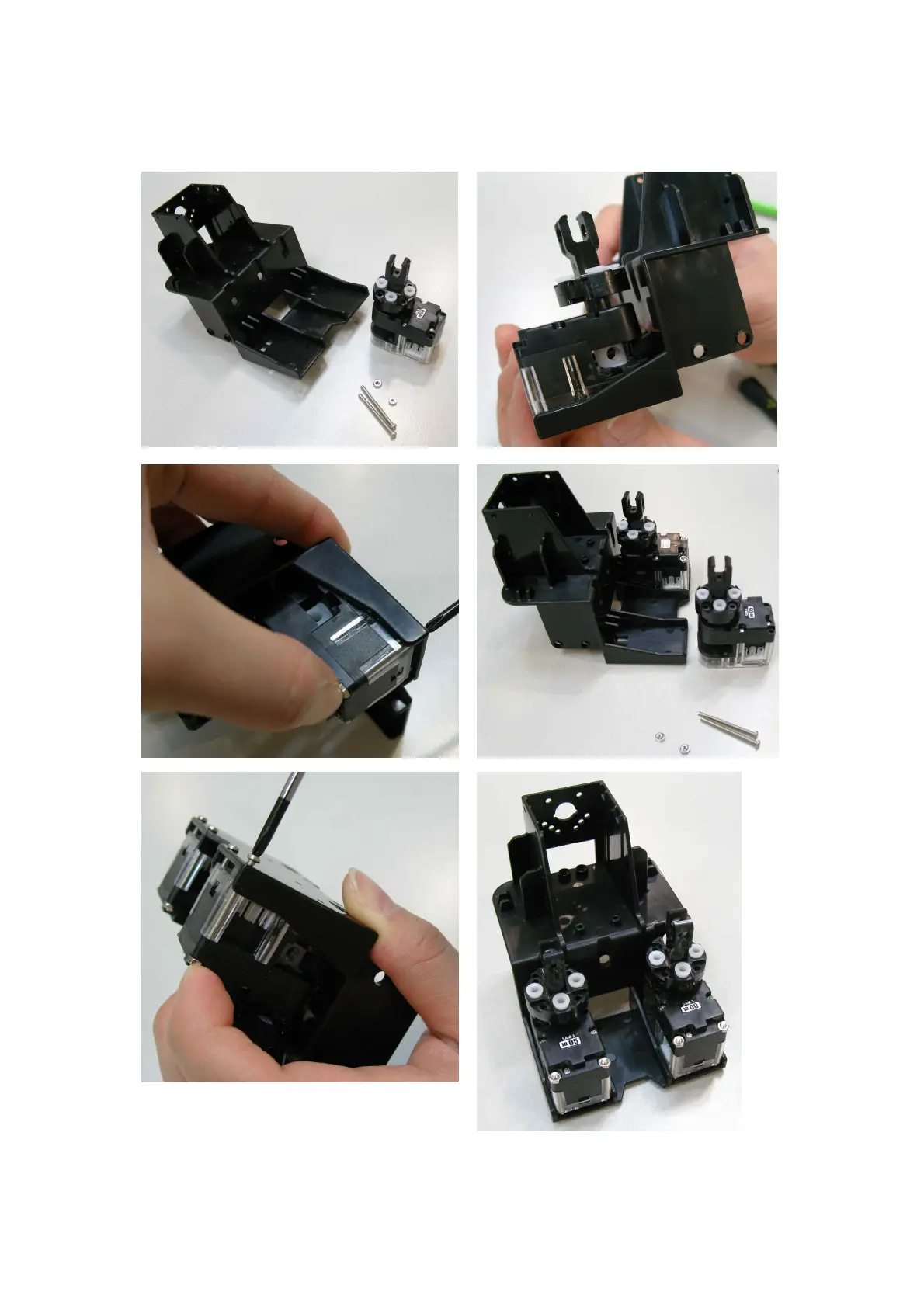

STEP4. Connect ID00 and ID05 with Body Frame by using Bolt (B27) and Nut.
Check the ID05 and ID00 connect position well as shown in the below.
