RoboBuilder RQ-110 - Page 38

38

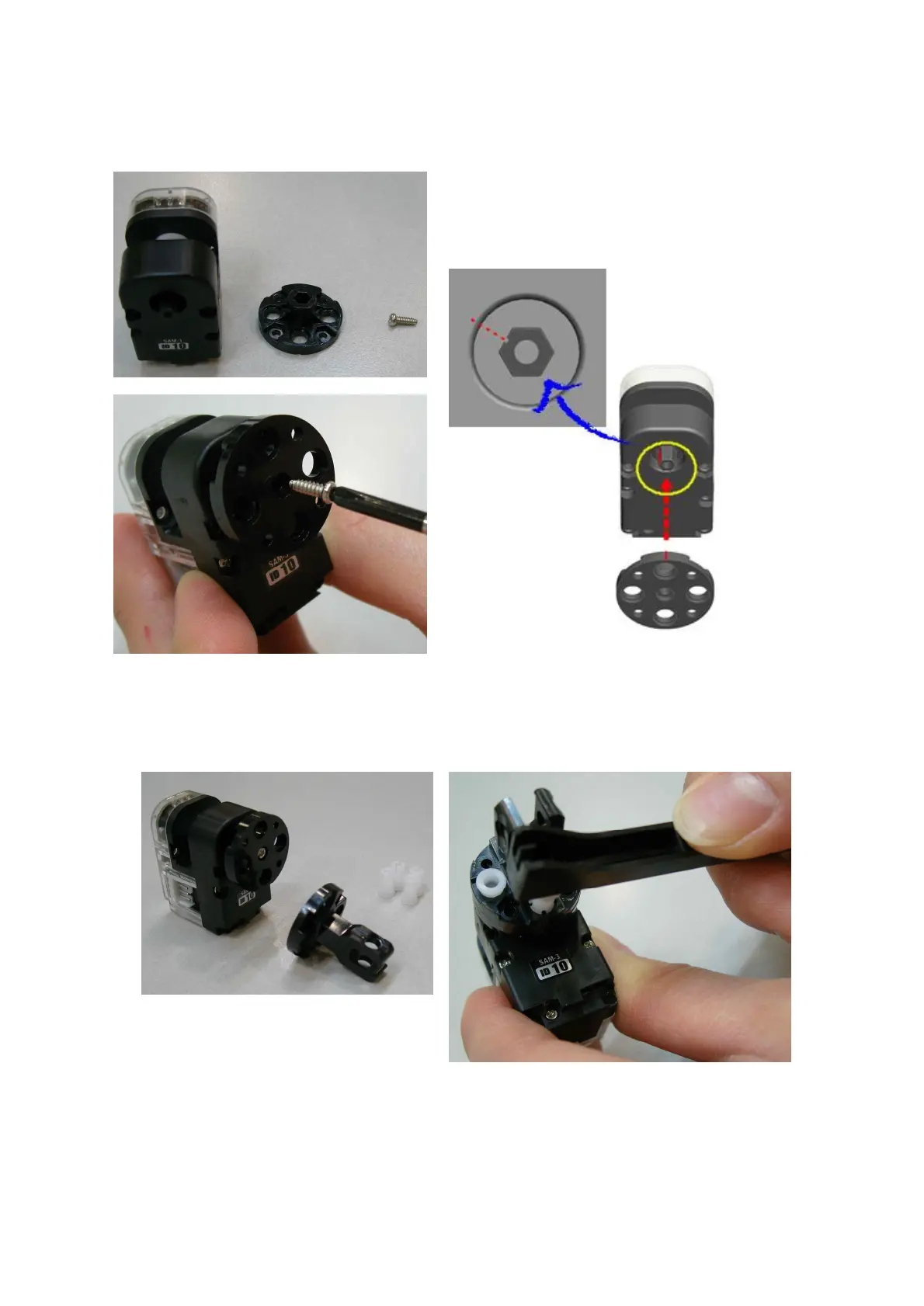

STEP5. Connect “Front Horn” with ID10. Check the “Front Horn” and ID00 mark position.
- Smart servo mark position is 11 o’clock while Front Horn mark position is 12 o’clock as shown in the below.
STEP6. Connect “Joint Frame” with “Front Horn” by using “2s rivets” as shown in the below.
