1.2.2 Centrifugal gas unit heaters
1.2.2.1 R30 C

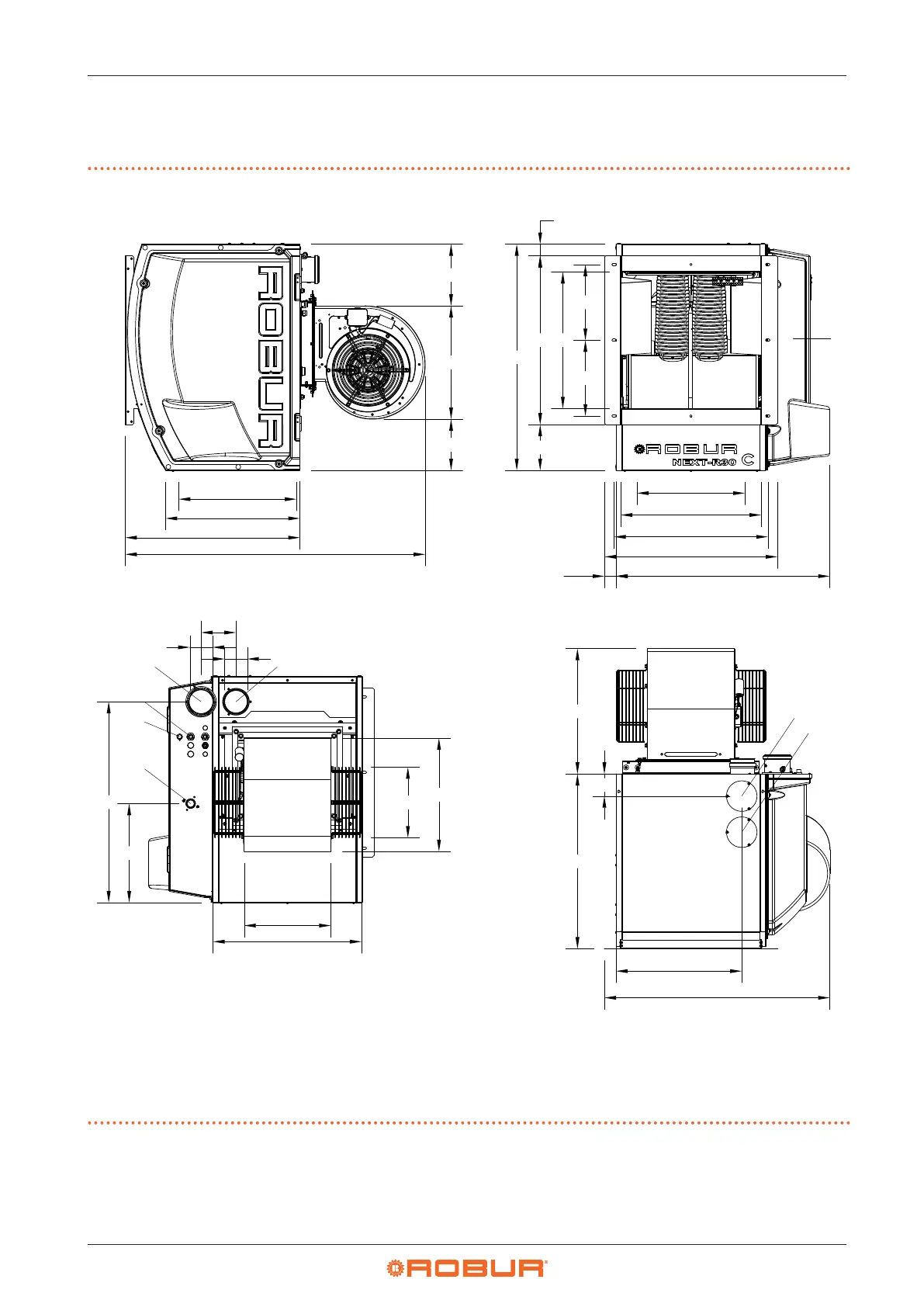

Figure1.7 Unit dimensions
1 Flue gas exhaust
2 Combustion air inlet
3 Power supply cables input
4 Gas connection 3/4" M
5 Thermoformed door
6 Limit thermostat
7 Flue gas exhaust blind cover, alternative to the rear one (1)
8 Blind cover for access to the fan thermostat
(*) Holes for xing to the support bracket
734
777
774
601
431
40
580
157
469
260
260
595
482
528
40
5
80
80
12
3
4
6
690
340
389
298
510
1031
601
176
389
212
462
243
405 (*)
370 (*)
120
7
8
76
432
