Robustel GoRugged M1000 User Manual

Robustel GoRugged M1000 User Guide
RT_UG_M1000 Standard_v.2.0.0 20.12.2013 55 / 83
Confidential

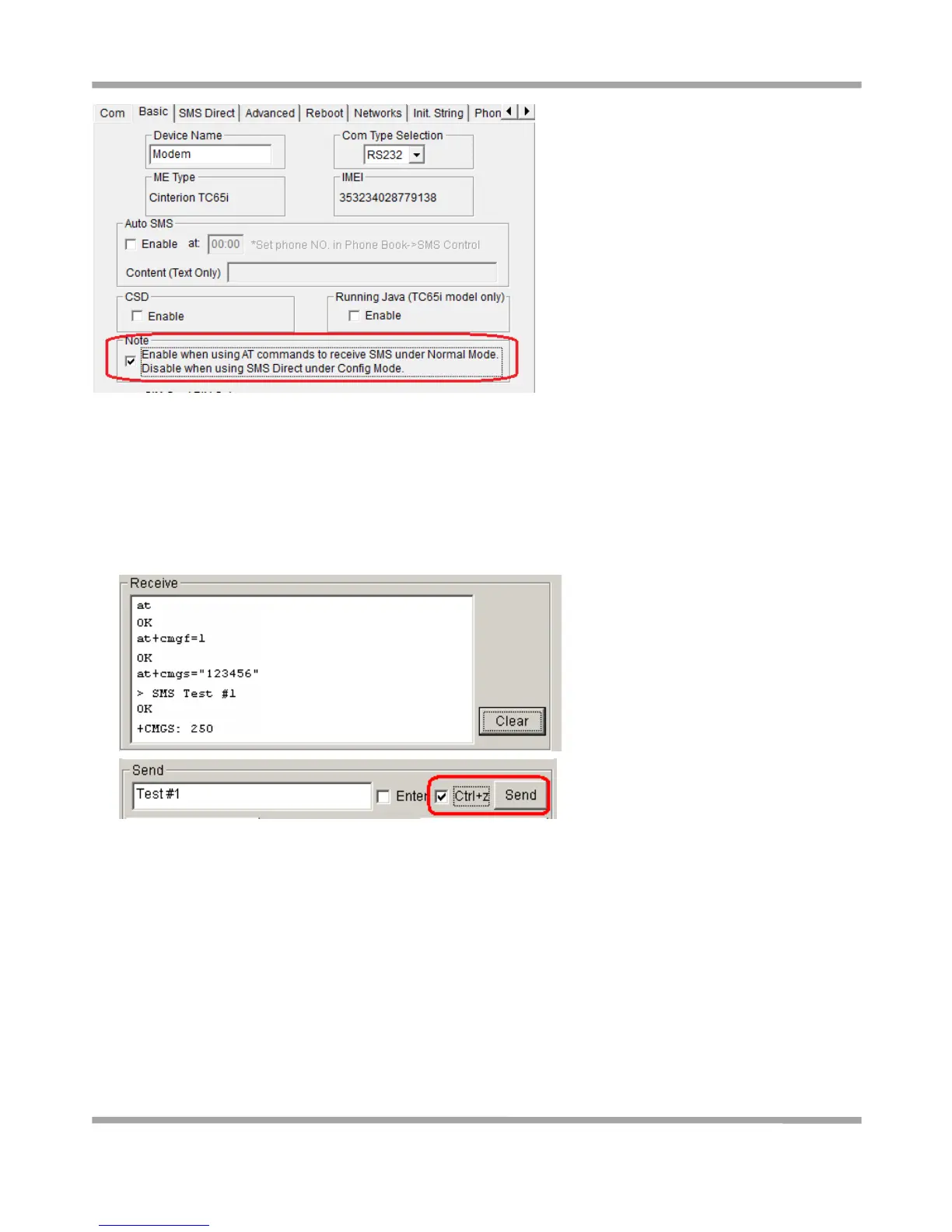

4.3.1 Sending a Short Message
1. Type AT+CMGF=1 and then click Send.
2. Type AT+CMGS=”<phone number>” and then click Send. The terminal will automatically move to the next line,
which starts with >. Type your message to the right of the >.
3. Enable Ctrl + Z and click Send to deliver the message.
Note: AT+CMGF=1 sets the SMS to Text mode.
4.3.2 Reading a Short Message
1. Type AT+CMGF=1 and then press Enter.
2. Type AT+CNMI=2,1 and then press Enter.
3. When a short message is received, the modem will show the storage number of the message after “+CMIT: “SM”,
x” (where the x is the storage number).
4. Type AT+CMGR=x to read the message.
5. In the example shown below, the x=5 means that the message is stored in the 5th storage location.

Robustel GoRugged M1000 Specifications

General

Brand	Robustel
Model	GoRugged M1000
Category	Modem
Language	English
