Chapter 5 LCD and Keypad
Note: The Security menu is available in firmware revision FRN 21 and
higher.

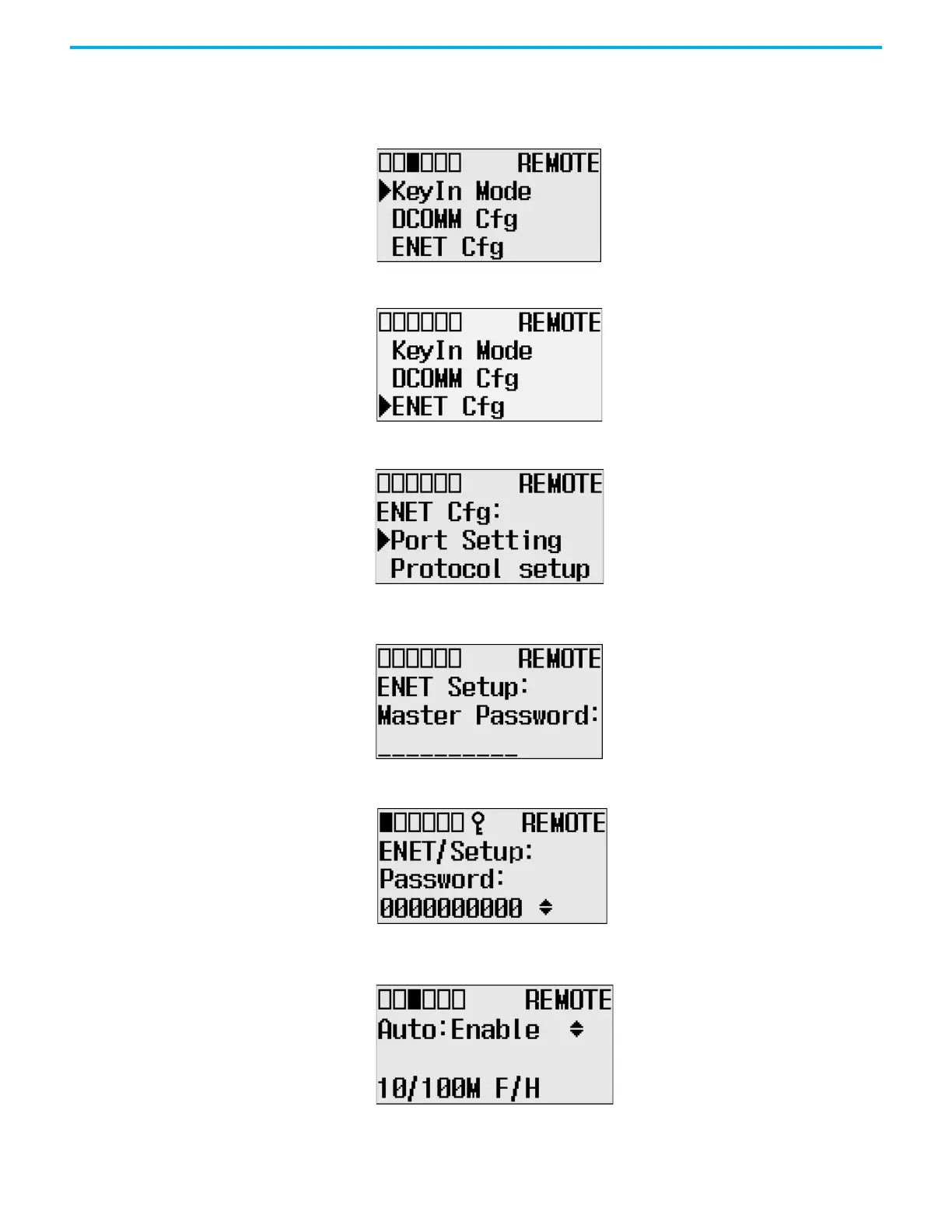

2. Press OK on the LCD keypad. The Advanced Settings Menu screen
displays.
3. If ENET Cfg is selected, press OK. If not, select ENET Cfg using the Up
and Down keys, and then press OK.
4. If Port Setting is selected, press OK, If not, select Port Setting using the
Up and Down keys, and then press OK.
5. The password screen displays. Press Up, Down, Left and Right to enter
Master password with maximum 10 digits. In this example, the current
Master password is allocated as 1234.
Note: For firmware revisions 21.000 or later the LCD password screen
displays.
After entering the Master password, press the OK key on the LCD keypad.
6. If the Master password is correct, the last configuration displays. In this
example, the auto negotiation function is enabled and the 10/100 Mbps
link configuration shows.
To Next Page
