Chapter 5 LCD and Keypad
5. Adjust the contrast value using the Left and Right keys on the LCD
keypad.

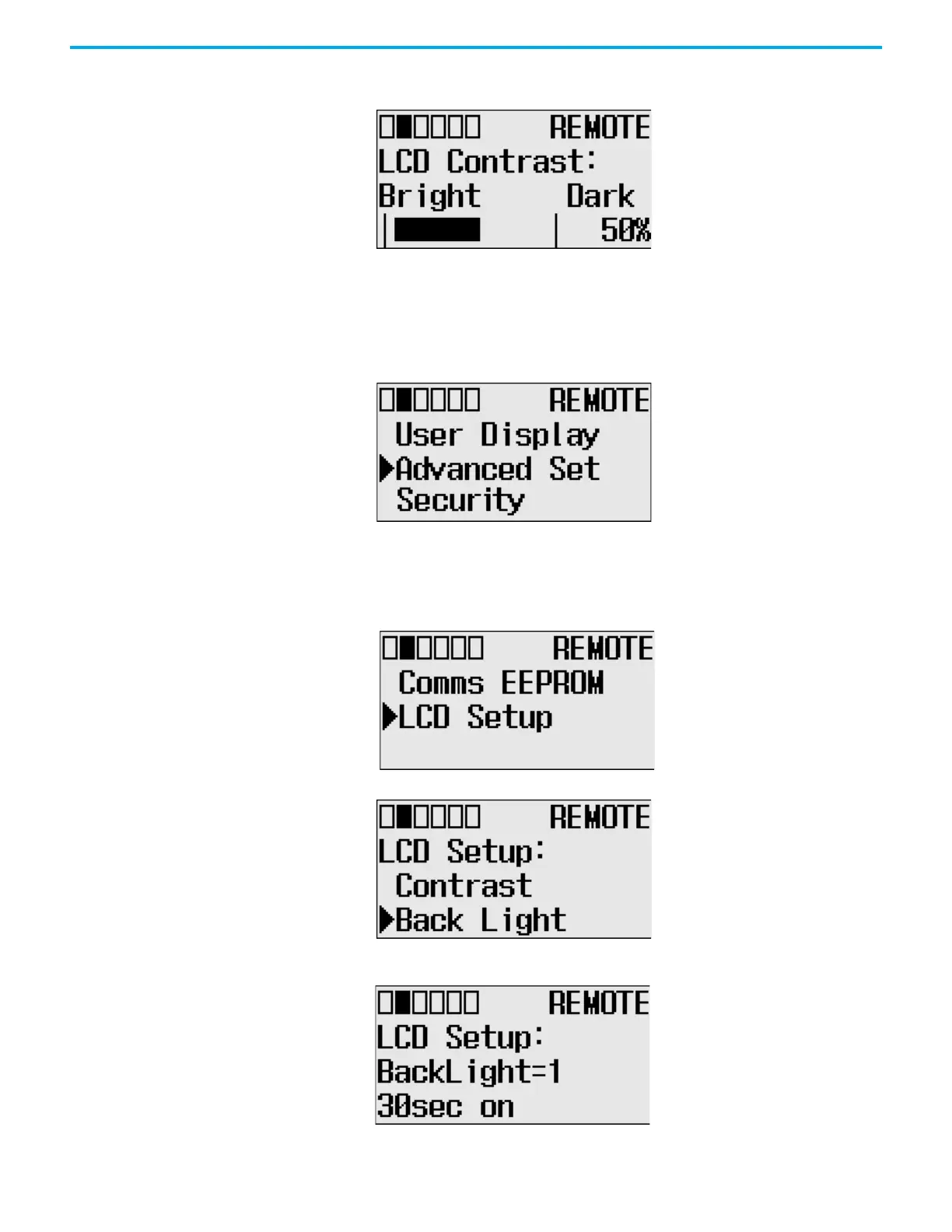

Configure the Back Light
1. On the Main Menu screen, select Advanced Set by using the Up and
Down keys on the LCD keypad.
If the menu items shown are not displayed on the Main Menu screen,
scroll down by pressing the Down key.
Note: The Security menu is available in firmware revision FRN 21 and
higher.
2. Press OK on the LCD keypad.
3. Select LCD Setup, using the Up and Down keys on the LCD keypad.
When the LCD Setup menu screen displays, press OK.
4. Select Back Light to adjust back lighting options for the LCD.
5. The default value for the back light is 30 seconds. You can adjust back
light time using the Up and Down keys on the LCD keypad.
