120 Rockwell Automation Publication 1766-UM001O-EN-P - September 2021
Chapter 5 LCD and Keypad

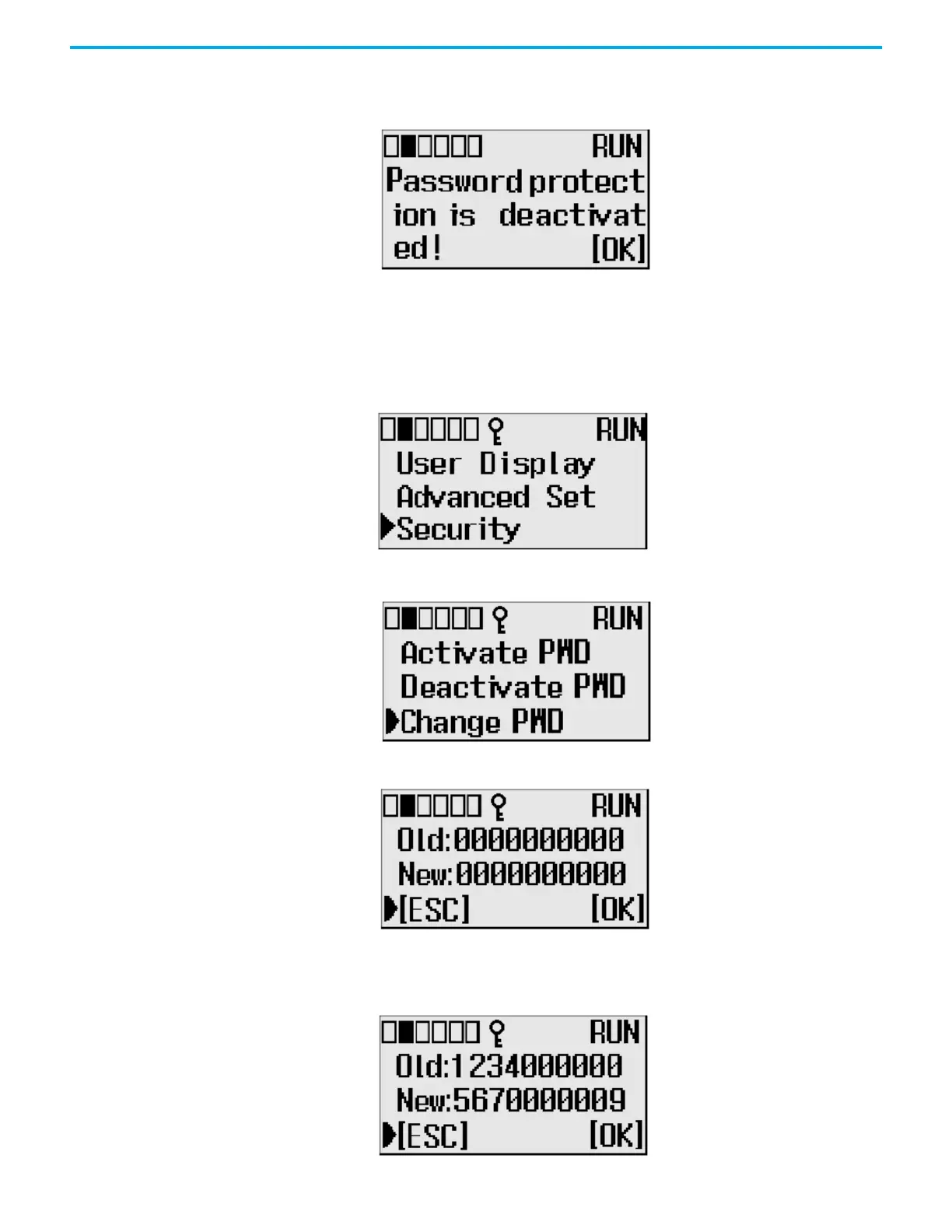

4. Enter the LCD Password and press OK to deactivate the LCD Password.
A notification screen displays and the key symbol no longer appears at
the top of the screen.
5. Press OK.
The LCD Password remains stored in the controller but is deactivated.
Change LCD Password
1. On the Main Menu, select Security by using the Up and Down keys on the
LCD keypad.
2. Select Security to change the LCD Password. If an LCD Password is set,
the LCD Password configuration menu screen displays.
3. Select Change PWD to change the LCD Password. The LCD password
change screen displays.
4. Press Up or Down to change the digit and press Left or Right to move the
cursor position. Enter the old (current) and new LCD Passwords.
In this example, the old and new LCD Passwords are 1234 and
5670000009.
