Rockwell Automation Publication 1766-UM001O-EN-P - September 2021 71
Chapter 4 Communication Connections

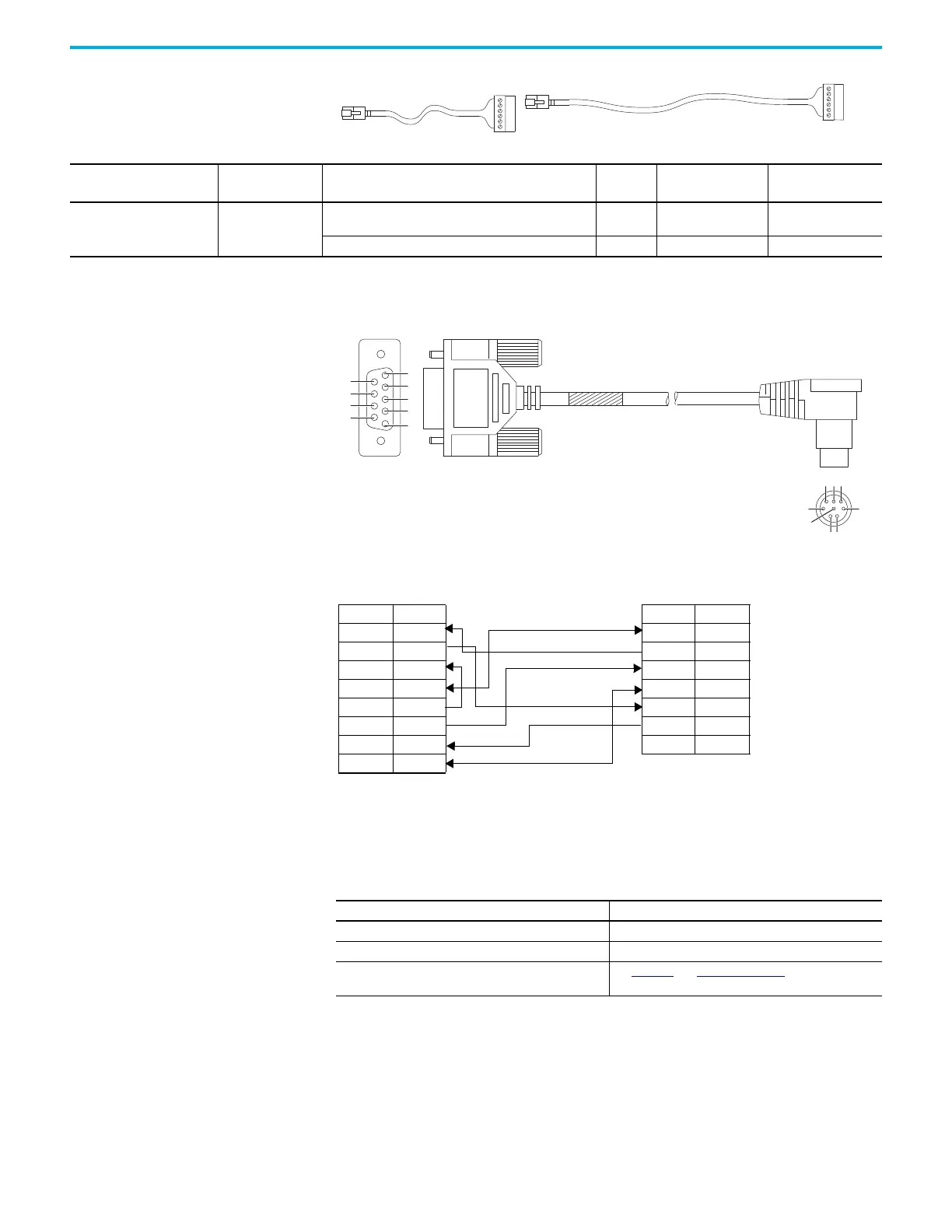

1761-CBL-PM02 Series C (or equivalent) Cable Wiring Diagram
Recommended User-Supplied Components
These components can be purchased from your local electronics supplier.
1761-CBL-AS03 1761-CBL-AS09
Cable Length Connections from to AIC+
External Power
Supply Required
(1)
Power Selection
Switch Setting
(1)
1761-CBL-AS03
1761-CBL-AS09
3 m (9.8 ft)
9.5 m (31.17 ft)
SLC 500 Fixed,
SLC 5/01, SLC 5/02, and SLC 5/03 processors
Port 3 Yes External
PanelView 550 RJ45 port Port 3 Yes External
(1) External power supply required unless the AIC+ is powered by the device connected to port 2, then the selection switch should be set to cable.
User Supplied Components
Component Recommended Model
External power supply and chassis ground Power supply rated for 20.4…28.8V DC
NULL modem adapter Standard AT
Straight 9-25 pin RS-232 cable
See Figure 54
and Table 10 on page 72 for port information
if making own cables
Programming Device Controller
9-Pin D-Shell 8-Pin Mini Din
9RI B(+)1
8CTS GND2
7RTS RTS3
6DSR RXD4
5GND DCD5
4DTR CTS6
3TXD TXD7
2RXD A(-)8
1DCD
To Next Page
