Rockwell Automation 1766-L32BWAA User Manual

Rockwell Automation Publication 1766-UM001O-EN-P - September 2021 39
Chapter 3 Wire Your Controller

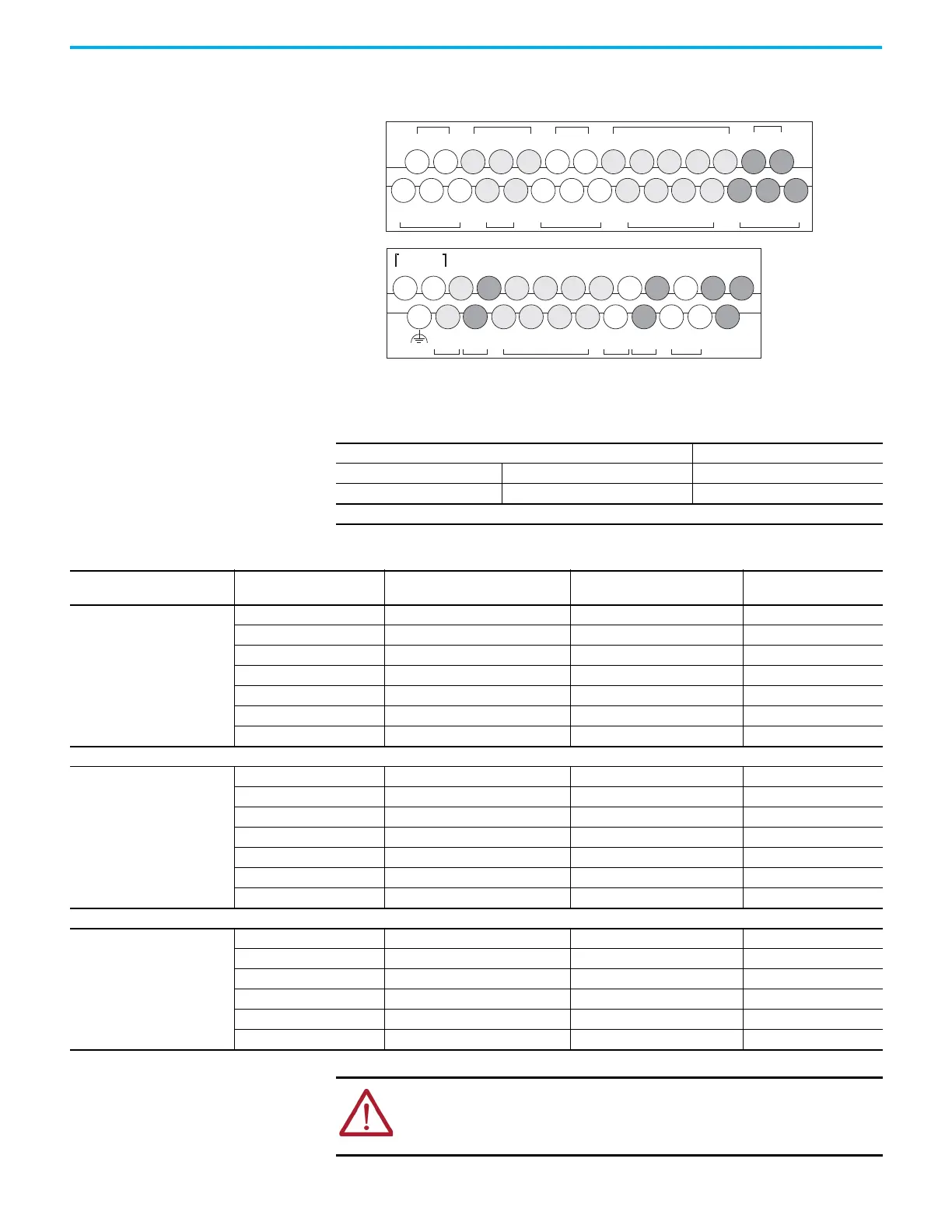

Figure 12 - 1766-L32BXB/L32BXBA
Table 4 - Wire Types and Sizes
Wire Type Wire Size
Solid wire Cu-90 °CC (194 °FF) 14…22 AWG
Stranded wire Cu-90 °CC (194 °FF) 16…22 AWG
Wiring torque = 0.791 N•m (7 lb•in) rated.
IN1
IN0 IN2
IN3
COM 0
IV0(+) IV2(+)
COM 1
IV1(+) IV3(+)
IN5 IN7
IN4 IN6
COM 2
IN8 IN10
IN9 IN11
COM 3
IN13 IN15 IN17 IN19
IN12 IN14 IN16 IN18
COM
ANA
+24
DC0
OV1
OUT0
OUT1 OUT2 OUT4 OUT6
OUT7
OUT8 OUT9 OUT10
OUT11
OV0
VDC
NEUT
VDC
VAC
DC1
VAC
VDC2 OUT3 OUT5 DC4
VAC
COM
ANA
COM 2
DC3
VAC
DC5
VAC
Group 0 Group 1 Group 3 Group 4 Group 5Group 2
Input Terminal Block
Output Terminal Block
Table 5 - Output Terminal Grouping
Controllers Output Group Description
Outputs
Voltage Terminal
Output Terminal
1766-L32BWA
1766--L32BWAA
Group 0 Isolated relay output VAC/DC0 OUT 0
Group 1 Isolated relay output VAC/DC1 OUT 1
Group 2 Isolated relay output VAC/DC2 OUT 2
Group 3 Isolated relay output VAC/DC3 OUT 3
Group 4 Isolated relay output VAC/DC4 OUT 4, OUT 5
Group 5 Isolated relay output VAC/DC5 OUT 6, OUT 7
Group 6 Isolated relay output VAC/DC6 OUT 8…11
1766-L32AWA
1766-L32AWAA
Group 0 Isolated relay output VAC/DC0 OUT 0
Group 1 Isolated relay output VAC/DC1 OUT 1
Group 2 Isolated relay output VAC/DC2 OUT 2
Group 3 Isolated relay output VAC/DC3 OUT 3
Group 4 Isolated relay output VAC/DC4 OUT 4, OUT 5
Group 5 Isolated relay output VAC/DC5 OUT 6, OUT 7
Group 6 Isolated relay output VAC/DC6 OUT 8…11
1766-L32BXB
1766-L32BXBA
Group 0 Isolated relay output VAC/DC0 OUT 0
Group 1 Isolated relay output VAC/DC1 OUT 1
Group 2 FET output VDC2/COM 2 OUT 2…7
Group 3 Isolated relay output VAC/DC3 OUT 8
Group 4 Isolated relay output VAC/DC4 OUT 9
Group 5 Isolated relay output VAC/DC5 OUT 10, OUT 11
WARNING: If you connect or disconnect wiring while the field-side power is on, an
electrical arc can occur. This could cause an explosion in hazardous location
installations. Be sure that power is removed or the area is nonhazardous before
proceeding.
