14 CompactLogix Packaged Controllers
Publication 1769-IN082A-EN-P - July 2008

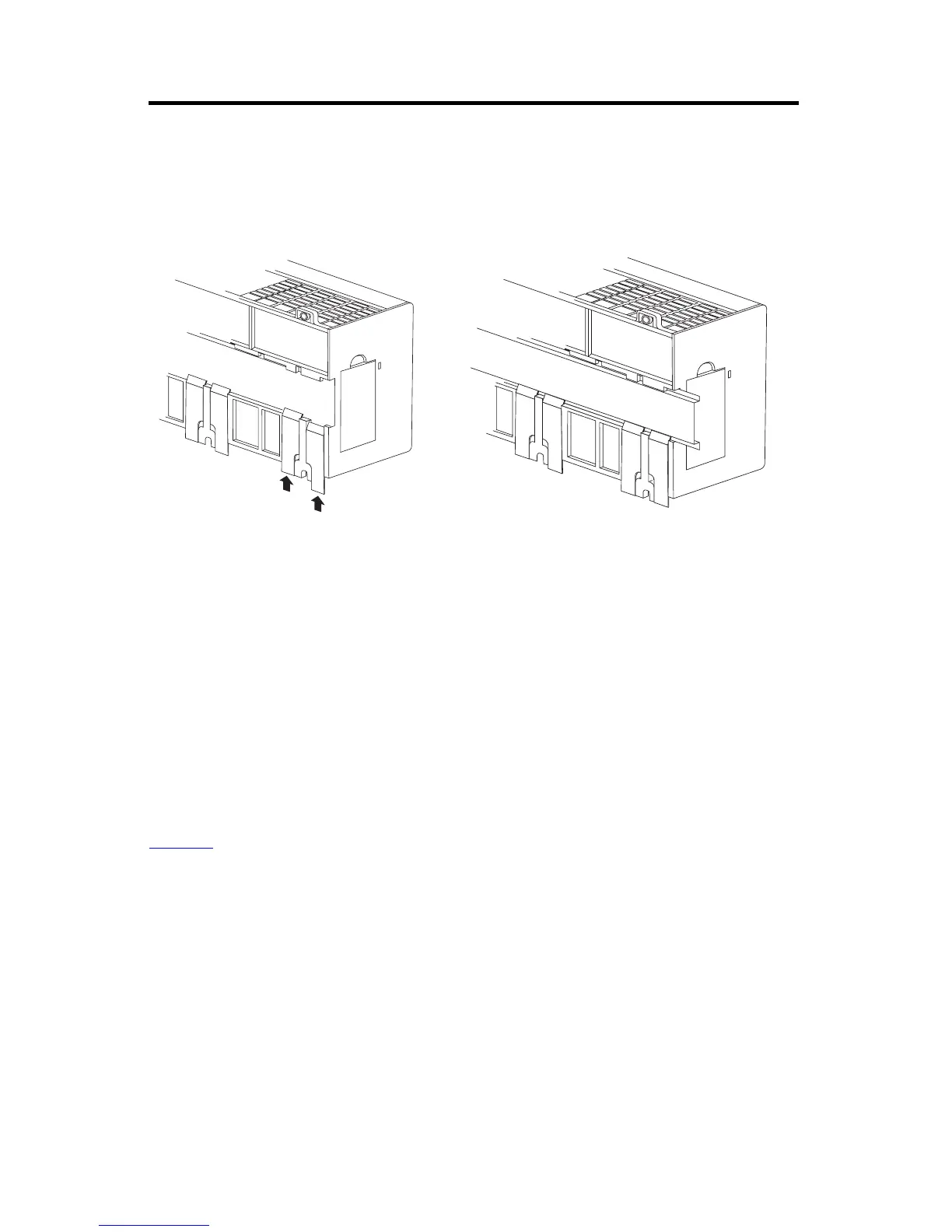

2. Press the DIN rail mounting area of the packaged controller against the DIN
rail.
The latches momentarily open and lock into place on the DIN rail
3. Press the DIN rail mounting area of the packaged controller against the DIN
rail.
The latches momentarily open and lock into place on the DIN rail.
Grounding Considerations
This product is intended to be mounted to a well-grounded mounting surface such
as a metal panel. Additional grounding connections from the packaged controller’s
mounting tabs or DIN rail (if used) are not required unless the mounting surface
cannot be grounded.
Refer to the Industrial Automation Wiring and Grounding Guidelines, publication
1770-4.1
for additional information.
