Rockwell Automation 1769-L23E-QB1B User Manual

CompactLogix Packaged Controllers 55
Publication 1769-IN082A-EN-P - July 2008

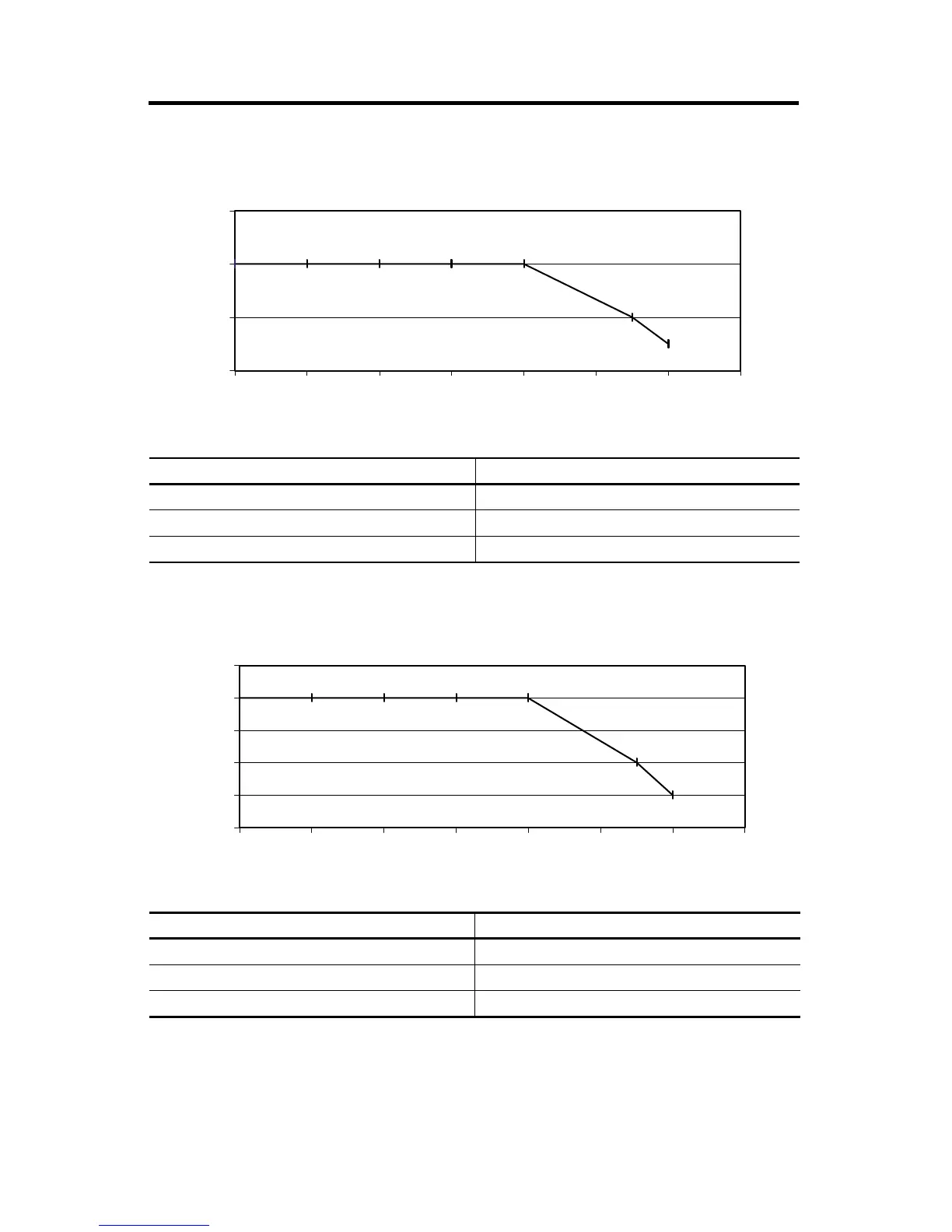

Maximum Output Current per Point - 24V DC Operation
Maximum Output Current per Module - 24V DC Operation
Temperature Derated Current
0°C to 40°C (-32°F to 104°F) 1A
55°C (131°F) 0.5A
60°C (140°F) 0.25A
Temperature Derated Current
0 °C to 40 °C (-32 °F to 104 °F) 4A
55°C (131 °F) 2A
60°C (140 °F) 1A
0
0.5
1
1.5
010203040506070
Current Derating Based on Temperature
Ambient Temperature (°C)
Current per Point (A)
0.25A at 60 °C
0
1
2
3
4
5
0 10203040506070
Current Derating Based on Temperature
Ambient Temperature (°C)
Current per Module (A)
1A at 60 °C
