1769-L23E-QBFC1B and 1769-L23-QBFC1B Packaged Controllers

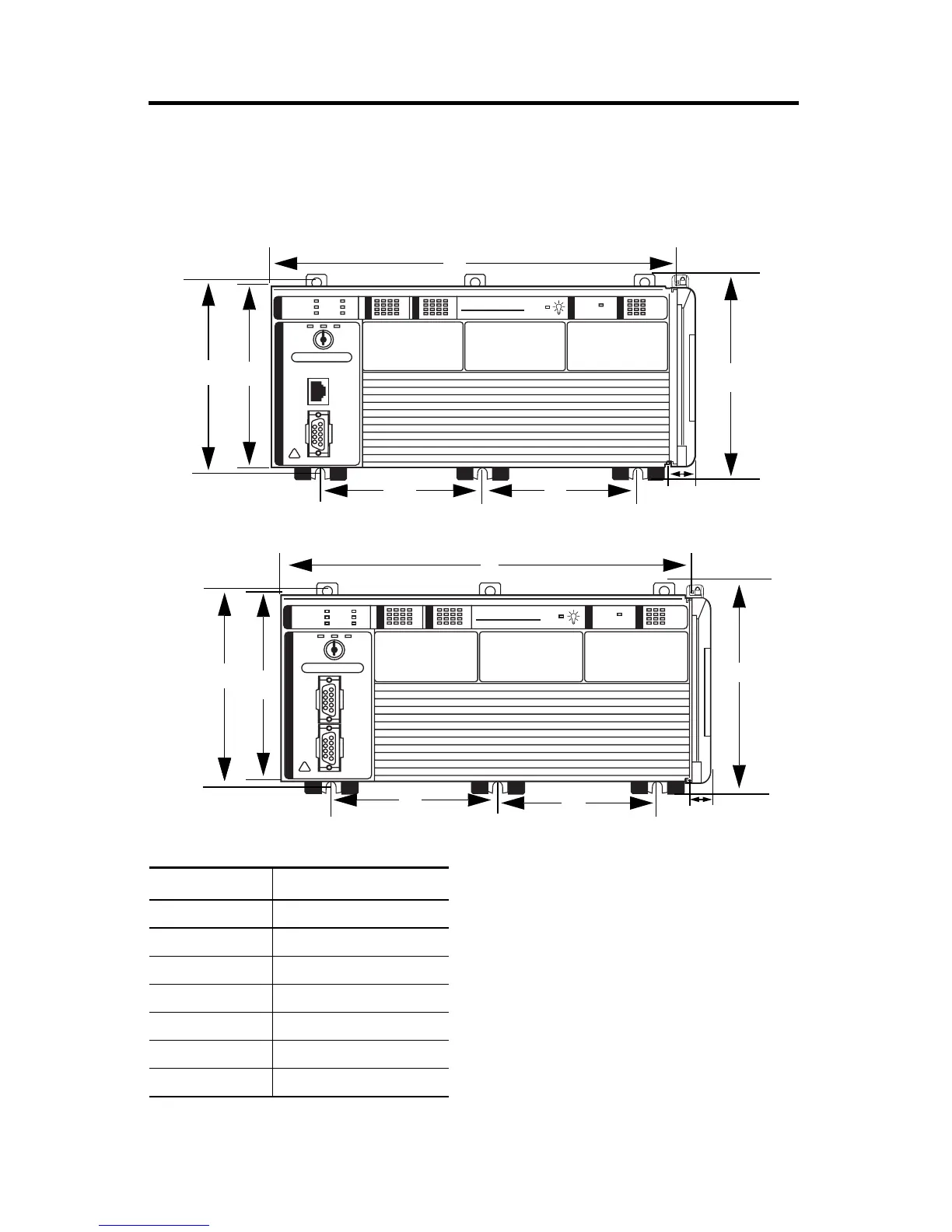

The 1769-L23E-QBFC1B and 1769-L23-QBFC1B packaged controllers have these
approximate dimensions.
Measurement
(1)
(1)
Applies to both the 1769-L23E-QBFC1B and
1769-L23-QBFC1B packaged controllers.
Dimension, approx.
a 249.25 mm (9.81 in)
b 123.86 mm (4.88 in)
c 118 mm (4.65 in)
d 132 mm (5.20in)
e 98.475 mm (3.88 in)
f 98.475 mm (3.88 in)
g 18 mm (.71 in)
CompactLogix L23E
g
a
b
c
e
f
d
CompactLogix L23
OK
BATT
I/O
DCH 0
FORCE
RUN
g
a
b
c
e
f
b
d
