46 Rockwell Automation Publication 5069-UM007A-EN-P - February 2019
Appendix A Compact 5000 EtherNet/IP Adapter Status Indicators
5069-AEN2TR Adapter
Status Indicators

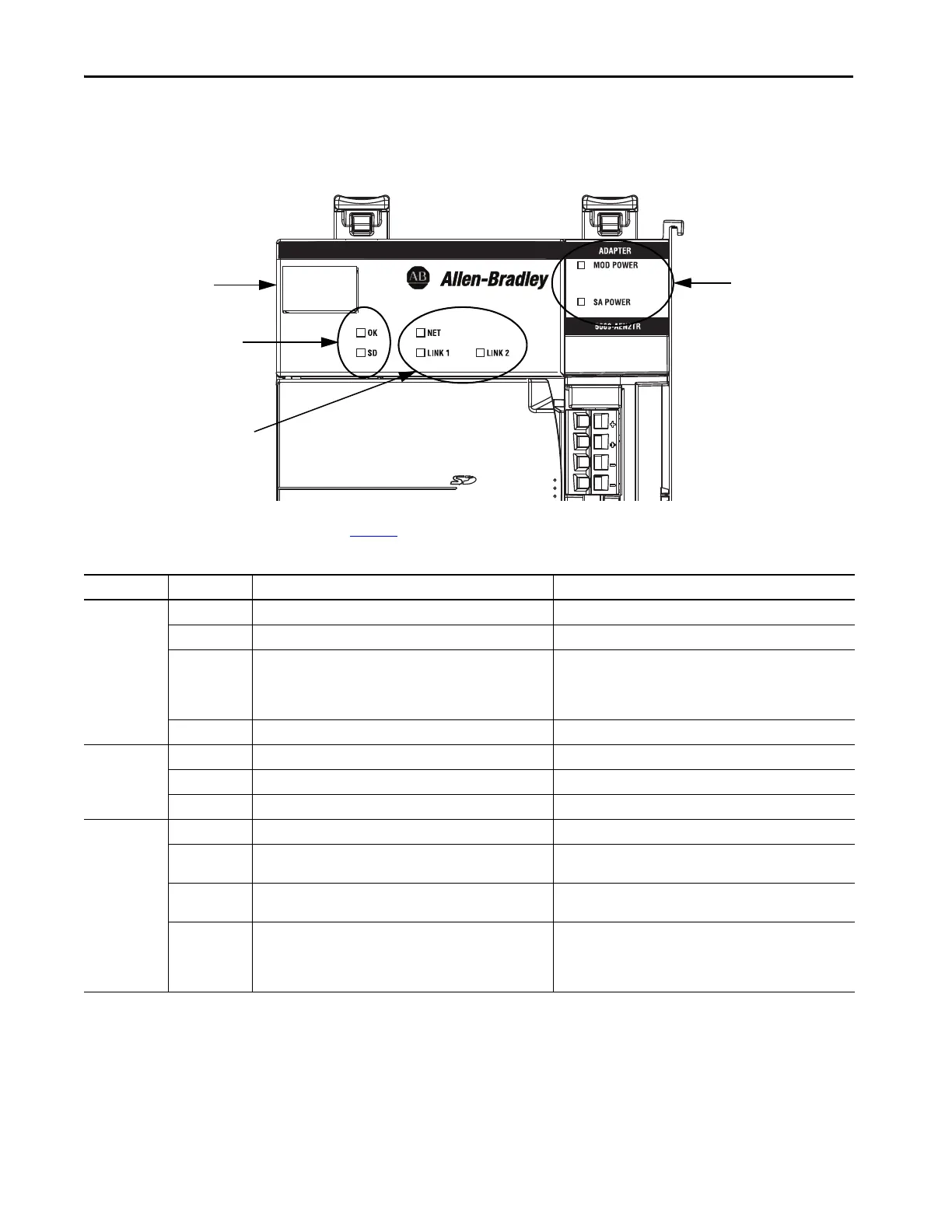

Figure 8 - 5069-AEN2TR Adapter Status Indicators
Table 3 describes the 5069-AEN2TR adapter status indicators.
Power Status Indicators
Controller Status Indicators
EtherNet/IP Status Indicators
4-character Scrolling
Status Display
Table 3 - 5069-AEN2TR Status Indicators
Indicator State Description Recommended Action
OK Off There is no power applied to the device. Apply power as necessary
Steady green The device is operating in a normal condition. None
Flashing red One of the following:
• The device has a recoverable fault. The fault can be read from the
device through the USB or Ethernet ports.
• A firmware update is being performed on the device.
One of the following:
• Cycle power.
• Wait for the firmware update to finish.
Steady red The device has an unrecoverable fault. Cycle power. If the fault persists, replace the device.
SD Off There is no activity to the SD card. None
Flashing green The controller is reading from, or writing to the SD card. None
Steady red The SD card does not have a valid file system. None
NET Off The device is not configured, or does not have an IP address. Configure the device or assign an IP address.
Flashing green The device has an IP address, but no active connections are
established.
Establish connections as required by the project.
Steady green The device has an IP address and at least one established active
connection.
None
Steady red There is a Duplicate IP address condition or invalid configuration. Troubleshoot the issue and remedy the cause.
For example, if a Duplicate IP address condition exists, determine
which devices on the network use the same IP address and change
the IP addresses to unique values.
