8 Rockwell Automation Publication 2198-IN016B-EN-P - October 2018
Kinetix 5700 DC-bus Conditioner Module
Wire an External Active Shunt
Active shunts wire to the DC-bus studs. The DC-bus conditioner modules are equipped with
spacers that slide onto the M8 studs. When the system configuration includes external DC-bus
and active shunt connections, external DC-bus connections are made below the spacer and active
shunt connections are made above the spacer.
Active Shunt Connections
Refer to the Kinetix 5700 Servo Drives User Manual, publication 2198-UM002, for active
shunts that are available from Rockwell Automation® Encompass™ partner Powerohm Resistors
(http://www.powerohm.com
).
ATTENTION: To avoid personal injury and/or equipment damage, observe the following:
• Make sure that the installation complies with specifications regarding wire types, conductor
sizes, branch circuit protection, and disconnect devices. The National Electrical Code (NEC) and
local codes outline provisions for safely installing electrical equipment.
• Use power connectors for connection purposes only. Do not use them to turn the unit on and off.

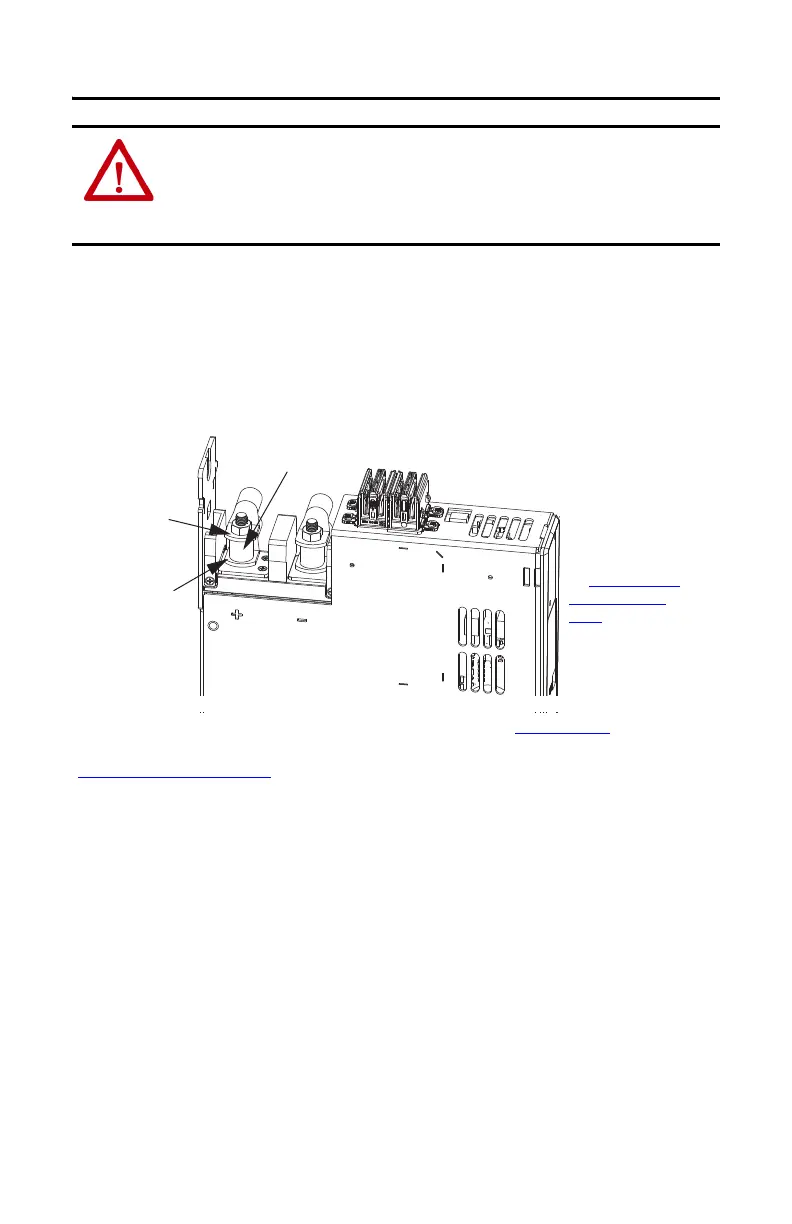

2198-DCBUSCOND-RP312
DC-bus Conditioner Module
See Mount the DC-bus
Conditioner Module on
page 3
for mounting
information and example
configurations.
Active Shunt
Lug Connections
(above spacer)
DC-Bus
Lug Connections
(below spacer)
Spacer
