Rockwell Automation Publication 2080-UM002N-EN-E - November 2022 247
Chapter 12 Using microSD Cards

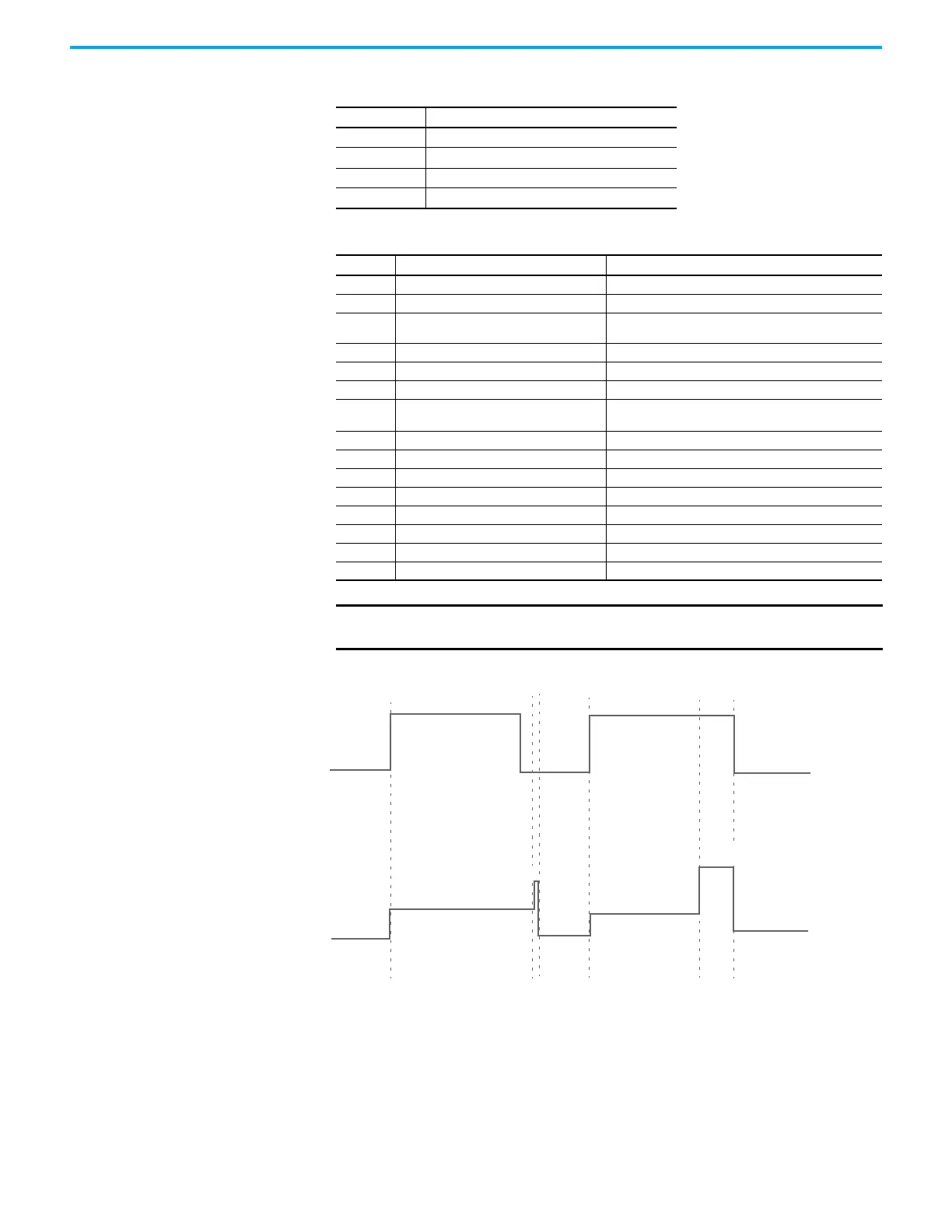

Figure 25 - Recipe Function Block Timing Diagram
Table 62 - RCP Function Block Status
Status Code Description
0 Recipe Idle status.
1 Recipe Busy status.
2 Recipe Complete Succeed status.
3 Recipe Complete Error status.
Table 63 - RCP Function Block Errors
Error ID Error Name Description
0 RCP_ERR_NONE No error.
1 RCP_ERR_NO_SDCARD microSD card is absent.
2 RCP_ERR_DATAFILE_FULL
Recipe files exceed maximum number of files per recipe set
folder.
3 RCP_ERR_DATAFILE_ACCESS Error to access recipe data file in microSD card.
4 RCP_ERR_CFG_ABSENT Recipe configuration file is absent.
5 RCP_ERR_CFG_ID Configure ID is absent in recipe configuration file.
6 RCP_ERR_RESOURCE_BUSY
The Recipe operation resource linked to this Recipe ID is used
by another function block operation.
7 RCP_ERR_CFG_FORMAT Recipe configuration file format is invalid.
8 RCP_ERR_RESERVED Reserved.
9 RCP_ERR_UNKNOWN Unspecified error has occurred.
10 RCP_ERR_DATAFILE_NAME Recipe data file name is invalid.
11 RCP_ERR_DATAFOLDER_INVALID Recipe dataset folder is invalid.
12 RCP_ERR_DATAFILE_ABSENT Recipe data file is absent.
13 RCP_ERR_DATAFILE_FORMAT Recipe data file contents are wrong.
14 RCP_ERR_DATAFILE_SIZE Recipe data file size is too big (>4K).
IMPORTANT File access error will be returned during RCP function block execution
when card is full.
Disable(0)
Enable(1)
Disable(0)
Enable(1)
Disable(0)
Idle(0)
Busy(1)
Succeed(2)
Idle(0)
Busy(1)
Error(3)
Idle(0)
Enable(1)
Status(0)
