Chapter 1 Hardware Overview

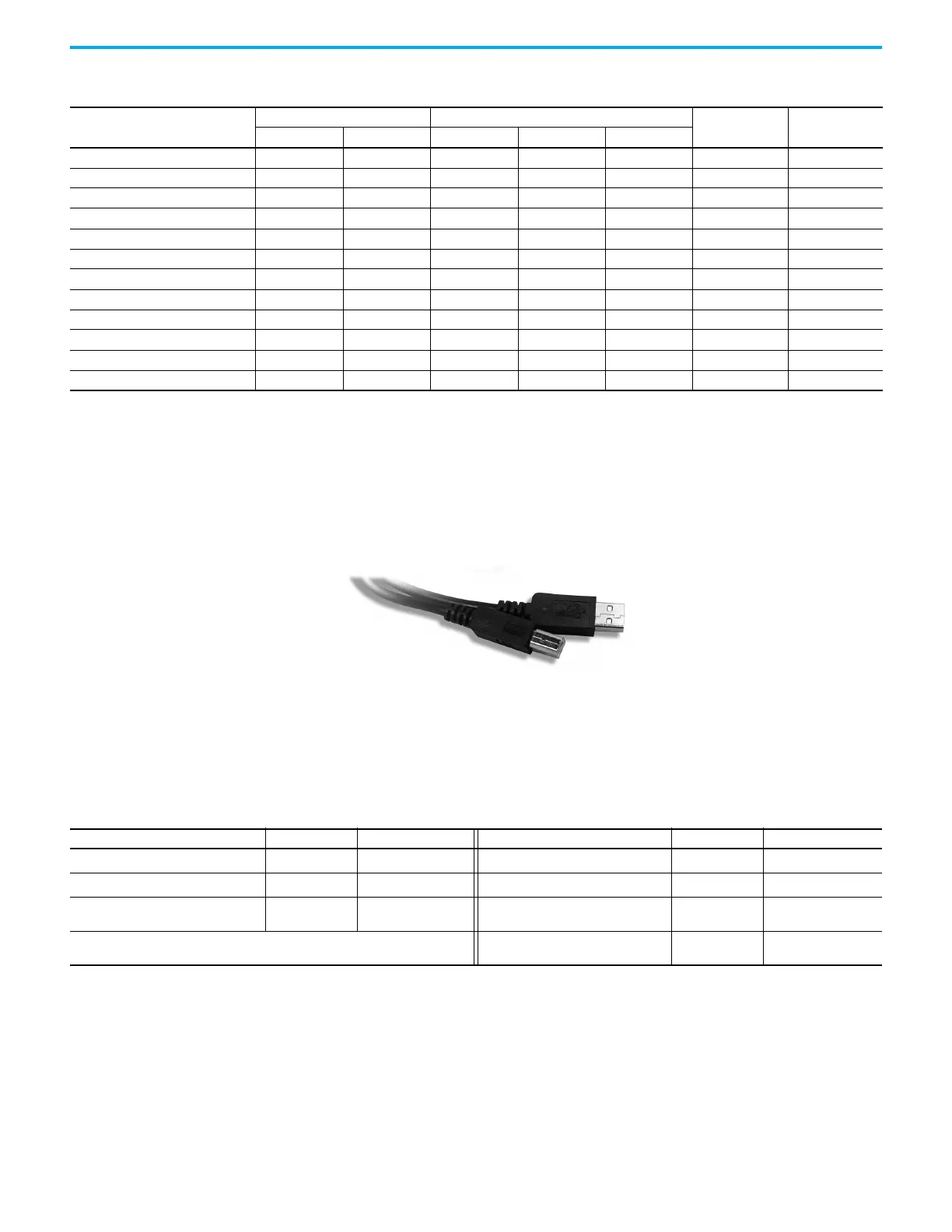

Programming Cables
Micro800 controllers have a USB interface, making standard USB cables usable as
programming cables.
Use a standard USB A Male to B Male cable for programming the controller.
Embedded Serial Port Cables
Embedded serial port cables for communication are listed here. All embedded serial port
cables must be 3 meters in length, or shorter.
Table 3 - Micro870 Controllers – Number and Types of Inputs/Outputs
Catalog Number
Inputs Outputs
PTO Support HSC Support
120V AC 24V DC/V AC Relay 24V Sink 24V Source
2080-LC70-24AWB 14 – 10 – – – –
2080-L70E-24AWB 14 – 10 – – – –
2080-LC70-24QWB – 14 10 – – – 4
2080-L70E-24QWB – 14 10 – – – 4
2080-LC70-24QWBK – 14 10 – – – 4
2080-L70E-24QWBK – 14 10 – – – 4
2080-L70E-24QWBN – 14 10 – – – 4
2080-LC70-24QBB – 14 – – 10 2 4
2080-L70E-24QBB – 14 – – 10 2 4
2080-LC70-24QBBK – 14 – – 10 2 4
2080-L70E-24QBBK – 14 – – 10 2 4
2080-L70E-24QBBN – 14 – – 10 2 4
Table 4 - Embedded Serial Port Cable Selection Chart
Connectors Length Cat. No. Connectors Length Cat. No.
8-pin Mini DIN to 8-pin Mini DIN 0.5 m (1.5 ft)
1761-CBL-AM00
(1)
8-pin Mini DIN to 9-pin D Shell 0.5 m (1.5 ft)
1761-CBL-AP00
(1)
8-pin Mini DIN to 8-pin Mini DIN 2 m (6.5 ft)
1761-CBL-HM02
(1)
8-pin Mini DIN to 9-pin D Shell 2 m (6.5 ft)
1761-CBL-PM02
(1)
8-pin Mini DIN to 8-pin Mini DIN (with
lock mechanism on both connectors)
2 m (6.5 ft) 1761-CBL-AH02
8-pin Mini DIN with lock mechanism to
9-pin D Shell
2 m (6.5 ft) 1761-CBL-PH02
—
8-pin Mini DIN to 6-pin RS-485 terminal
block
30 cm (11.8in.) 1763-NC01 series A
(1) Series C or later for Class 1 Div 2 applications.
