Rockwell Automation Publication 2080-UM002N-EN-E - November 2022 37
Chapter 3
Install Your Controller
This chapter serves to guide the user on installing the controller. It includes the following
topics.

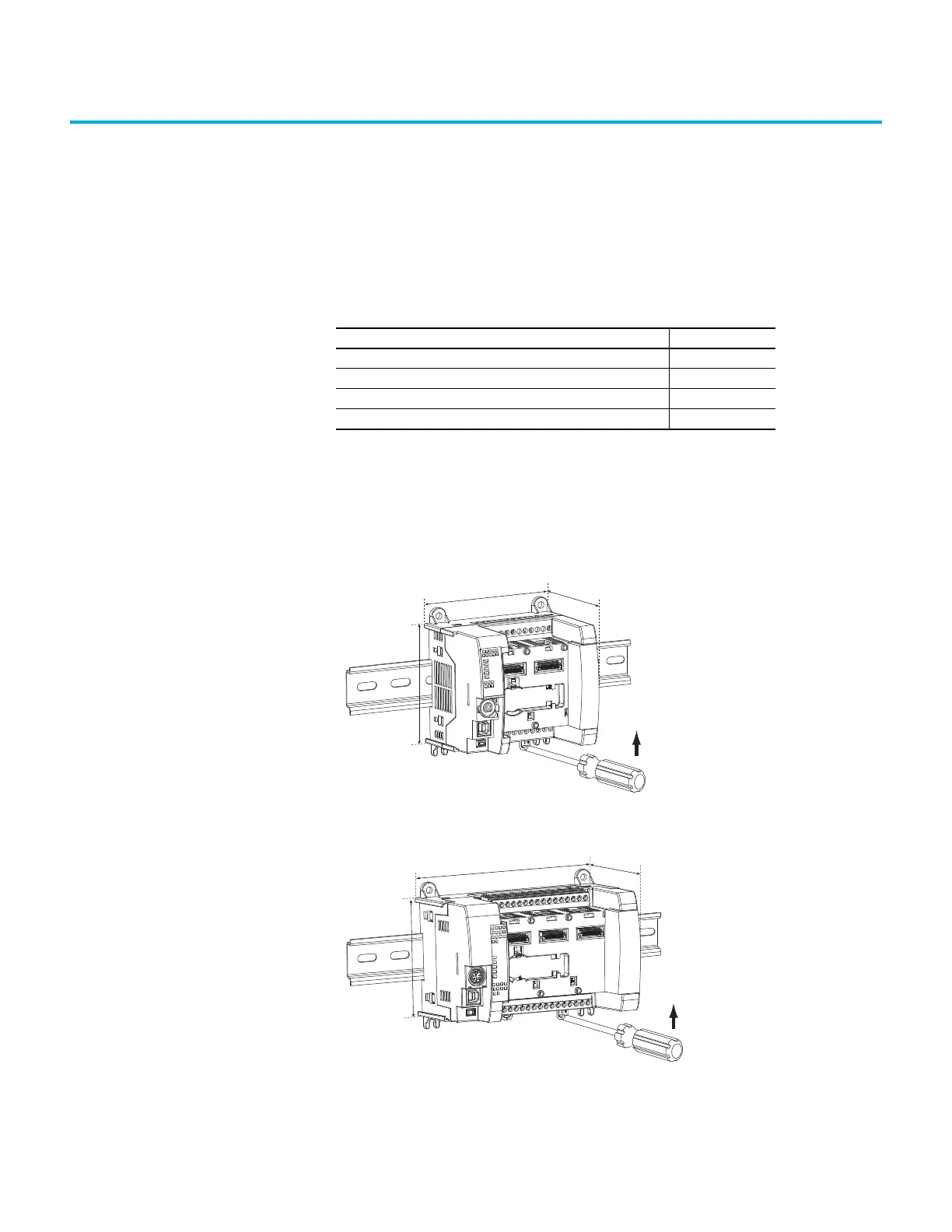

Controller Mounting
Dimensions
Mounting Dimensions
Mounting dimensions do not include mounting feet or DIN rail latches.
Micro830 10-point and 16-point Controllers
2080-LC30-10QWB, 2080-LC30-10QVB, 2080-LC30-16AWB, 2080-LC30-16QWB, 2080-LC30-16QVB
Micro830 24-point Controllers
2080-LC30-24QW8B, 2080-LC30-24QVB, 2080-LC30-24QBB
Topic Page
Controller Mounting Dimensions 37
Mounting Dimensions 37
DIN Rail Mounting 39
Panel Mounting 39
100 (3.94)
80 (3.15)
90 (3.54)
Measurements in mm (in.)
150 (5.91)
80 (3.15)
90 (3.54)
Measurements in mm (in.)
