268 Rockwell Automation Publication 2080-UM002N-EN-E - November 2022
Appendix B Quickstarts

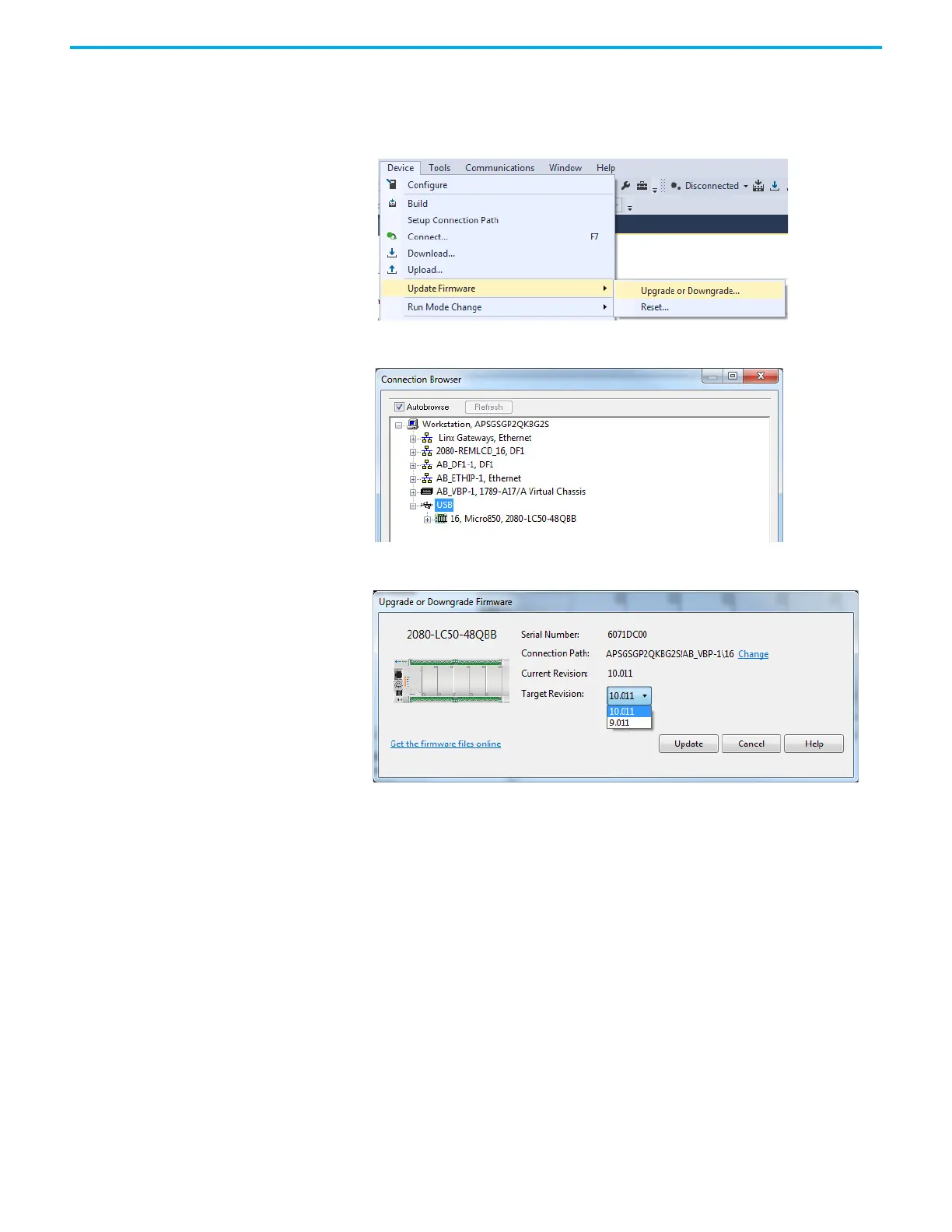

To begin, launch the Connected Components Workbench software:
1. In the menu, select Device -> Update Firmware -> Upgrade or Downgrade...
Alternatively, in the Project Organizer, right-click the controller and select Update
Firmware -> Upgrade or Downgrade...
2. If your project does not have a connection path to the controller, the Connection
Browser dialog appears. Select your controller, then click OK.
3. In the Upgrade or Downgrade Firmware dialog box, select the desired Target Revision to
flash update the controller.
If the desired firmware revision is not shown in the drop-down list, you can download
that firmware revision by clicking the “Get the firmware files online” link.
You can also change the Connection Path by clicking the “Change” link.
