Rockwell Automation Publication 2711P-UM008I-EN-P - February 2022 211

Chapter 7

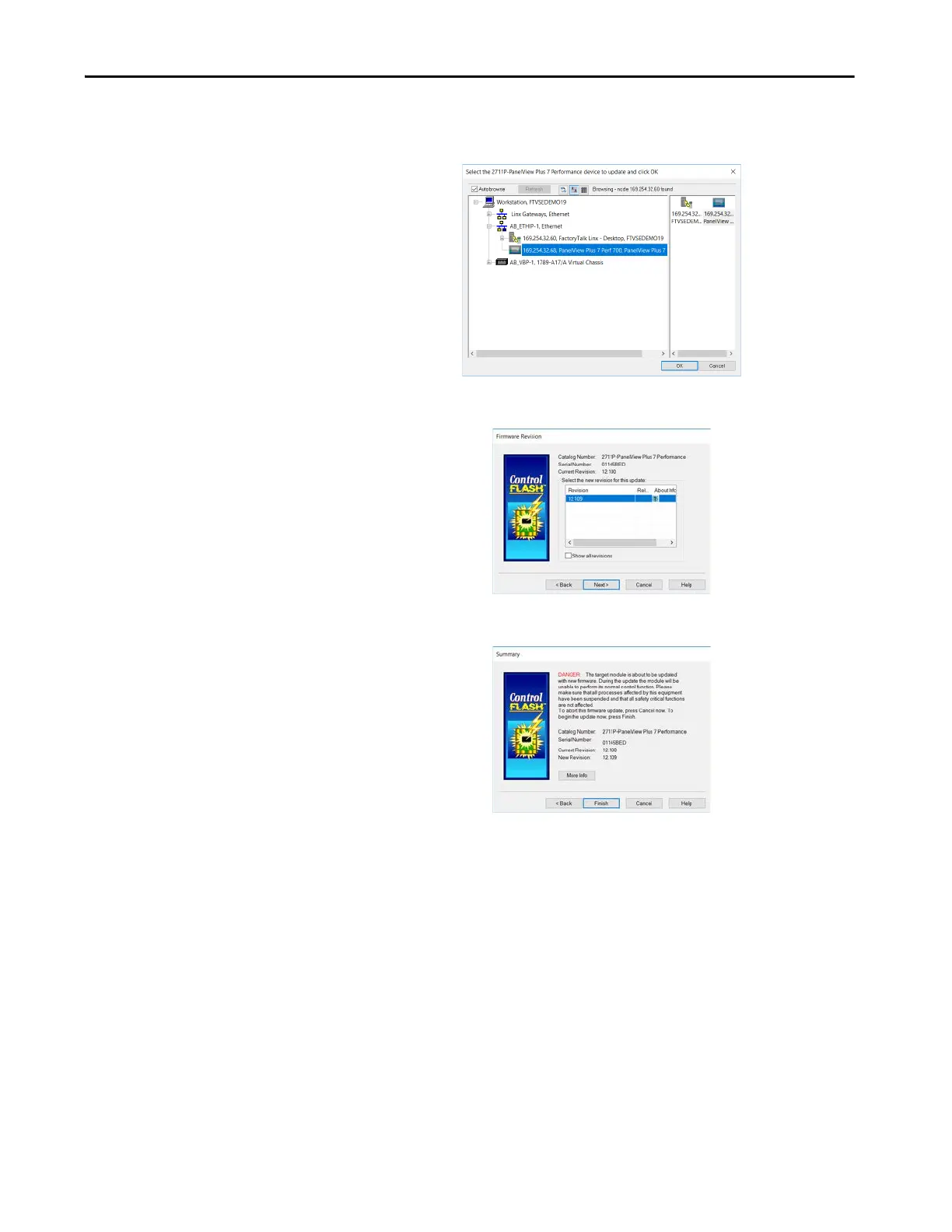

4. Browse to and select the device to update on the EtherNet/IP™ network

and click OK.

5. Select the firmware revision to install and click Next.

6. Read the Danger information in the Summary dialog, then click Finish.
