Rockwell Automation Publication 2711P-UM008I-EN-P - February 2022 47
Chapter 2
Each Ethernet port has two indicators that provide the status of activity.

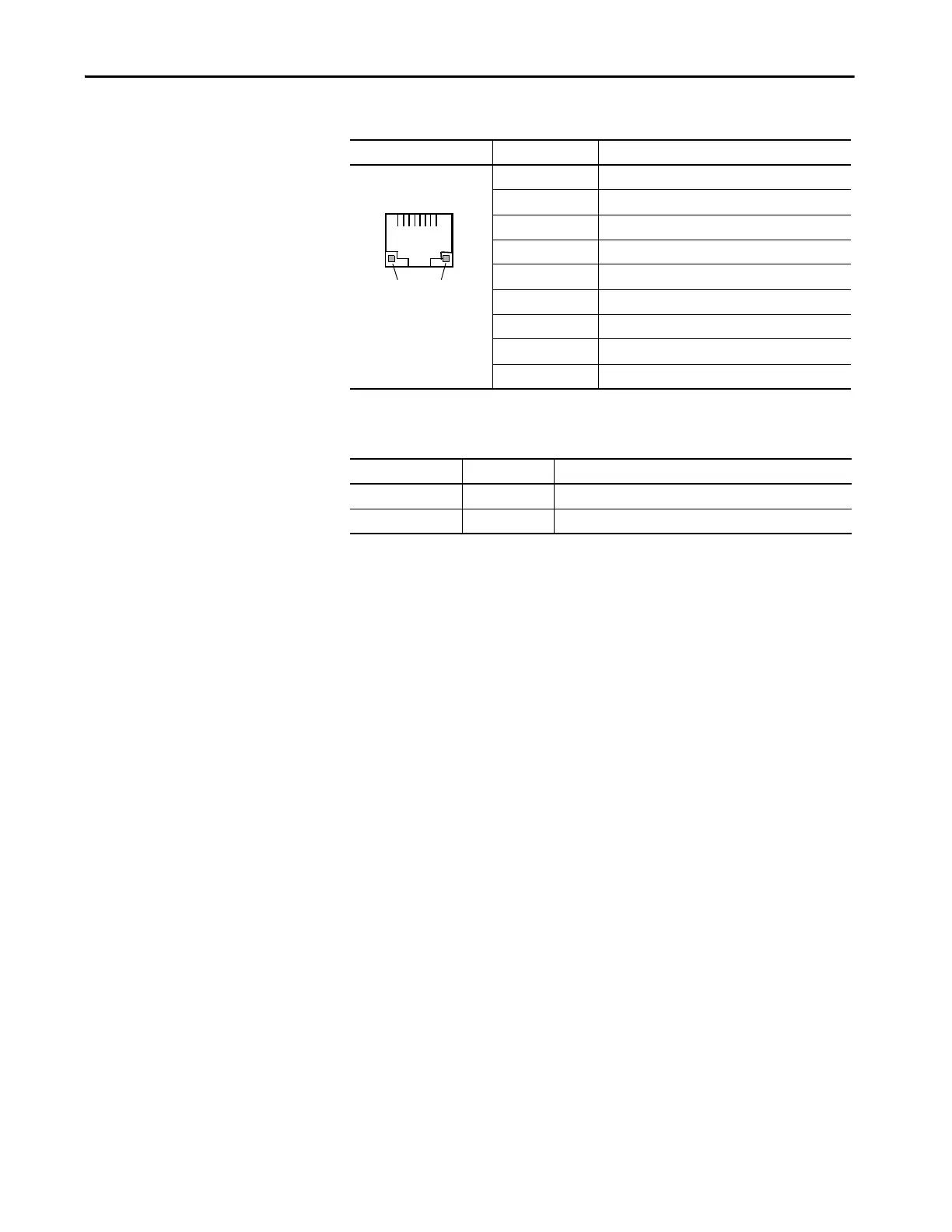

Table 17 - Ethernet Connector Pinout
Connector Pin Pin Name
View of RJ45
Connector
1TD+
2TD-
3RD+
4Unused
5Unused
6RD-
7Unused
8Unused
Shield Connection No direct connection (AC coupled to chassis GND)
Table 18 - Ethernet Status Indicators
Indicator Color Description
Link Integrity Green On when a link is present.
Activity Yellow Blinks when activity is detected on Ethernet link.
1
8
Yel lo w
Status
Indicator
Green
Status
Indicator
