Overview 1-11
Keypad or Keypad & Touch

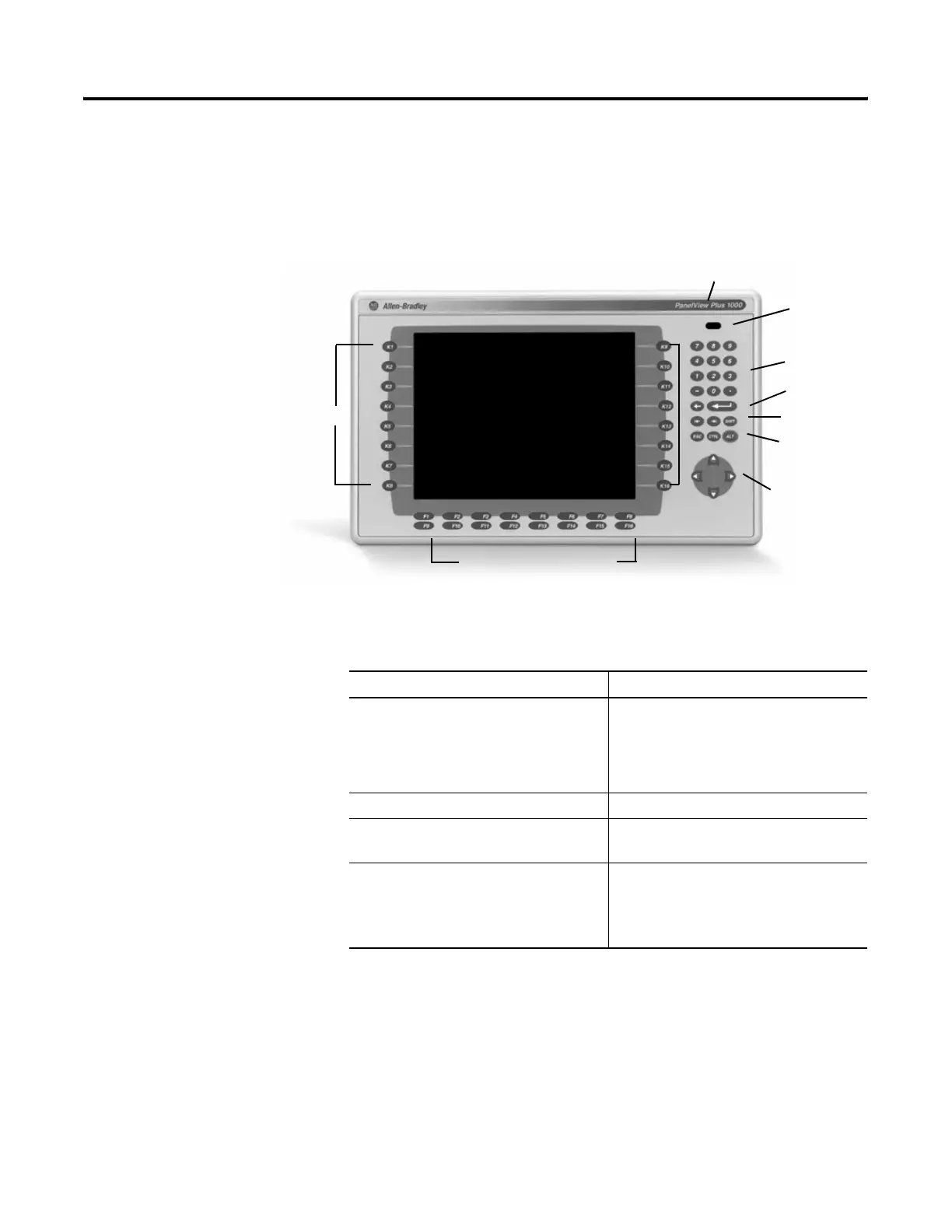

The illustration shows the features of the 1000 keypad or keypad &
touch display. All displays are similar except for size and the number
of function keys available.
The Kxx and Fxx function keys on the keypad terminals are
programmable.
Backspace
and Enter Key
IrDA Port
(if present)
Navigation Keys
Numeric Keypa
Programmable Function Keys
(optional custom legends)
Allen-Bradley Label
Tab, Shift Keys
Esc, CT, Alt Keys
Programmable Function Keys
(optional custom legends)
Feature Description
Function Keys
700 (F1-F10, K1-K12)
1000 (F1-F16, K1-K16)
1250 (F1-F20, K1-K20)
1500 (F1-F20, K1-K20)
Programmable keys that initiate functions
on terminal display. Replaceable legends
are available for the terminals allowing for
custom function key labels.
Label Allen-Bradley or customer applied label.
Numeric Keypad 0-9, ., -, Backspace, Enter, Left and Right
tab, Shift, Esc, Ctrl, Alt keys
Navigation Keys Use the arrow keys to move cursor in lists,
select objects,
Alt+arrow key activates home, end, page
up, page down functions.
