Publication 2711P-UM001D-EN-P - September 2005
Installation 2-13

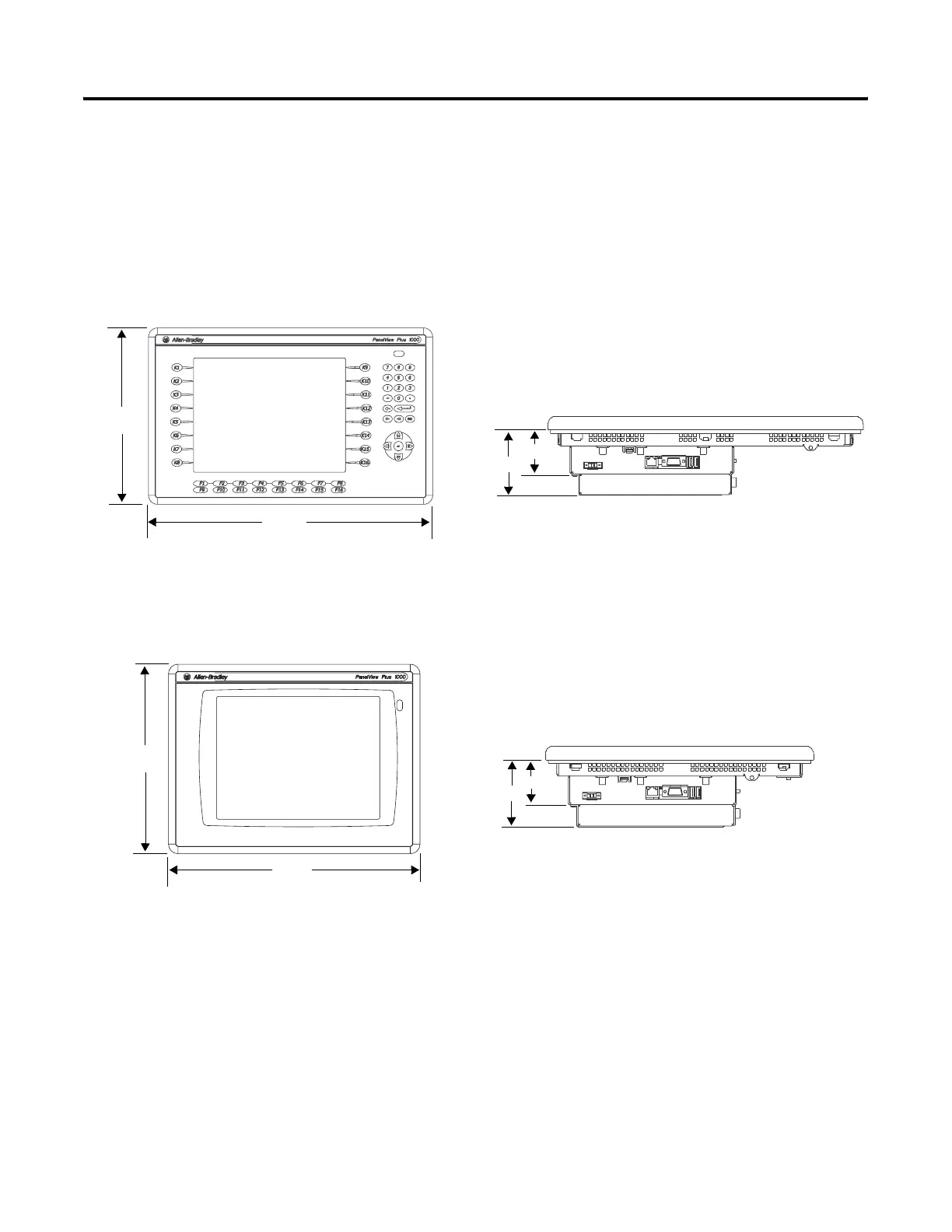

PanelView Plus 1000
The depth dimensions are shown for:
• Base configured unit (display module and logic module)
• Base configured unit with communication module
329
(12.97)
399
(15.72)
248
(9.77)
a 55 (2.18) Display to Logic Module
b 83 (3.27) Display to Communication Module
a 55 (2.18) Display to Logic Module
b 83 (3.27) Display to Communication Module
b
a
a
b
1000 Keypad or Keypad & Touch Terminal
1000 Touch Screen Terminal
248
(9.77)
