Rockwell Automation Allen-Bradley PanelView Plus Series User Manual

Publication 2711P-UM001D-EN-P - September 2005
2-14 Installation

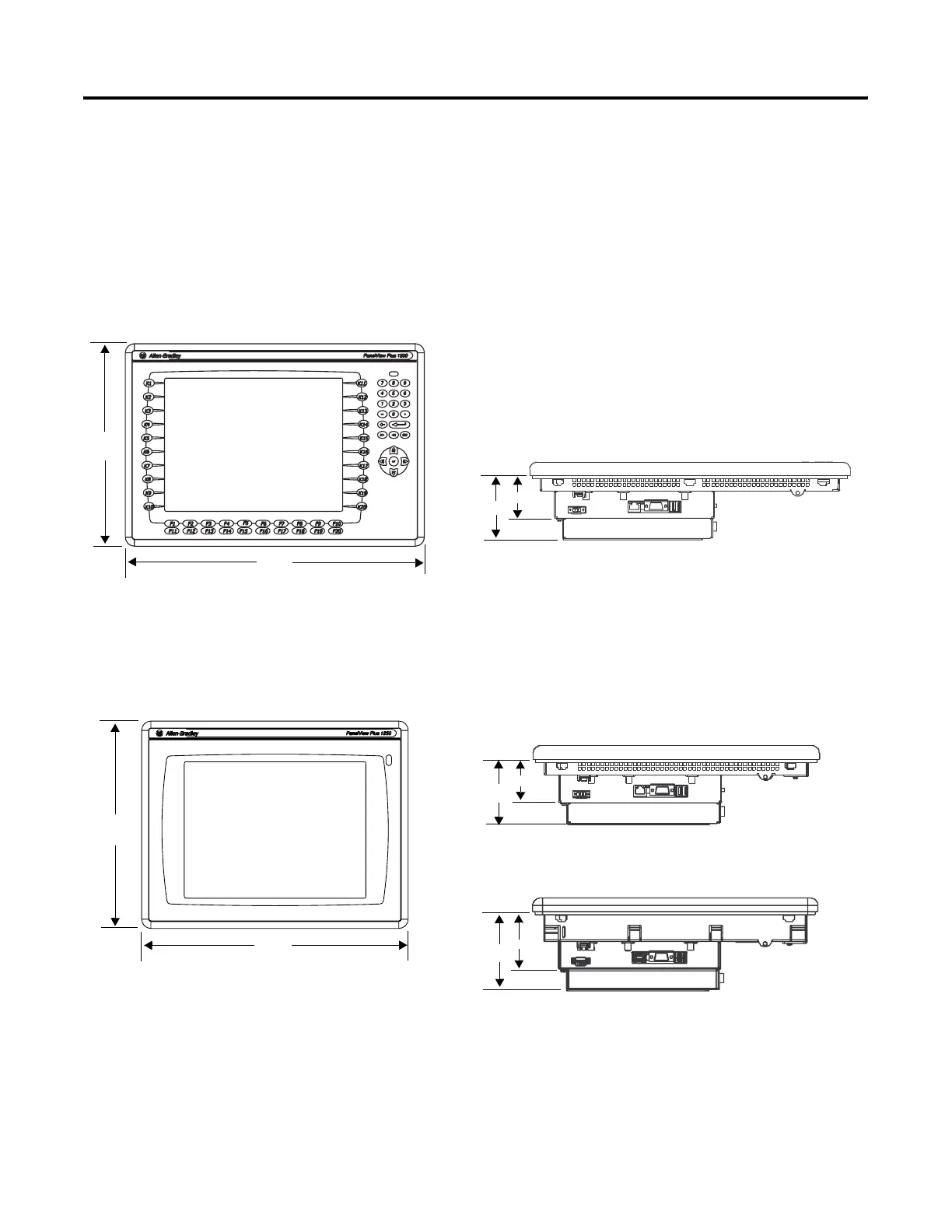

PanelView Plus 1250
The depth dimensions are shown for:
• Base configured unit (display module and logic module)
• Base configured unit with communication module
282
(11.12)
416
(16.36)
363
(14.30)
282
(11.12)
a 55 (2.18) Display to Logic Module
b 83 (3.27) Display to Communication Module
a 55 (2.18) Display to Logic Module
b 83 (3.27) Display to Communication Module
a
b
a
b
1250 Keypad or Keypad & Touch Terminal
1250 Touch Screen Terminal
a
b
a 74 (2.90) Display to Logic Module
b 101 (3.99) Display to Communication Module
1250 High-Bright
1250
