Rockwell Automation Allen-Bradley PanelView Plus Series User Manual

Publication 2711P-UM001D-EN-P - September 2005
Installation 2-15

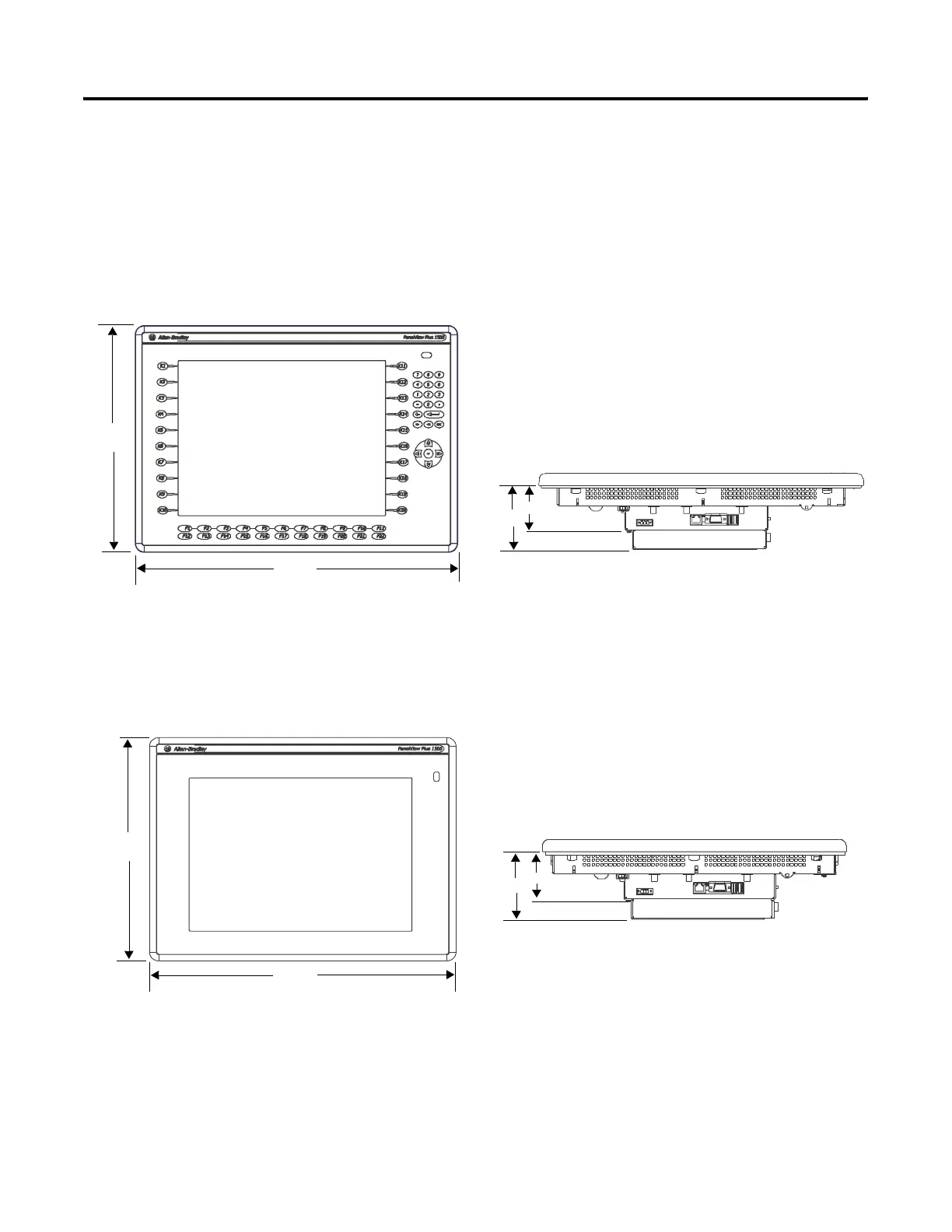

PanelView Plus 1500
The depth dimensions are shown for:
• Base configured unit (display module and logic module)
• Base configured unit with communication module
1500 Touch Screen Terminal
330
(12.97)
419
(18.46)
416
(16.37)
330
(12.97)
a 65 (2.55) Display to Logic Module
b 93 (3.65) Display to Communication Module
a 65 (2.55) Display to Logic Module
b 93 (3.65) Display to Communication Module
a
b
a
b
1500 Keypad or Keypad & Touch Terminal
