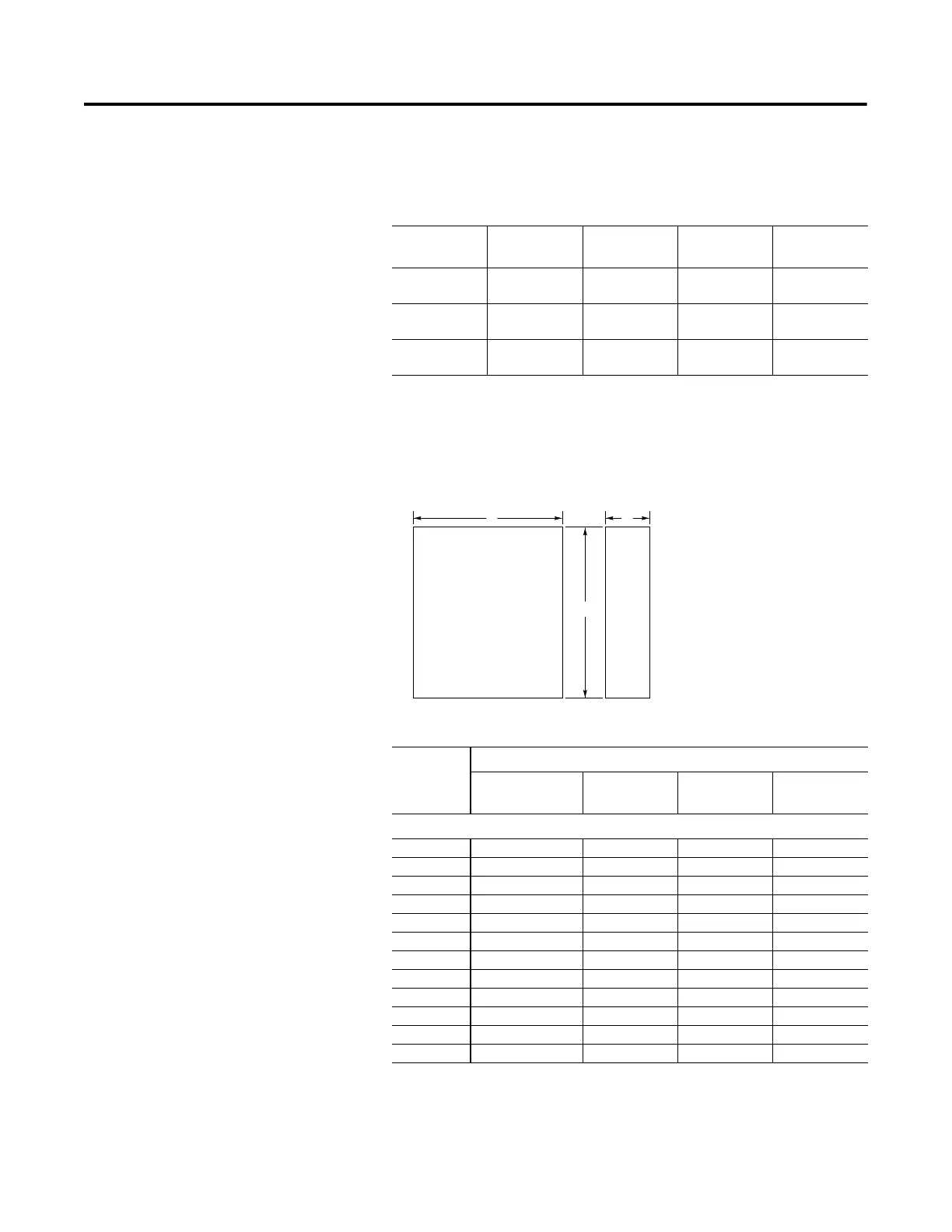

A-6 Specifications
Approximate Dimensions and
Shipping Weights
Open Type Controllers
Dimensions are in millimeters (inches). Dimensions are not intended
for manufacturing purposes.
Enclosed Type Line-Connected Controllers
Factory-installed options may affect enclosure size requirements.
Exact dimensions can be obtained after order entry. Consult your
local Allen-Bradley distributor.
Controller
Rating (A)
Height Width Depth Weight
5…85 321
(12.6)
150
(5.9)
203
(8.0)
5.7 kg
(12.6 lb.)
108…251 560
(22.05)
225
(8.86)
253.8
(9.99)
30.4 kg
(67 lb.)
317…480 600
(23.62)
290
(11.42)
276.5
(10.89)
45.8 kg
(101 lb.)
Controller
Rating (A)
IP65 (Type 4/12)
Disconnect Rating
(A)
B Height A Width C Depth
Non-Combination Controller
5 — 610 (24) 406 (16) 229 (9)
25 — 610 (24) 406 (16) 229 (9)
43 — 610 (24) 406 (16) 229 (9)
60 — 610 (24) 406 (16) 229 (9)
85 — 610 (24) 406 (16) 229 (9)
108 — 762 (30) 610 (24) 305 (12)
135 — 762 (30) 610 (24) 305 (12)
201 — 965 (38) 762 (30) 356 (14)
251 — 965 (38) 762 (30) 356 (14)
317 — 1295 (51) 914 (36) 356 (14)
361 — 1295 (51) 914 (36) 356 (14)
480 — 1295 (51) 914 (36) 356 (14)
AC
B
