Rockwell Automation Allen-Bradley SMC-Flex 150

3-8 Wiring
Standard Controller Wiring
Diagrams
Figure 3.7 through Figure 3.18 show typical wiring for the SMC-Flex
controller.

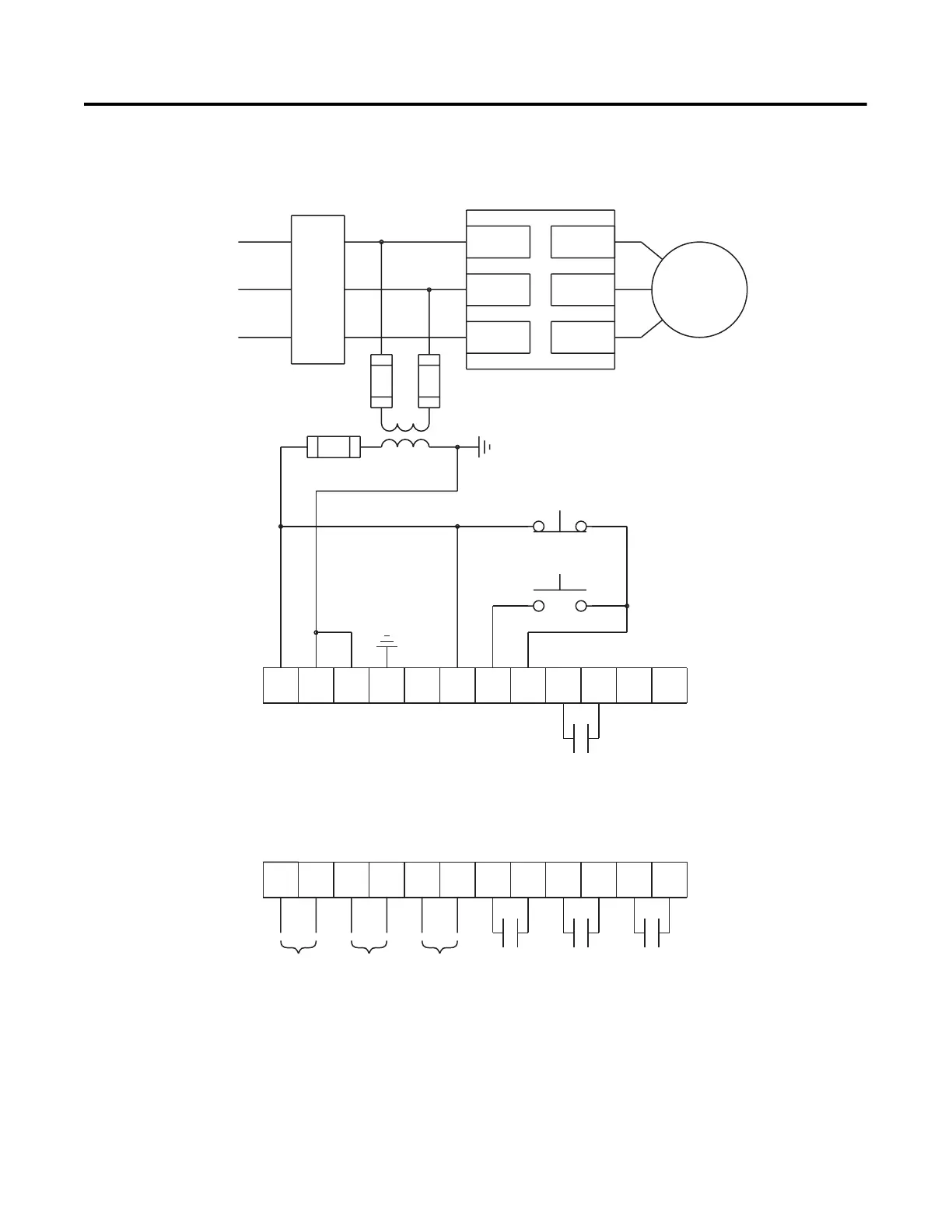

Figure 3.7 Typical Wiring Diagram for Standard Controller
➀
Customer supplied.
➁ Refer to the controller nameplate to verify the rating of the control power input voltage.
11 12
13
14
15 16
17
18 19 20
21
23
24
25 26
27
28 29
30 31 32 33
22
34
Stop
Start
L1/1
L3/5
L2/3
T3/6
T2/4
T1/2
M
3-Phase
Input Power
Branch
Protection
SMC-Flex
Controller
Alarm
Contact
Fault
Contact
Aux #2
Normal
Aux #1
Normal/Up-to-Speed/
Bypass
SMC-Flex
Control Terminals
PTC
Input
TACH
Input
Ground
Fault
➀
➀
➀
➀
➀
➀
➁
➀
