3-2 Wiring

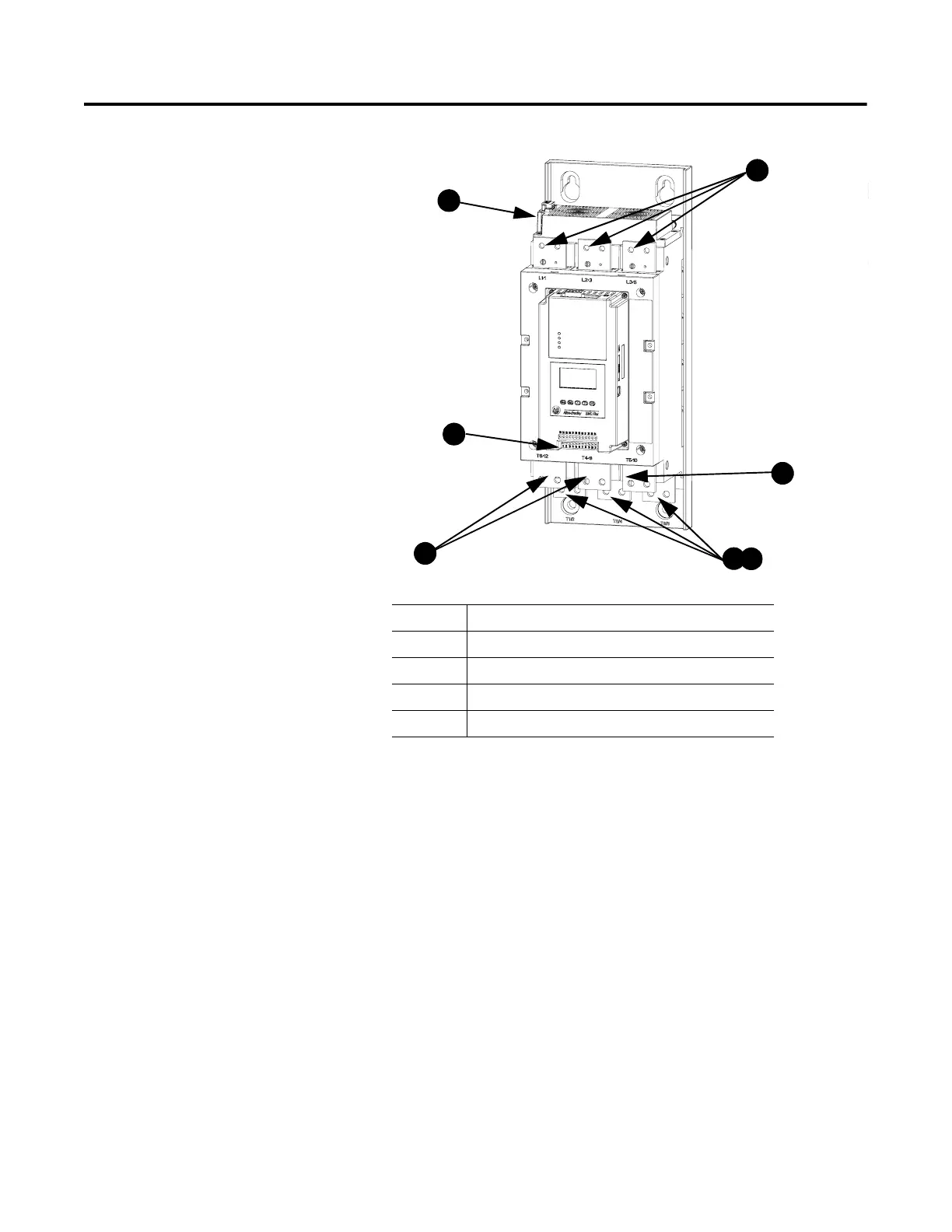

Figure 3.2 Wiring Terminal Locations (108…480 A)
Power Structure The SMC-Flex product has an integrated mechanical run contactor on
each phase of the motor to minimize heat generation during run time.
These contacts are pulled in sequentially in the 108…480 A units. In
the 5…85 A units, these contacts are pulled in, all at once. The
SMC-Flex product also has a CT, built in on each phase of the motor
to provide current readings.
4
1
5
3
2
3
3
Table 3.A Wiring Terminal Locations
1 Incoming Line Termination
2 Line Motor Connections
3 Delta Motor Connections
4 Control Terminations
5 Fan Terminations
