Rockwell Automation Allen-Bradley SMC-Flex 150

3-16 Wiring

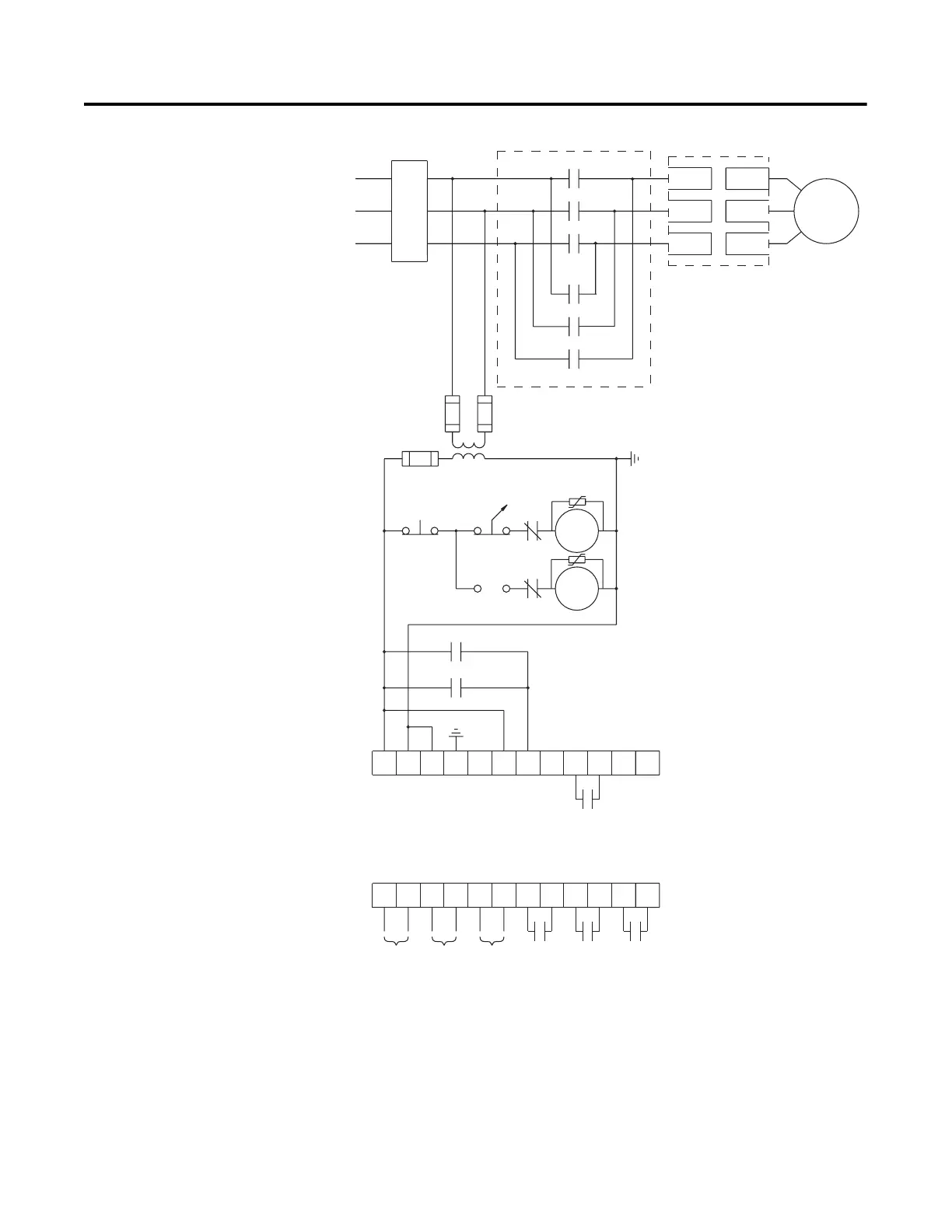

Figure 3.15 Typical Wiring Diagram for Single-Speed Reversing Applications
➀
Customer supplied.
➁ Refer to the controller nameplate to verify the rating of the control power input rating.
➂ No braking manuever allowed in wiring diagram.
Notes: (1) Minimum transition time for reversing direction is 1/2 second.
(2) Phase Reversal protection must be disabled in reversing applications.
11 12
13
14
15 16
17
18 19 20
21
23
24
25 26
27
28 29
30 31 32 33
22
34
SMC-Flex
Control Terminals
L1/1
L3/5
L2/3
T3/6
T2/4
T1/2
M
3-Phase
Input Power
Branch
Protection
SMC-Flex
Controller
R
F
R
F
F
R
OFF
FOR REV
Stop
Reversing Contactors
F
R
Alarm
Contact
Fault
Contact
Aux #2
Normal
Aux #1
Normal/Up-to-Speed/
Bypass
PTC
Input
TACH
Input
Ground
Fault
➀
➀
➀
➀➀
➀
➀
➀
➀
➀
➀
➀
➀
➁
