Rockwell Automation Publication 6300B-UM001A-EN-P - July 2020 13
Chapter 2 Install the Box PC or Box Thin Client
Mounting Requirements
Follow these requirements to mount the box PC or thin client.
• Choose a suitable mounting height

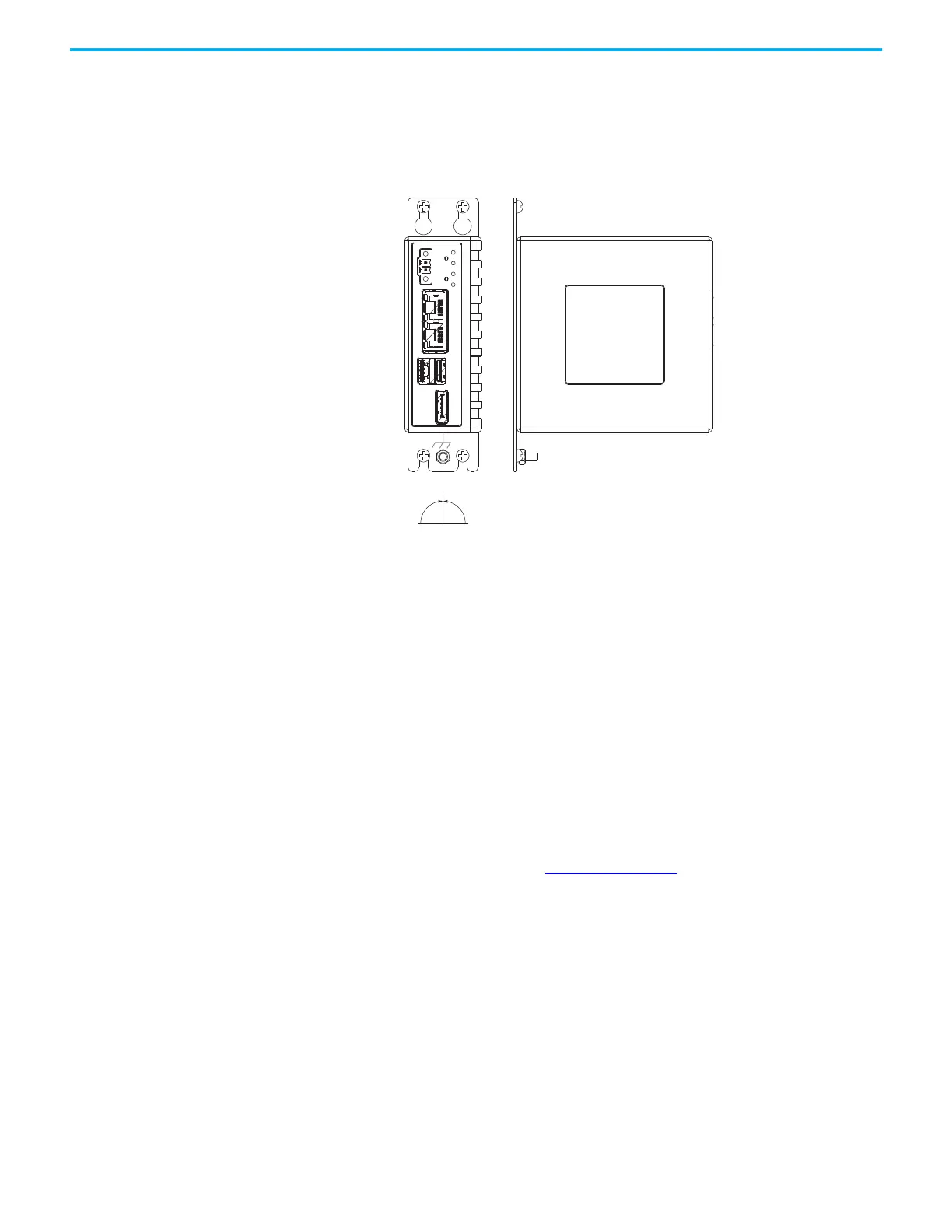

• Only mount the computer in a horizontal orientation and vertical
(upright) position for the following:
- Mount the factory-installed bracket so the I/O ports face forward
and the ground screw is at the bottom
• Mount the computer so there is at least 20 mm (0.8 in.) of clearance on
each side for the circulation necessary for cooling
Required Tools and
Hardware for Installation
The following tools and hardware are needed for book mount installations.
• Drill and drill bit
• 2.5 mm Phillips screwdriver
• Four M4x20 stainless steel screws (customer supplied)
• Safety glasses
Install the Box PC or
Box Thin Client
VersaView 6300B box PCs and VersaView 6300T thin clients are shipped with
book mount brackets that are factory-installed.
To mount the computer, perform the following steps.
1. Use the dimensions in Figure 1 on page 10
to locate and drill holes for
the four M4x20 stainless steel screws.
2. Install the four customer-supplied screws but leave enough space to
hang the brackets.
3. Align the keyhole slots on the top bracket with the top two screws.
4. Align the slots on the bottom bracket with the bottom two screws.
5. Slide the computer downward until all four screws are at the top of each
bracket slot.
6. Tighten the four screws.
