Rockwell Automation B Series User Manual

186 Rockwell Automation Publication 520-UM001I-EN-E - July 2016
Appendix B Accessories and Dimensions

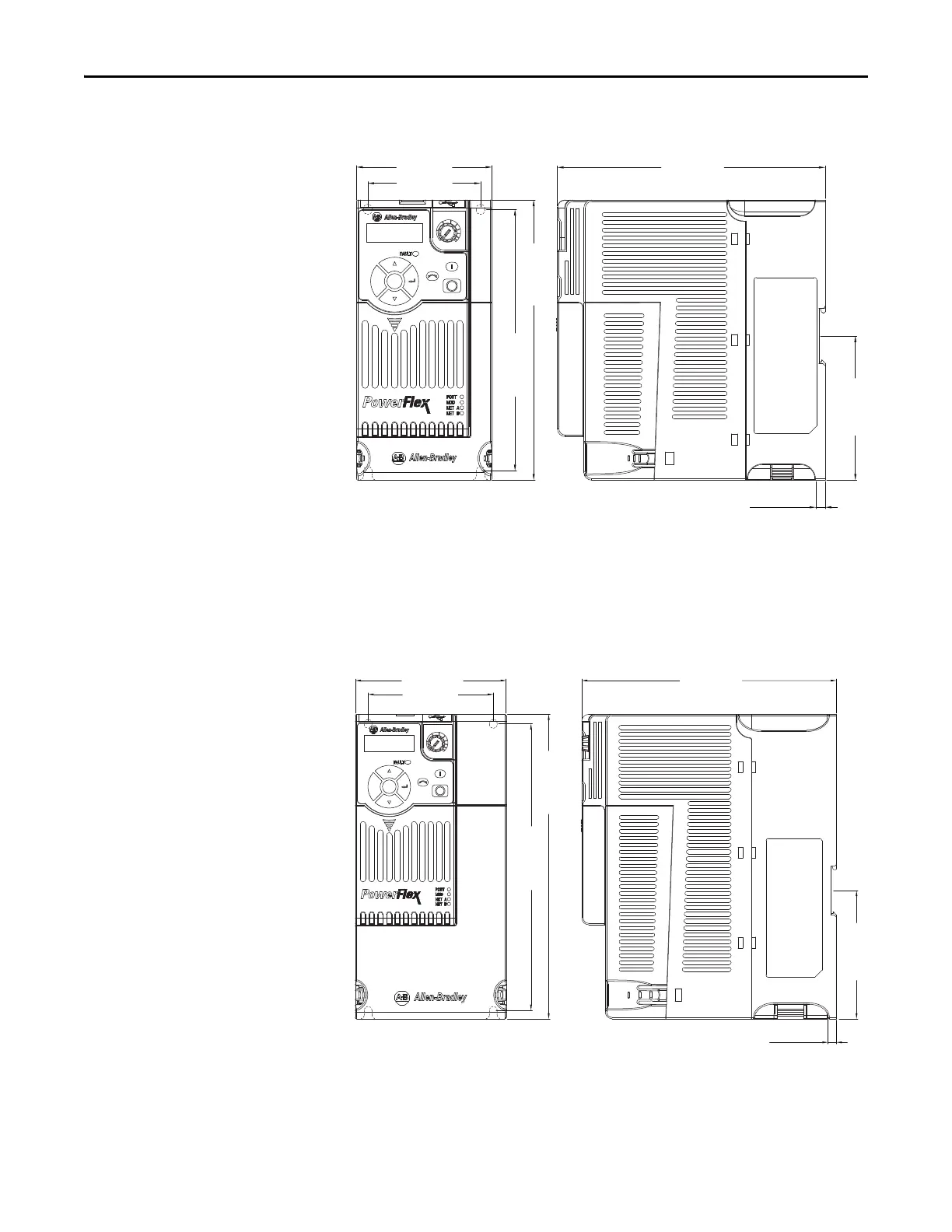

IP 20/Open Type – Frame B
IP 20/Open Type – Frame C
Esc
Sel
87.0 (3.43)
172.0 (6.77)
72.5 (2.85)
6.0 (0.24)
180.0 (7.09)
92.7 (3.65)
168.0 (6.61)
Dimensions are in millimeters and (inches)
Esc
Sel
109.0 (4.29)
90.5 (3.56)
220.0 (8.66)
207.0 (8.15)
184.0 (7.24)
6.0 (0.24)
92.7 (3.65)
Dimensions are in millimeters and (inches)
