Rockwell Automation B Series User Manual

Rockwell Automation Publication 520-UM001I-EN-E - July 2016 187
Accessories and Dimensions Appendix B

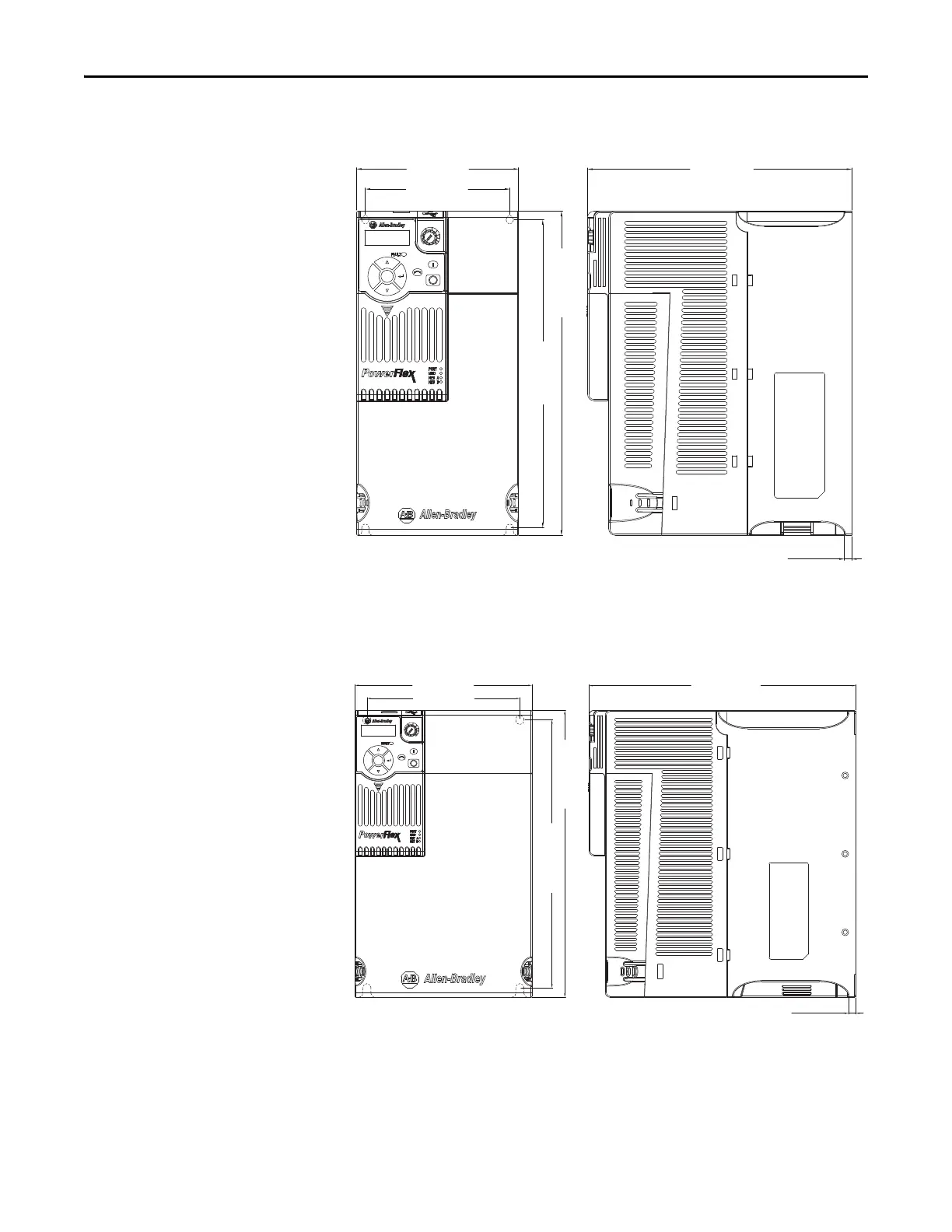

IP 20/Open Type – Frame D
IP 20/Open Type – Frame E
130.0 (5.12)
260.0 (10.24)
247.0 (9.72)
116.0 (4.57)
212.0 (8.35)
6.0 (0.24)
Esc
Sel
Dimensions are in millimeters and (inches)
Esc
Sel
185.0 (7.28)
160.0 (6.30)
300.0 (11.81)
280.0 (11.02)
279.0 (10.98)
7.6 (0.30)
Dimensions are in millimeters and (inches)
