Chapter 1 Store and Load a Project By Using a
Memory Card
Rockwell Automation Publication 1756-PM017J-EN-P - March 2022 21
Follow these steps to remove a project from a memory card.
1. Go online with the controller.

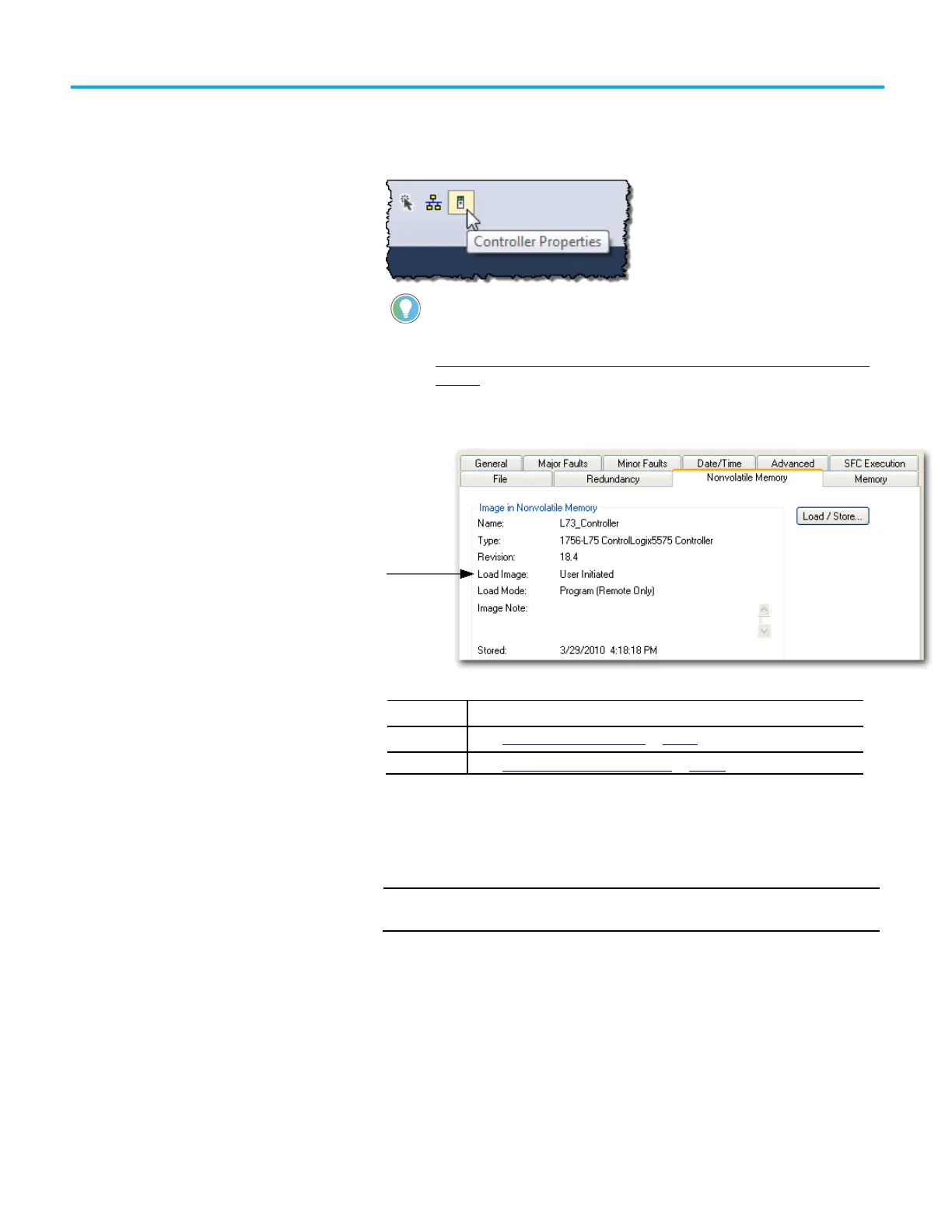

2. On the Online toolbar, select the Controller Properties icon.
Tip: For 1756-L7x controllers only,
Energy Storage
instead of
Battery OK
appears adjacent to
the controller properties icon. Refer to the
ControlLogix System User Manual
, publication
1756-UM001 available at
http://literature.rockwellautomation.com/idc/groups/literature/documents/um/1756-um001_
-en-p.pdf, for information on the Energy Storage Module.
3. On the Control Properties dialog box, select the Nonvolatile Memory
tab.
4. Is Load Image set to User Initiated?
No Go to "Change the Load Image Option on page 21."
Go to "Clear the Project from the Controller on page 22."
1. On the Nonvolatile Memory tab, select Load/Store.
2. From the Load Image list, choose User Initiated.
3. Select <- Store.
Store is not active if a SD card is locked.
A dialog box asks you to confirm the store operation.
4. To store the project, select Yes.
A dialog box indicates the store operation is in progress.
5. Select OK.
Wait until the OK status indicator on the front of the controller is
steady green.
This indicates the store operation is finished.
Image Option
To Next Page
