Rockwell Automation PowerFlex 40 Installation Instructions

Publication 23B-IN001G

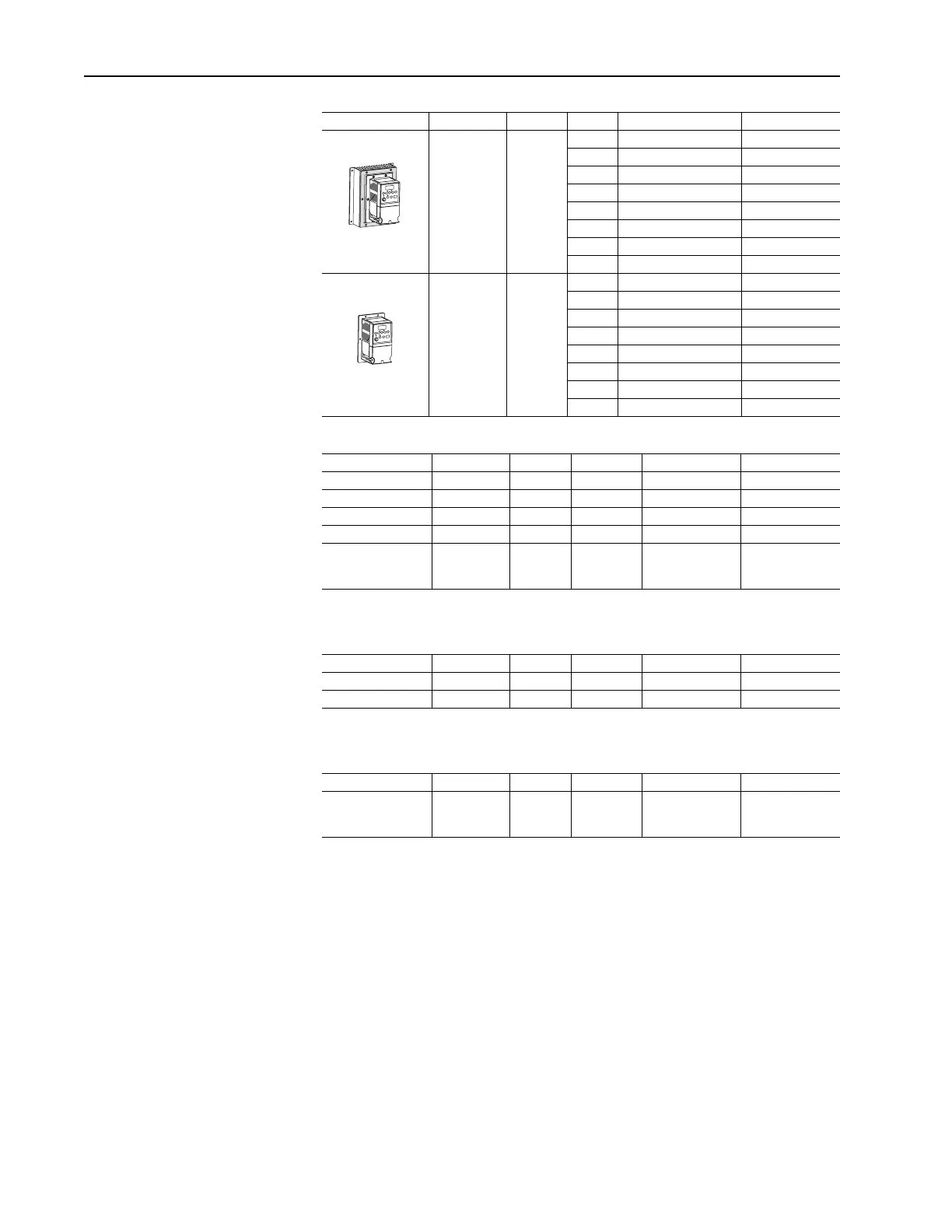

B-2 Replacement Parts
Table B.A Components (Continued)
Table B.B Communication Options
Table B.C Quick Disconnect Options
Table B.D HIM Options
Description Designation Voltage HP Part Number Manufacturer
Drive Module
(with Heatsink)
EA1 480V AC 0.5 22B-D1P4F104 Allen-Bradley
1.0 22B-D2P3F104 Allen-Bradley
2.0 22B-D4P0F104 Allen-Bradley
3.0 22B-D6P0F104 Allen-Bradley
5.0 22B-D010F104 Allen-Bradley
7.5 22B-D012F104 Allen-Bradley
10 22B-D017F104 Allen-Bradley
15 22B-D024F104 Allen-Bradley
Drive Module
(Plate Drive)
EA1 480V AC 0.5 22B-D1P4H204 Allen-Bradley
1.0 22B-D2P3H204 Allen-Bradley
2.0 22B-D4P0H204 Allen-Bradley
3.0 22B-D6P0H204 Allen-Bradley
5.0 22B-D010H204 Allen-Bradley
7.5 22B-D012H104 Allen-Bradley
10 22B-D017H104 Allen-Bradley
15 22B-D024H104 Allen-Bradley
Description Designation Voltage HP Part Number Manufacturer
ControlNet EA1 All All 22-COMM-C Allen-Bradley
DeviceNet EA1 All All 22-COMM-D Allen-Bradley
EtherNet EA1 All All 22-COMM-E Allen-Bradley
PROFIBUS EA1 All All 22-COMM-P Allen-Bradley
Adaptor
Frame B
Frame C
EA1
EA1
All
All
0.5-5.0
7.5-15
22B-CCB
22B-CCC
Allen-Bradley
Allen-Bradley
Description Designation Voltage HP Part Number Manufacturer
DeviceNet - Bottom E22 All All 41358N Brad Harrison
DeviceNet - L Side E23 All All 41358N Brad Harrison
Description Designation Voltage HP Part Number Manufacturer
Door Mounted
IP 66 (NEMA/UL
Type
All All 22-HIM-C2S Allen-Bradley
