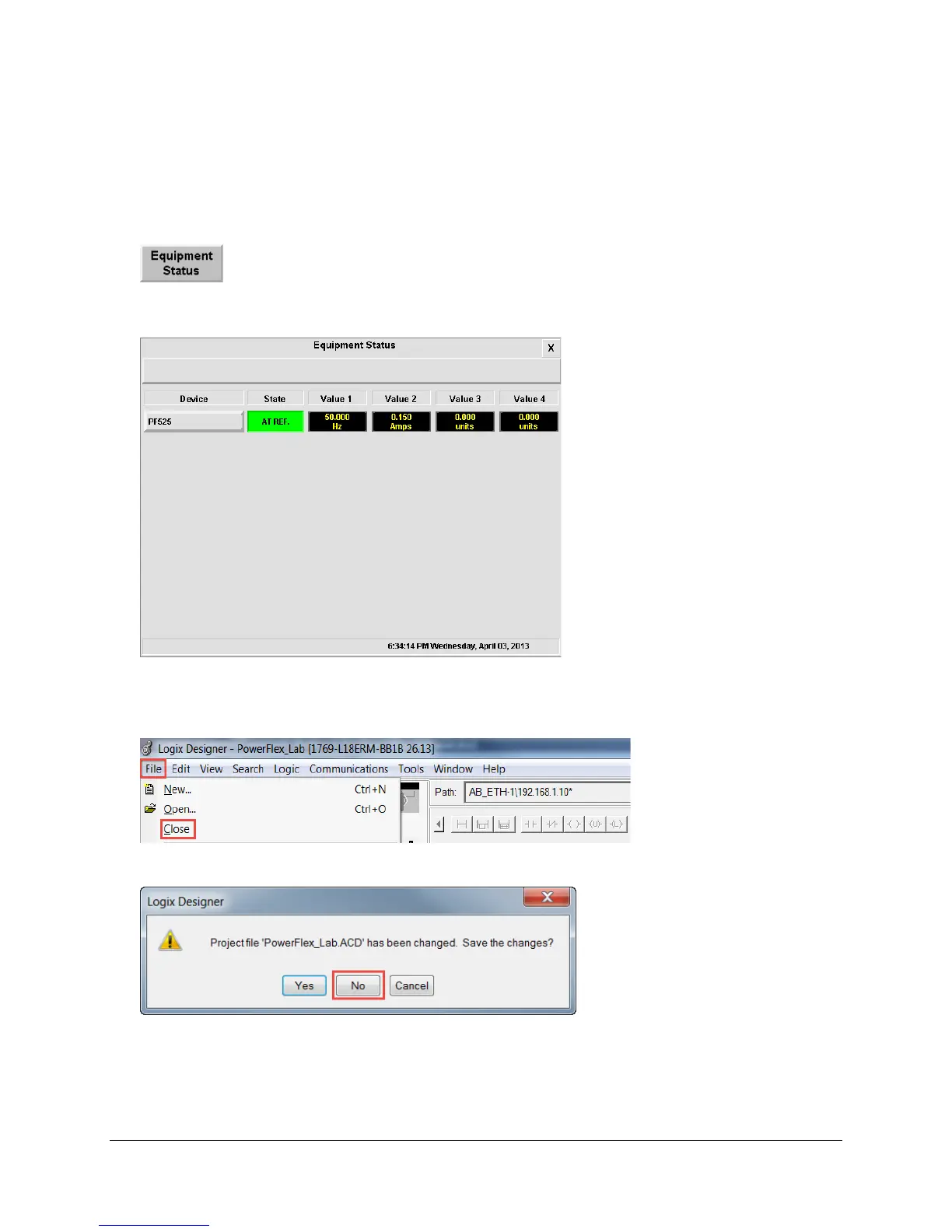

The Equipment Status Faceplate
The Equipment Status faceplate lets you quickly load and configure a summary display of preconfigured status and diagnostic
displays (faceplates). The Equipment Status faceplate works in conjunction with individual device faceplates and provides a
single summary display of all the devices that may be configured for an application.
1. Press the “Equipment Status” button on the Startup screen to open the faceplate.
You can configure up to nine device faceplates to run with the Equipment Status screen and each device faceplate can be
launched directly from it by clicking on the device name.
2. When you are done with the Equipment Status faceplate, close it by pressing the [X] in the top-right corner.
3. Switch back to Studio 5000 software. From the “File” menu, select “Close” to exit the current project.
4. If you are prompted to save the changes to the program, click the No” button.
If time permits, continue to the next lab section.
