Rockwell Automation PowerFlex 755 - Downloading the Project

94 of 136
Downloading the Project

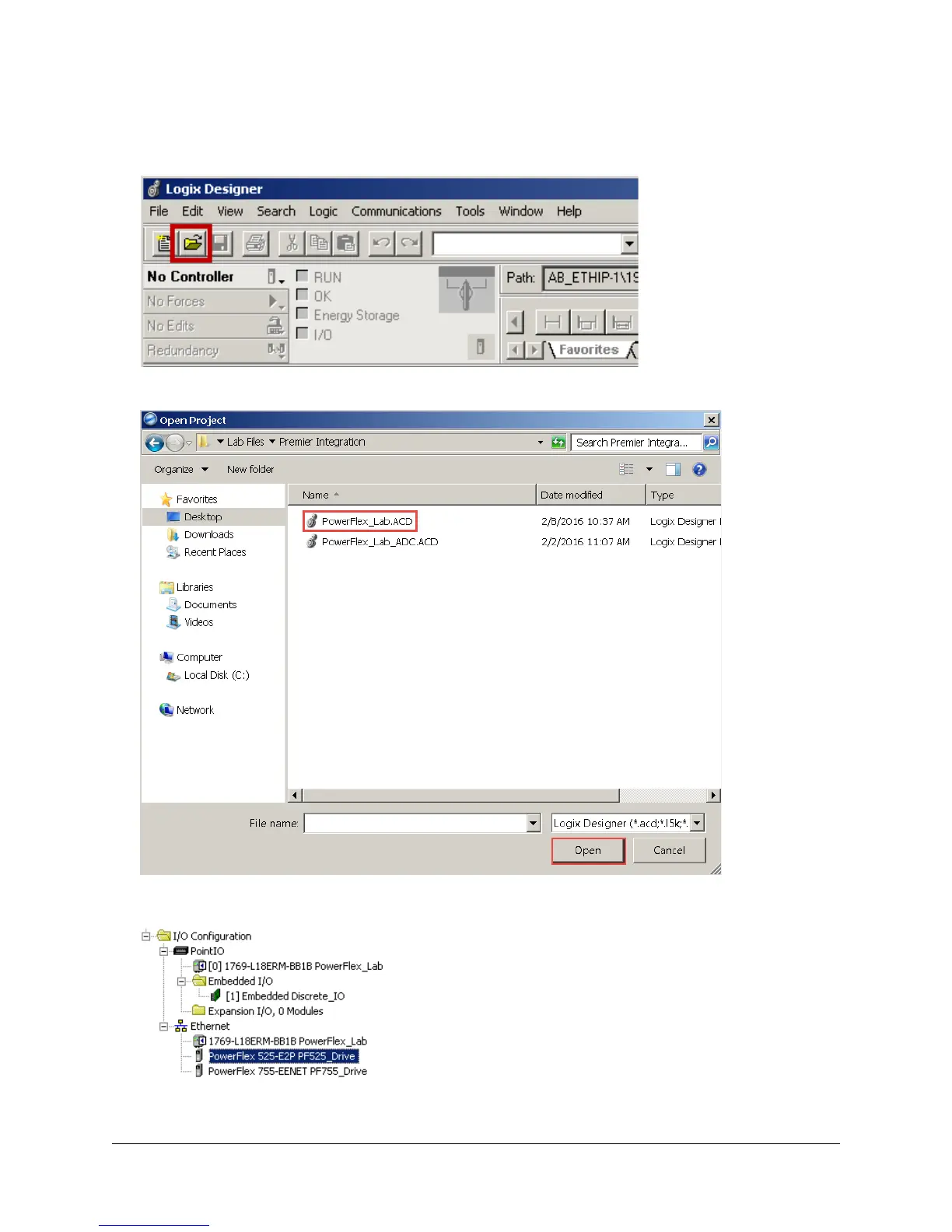

1. Open the PowerFlex_Lab project. Click the “Open” icon illustrated below.
2. Select the “PowerFlex_Lab.ACD” file and click the “Open” button.
3.
Open the drive Module Properties window by double-clicking on the “PowerFlex 525-E2P PF525_Drive”
node in the I/O Configuration folder.
The Module Properties window will appear.
