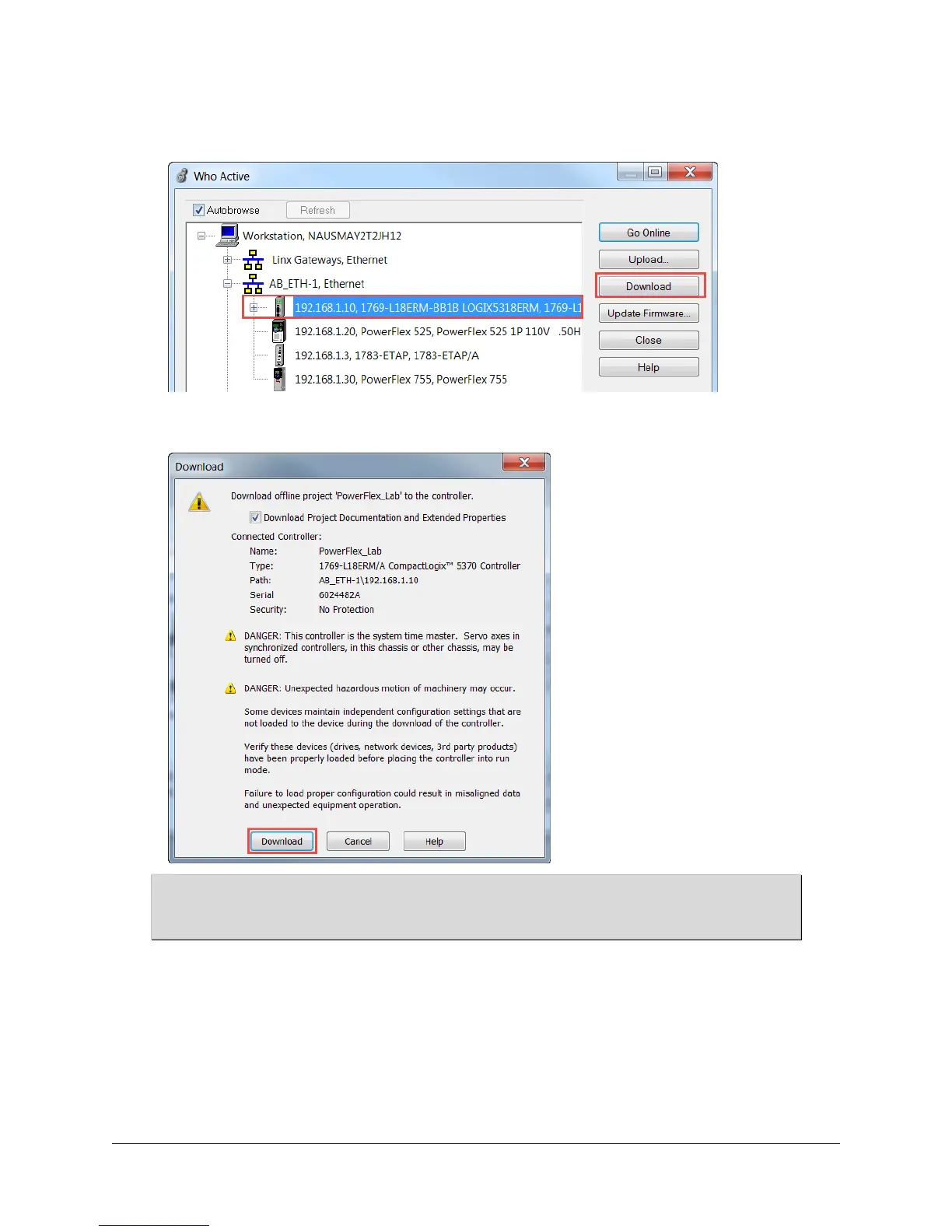

11. Verify that the node labeled “192.168.1.10, 1769-L18ERM LOGIX5318ERM” via the AB_ETH-1 Ethernet
driver is selected and click the “Download” button.
The Download window will appear.
12. When the confirmation window appears, click the “Download” button again.
If you reach this step in the lab but do not end up completing the entire ADC exercise, please notify an
instructor as you leave so that the controller may be reset for the next session.
