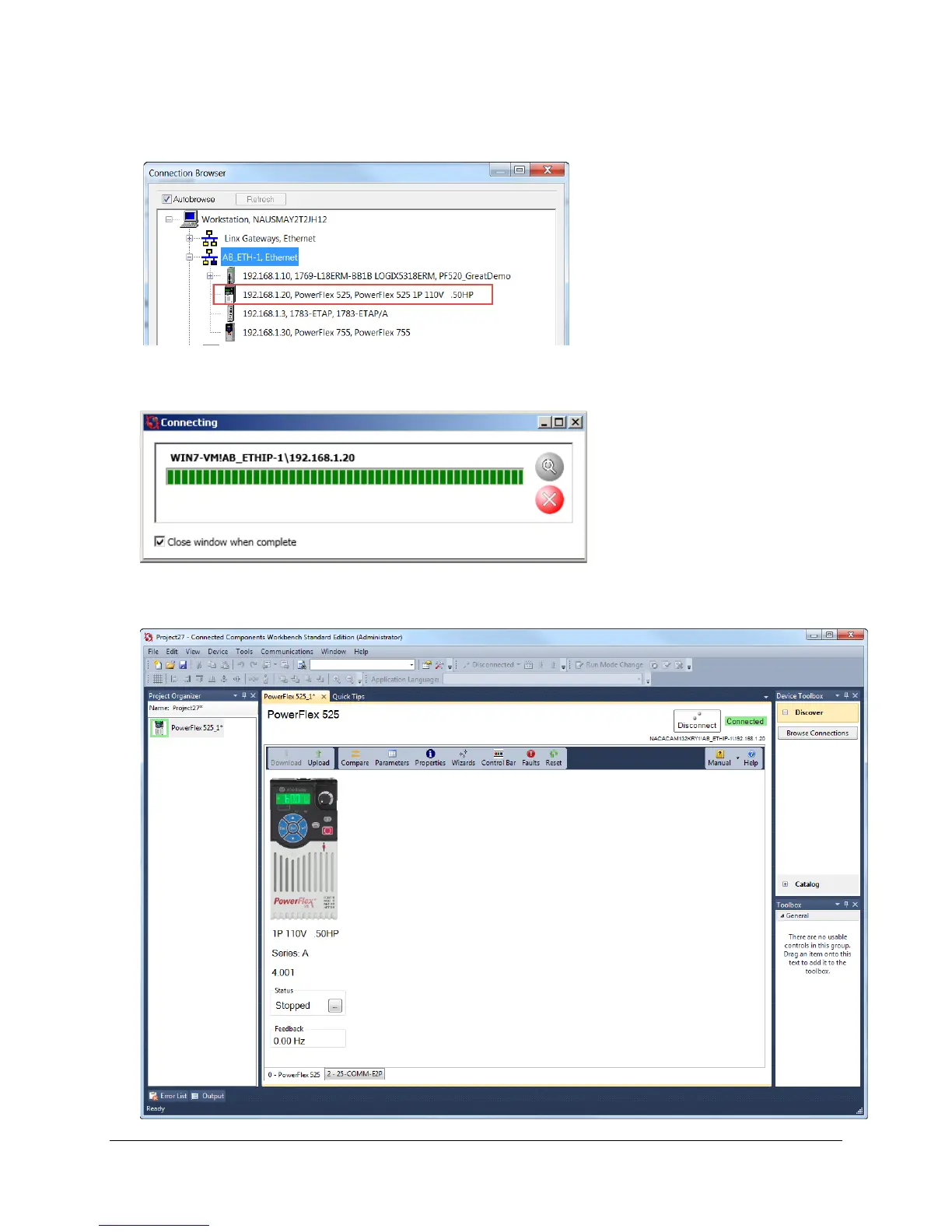

5. The lab’s preconfigured RSLinx driver will appear. Click on the [+] to expand the topic AB_ETH-1,
Ethernet. Click to highlight the “192.168.1.20, PowerFlex 525 1P 110V .50HP” device.
6. Press the “OK” button to initiate the connection process. For a quick moment, you might see a connection
status window.
Otherwise, once the connection process is complete, you will see the following main screen with a green highlighted
“Connected” for the PowerFlex 525 drive within the Connected Components Workbench software.
