Exploring Drive Parameters through Standard Parameter Groupings
1. Some useful tools for the PowerFlex 525 drive are included in the Connected Components Workbench
software, as shown below.
Take some time to explore them.

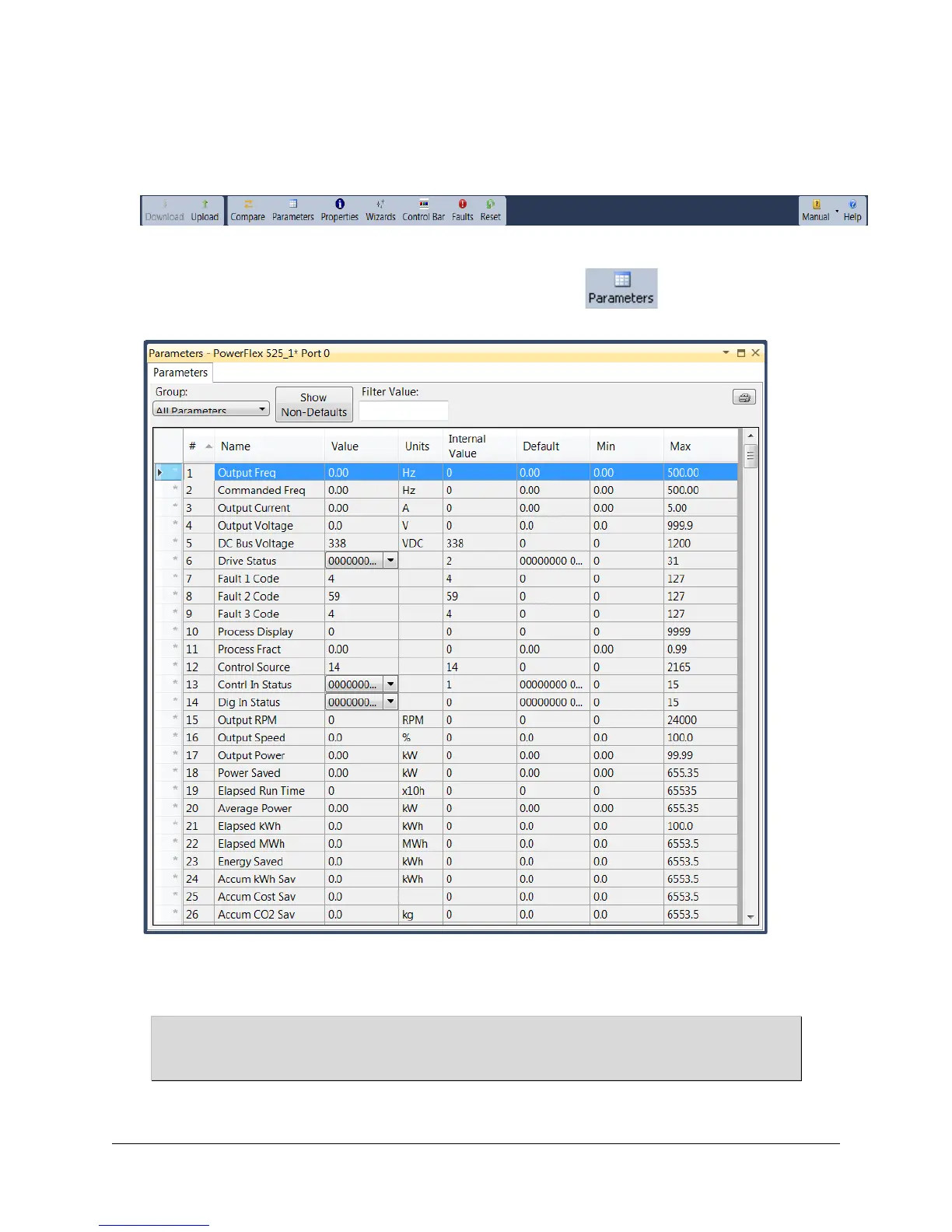

2. Select the ‘0 - PowerFlex 525’ tab, then click on the “Parameters” icon to view the PowerFlex
525 drive parameters as seen below.
The PowerFlex 525 drive Add-On Profile has a time saving feature with Connected Components Workbench software that
will show the non-default parameters. This makes it easy for users to view which parameters were changed from their
default setting.
This button only updates the set of parameters shown based on the upload. When a parameter changes
from defaults after clicking the button, it won't be added to the list until the view is refreshed.
