Exploring Drive Parameters with AppView™ and CustomView™ Groupings
The PowerFlex 525 drive has several AppView groupings that are tailored for a specific application to make the drive startup and
commissioning simpler. This reduces guesswork about which parameters you need to change, and all of the drive parameters
for that application are all in one convenient location.

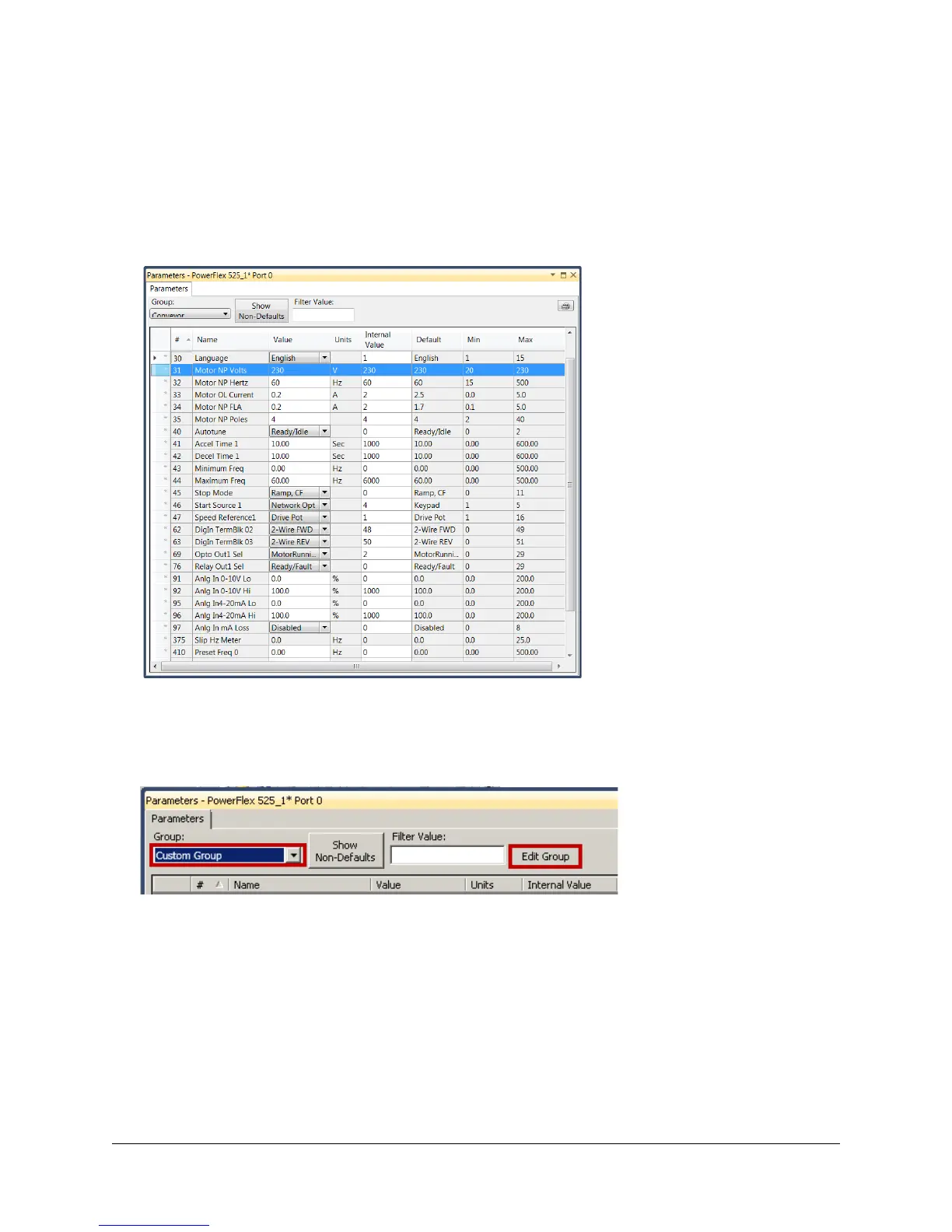

1. Within the Group dropdown selection box, select the AppView parameter group for “Conveyor”. Scroll
through these application specific parameters.
2. The PowerFlex 525 drive has a CustomView parameter group which is an application set that can be
customized specifically for your application. You can add up to 100 parameters and save the new
CustomView group. Select “Custom Group” from the Group dropdown selection box and click on the
“Edit Group” button.
3. The Edit Custom Group window will appear. Here you will be able to select and add parameters into a
nameable custom group. In this example, type in “ABC’s Group” in the Group Name box highlighted
below.
