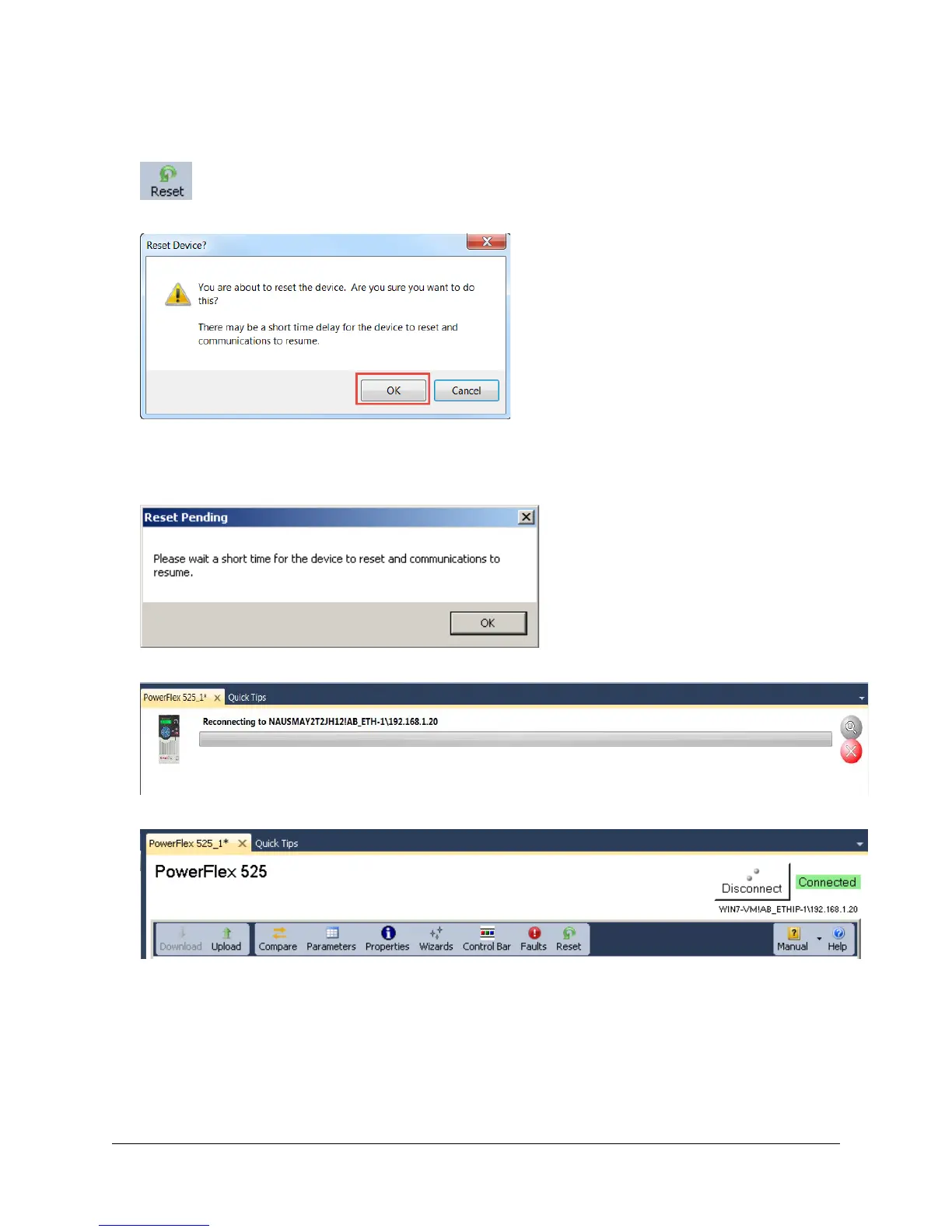

12. The main PowerFlex 525 drive window will be present. Click the “Reset” button for all of the new parameter settings
to take effect. Some settings require a drive reset to be implemented.
A window will appear confirming that you would like to reset the device.
Click the “OK” button. You will hear the PowerFlex 525 drive cycle power and the HIM Keypad display will turn off and
on before scrolling the drive information.
13.
The reset happens quickly. You may see the following screen appear If it does, click the “OK” button.
While the computer is reconnecting to the drive, your screen may show the following graphic for a moment.
After the connection has been established with the drive again, the window will return to its normal state.
14. Disconnect connection to the drive. You may be prompted to upload parameters from the drive or to save the project
when exiting the Connected Components Workbench software. Select the “No” button for each.
15. The configuration of the PowerFlex 525 is complete. At this point, we will be using the startup settings to run the motor.
16. Keeping in mind that you now control the drive from two sources: the push buttons and potentiometer of the drive, and
the selector switches; attempt to run the drive.
