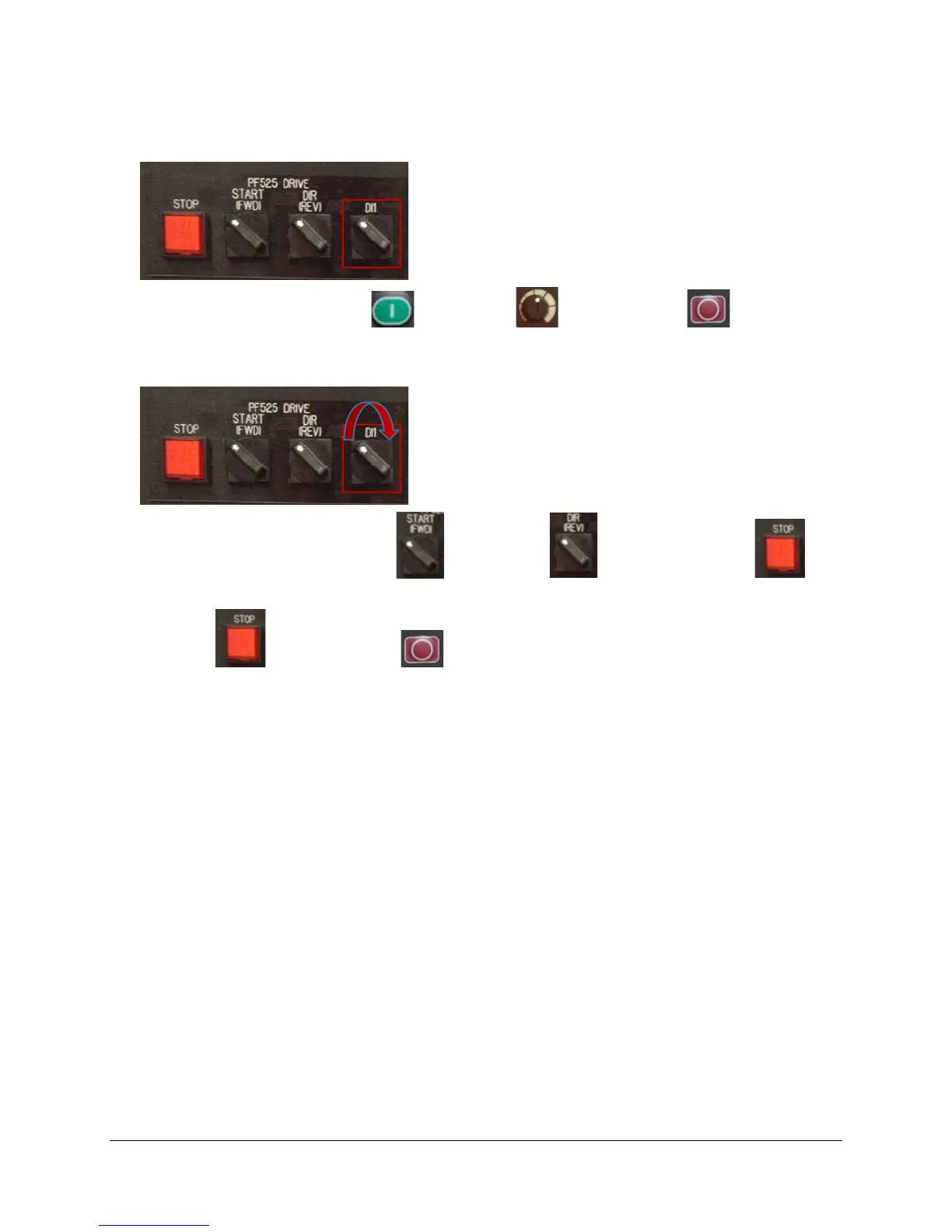

17. You should start with the selector switches in the following position: DI1 in this position will select the drive Keypad to
control the drive.
18. With the buttons on the PF525: use to start the drive, varies the speed, and stops the drive.
19. Move selector switch DI1 to the right position to enable Start Source 2, previously configured to use the PF525 DRIVE
demo box switches.
20. With the PF525 DRIVE switches; toggle to start the drive, reverses the direction and . To
stop the drive. The Keypad Speed Pot still controls the speed.
21. Use the push button or Keypad to stop the drive.
